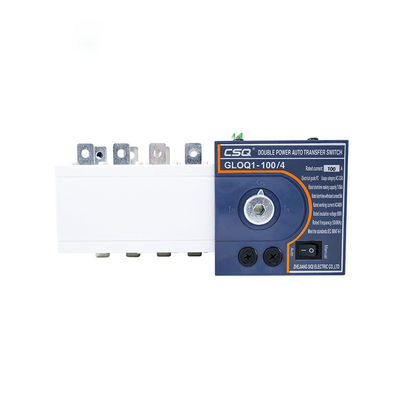

Household 2P 3P 4P 100A 35mm Installation Ats Power Automatic Transfer Switch
Product Details
| Product Name: | ATS Dual Power Automatic Transfer Switch | Max. Voltage: | 400V |
|---|---|---|---|
| Max. Current: | 100A | Rated Voltage: | 220V/380400V |
| Color: | White | Pole: | 2P 3P 4P |
| Frequency: | AC 50 Hz/60Hz | Standard: | CE/CCC |
| Switch Time: | <30ms | ||
| Highlight |
100A ats power automatic transfer switch,3P ats power automatic transfer switch,ats power automatic transfer switch |
||
Product Description
Household Automatic Transfer Switch Dual-Power 2P 3P 4P 100A 35mm Installation
General FMPC series dual power automatic transfer switch is new developed professional circuit / wire protection equipment.With this protection device, when the household circuit is short-circuited, the automatic disconnection function can be quickly provided.The contactor is sensitive and the carrying capacity is stronger. The outer casing and parts are made of high flame retardant, impact resistant plastic and have a long service life.
Uses: Mainly used for housing and similar architectural lighting, wire and equipment overload and short circuit protection ,Can be widely used in electric power, post and telecommunications, transportation, mining and other fields.
| Rated Current(Ith) | 20A | 40A | 60A | 80A | 100A | 125A | 160A | 250A | 400A | 630A | 800A | 1000A | 1250A | 1600A | |
| Rated insulation voltage(Ui) | 750V | 1000V | |||||||||||||
| Rated concussion withstand voltage(Uimp) | 8KV | 12KV | |||||||||||||
| Rated working voltage(Ue) | AC440V | ||||||||||||||
| Rated working current(Ie) | AC-31A | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| AC-35A | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | |
| AC-33A | 20 | 40 | 63 | 80 | 100 | 125 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | |
| Rated connection capacity | 10le | ||||||||||||||
| Rated breaking capacity | 8le | ||||||||||||||
| Rated limited short-circuit current(ls) | 50kA | 70kA | 100kA | 120kA | |||||||||||
| Rated short-time withstand current(ls) | 7kA | 9kA | 13kA | 26kA | 50kA | ||||||||||
| Transfer I-II or II-I | 0.45s | 0.6s | 1.2s | ||||||||||||
