Home 32A 3 Pole 4 Pole 3P 4P AC 220V 63A Ats Automatic Transfer Switch
Product Details
| Product Name: | Automatic Transfer Switch | Max. Current: | 3200A |
|---|---|---|---|
| Max. Voltage: | 690V | Color: | White |
| Pole: | 2P,3P,4P | Frequency: | AC 50/60Hz |
| Standard: | IEC60947-6-1 | Control Power Voltage: | AC110V AC220V |
| Highlight |
220v ats automatic transfer switch,ats automatic transfer switch 63a,32a ats automatic transfer switch |
||
Product Description

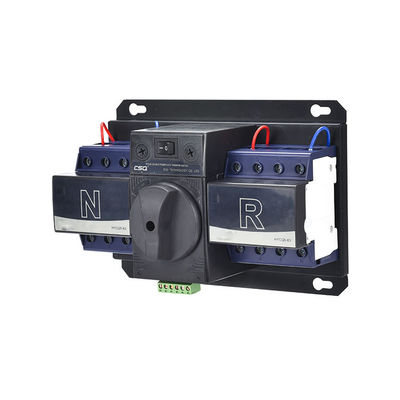

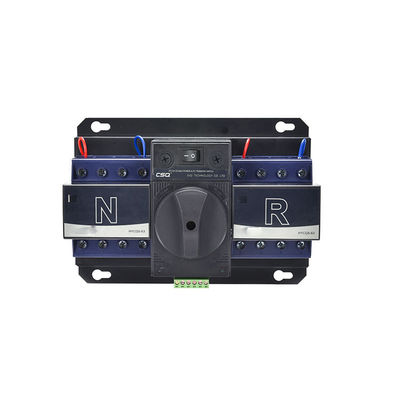

Home Use 32A 3Pole 4Pole 3P 4P ATS AC 220V Generator Control ATS Module Panels 63A
General
Home Use 32A ATS Module Panels is terminal type automatic transfer device. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits. The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage DC 220V, Rated current 16A-3200A.
Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. At the same time, it can operated under un-frequency on and off circuit act as disconnector.
Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building,etc, where doesn't allow power off.
| Rated Current Ie A | 6,10,16,20,25,32,40 | 50, 63 |
| Electrical Appliances Class | CB | |
| Use Category | AC~33B | |
| Tripping Current | 5~10In (Type C), 10~15In (Type D), | |
| Rated voltage Ue | 220V (2P),380V (3P or 4P) | |
| Rated frequency | 50/60Hz | |
| Rated short circuit connecting ability Icm (Peak) | 9.18KA | 6.615KA |
| Rated short circuit breaking ability Icn (effective value) | 6KA | 4.5KA |
