| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE,CCC |
| Model Number: | ATSQ-63 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000pcs/month |
| Product Name: | Dual Power Automatic Transfer Switch ATS | Max. Current: | 100A |
|---|---|---|---|
| Max. Voltage: | 630V | Pole: | 4P |
| Rated Voltage: | 220V/380400V | Temperature: | -5~45℃ |
| Frequency: | AC 50 Hz/60Hz | Standard: | CE |
| High Light: | 63a ats power automatic transfer switch,4p ats power automatic transfer switch,32a ats power automatic transfer switch |
||

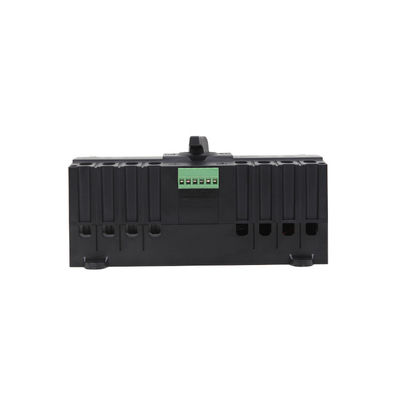

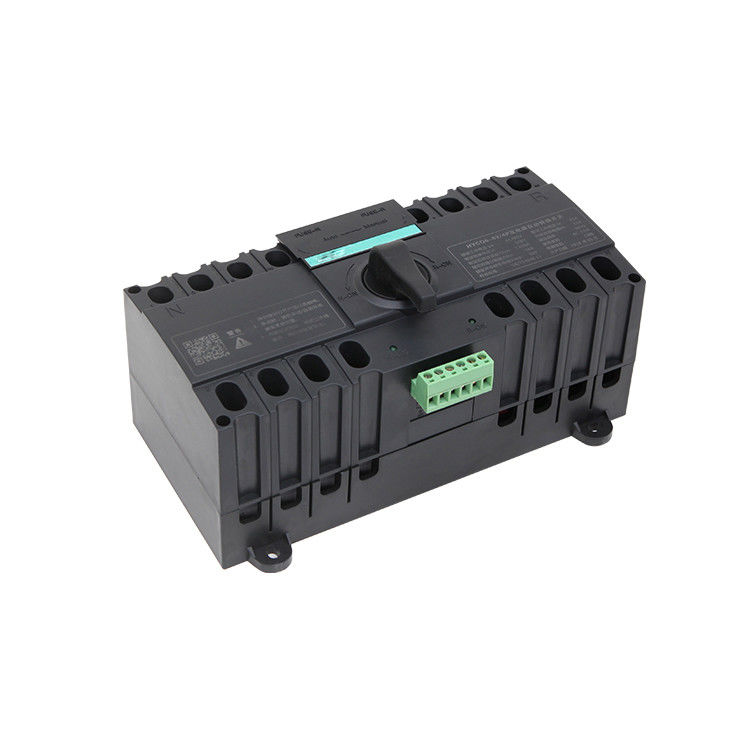

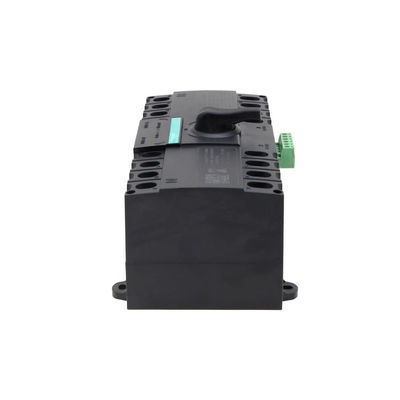

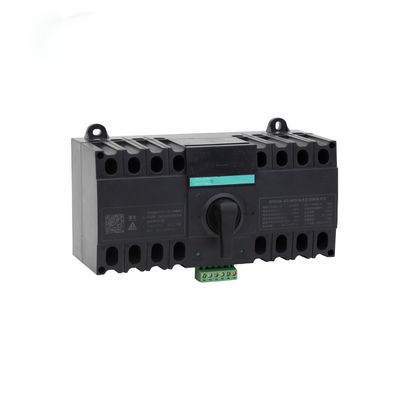

3 Phase Ats Switch 63A automatic changeover switch 4p 32a 3p automatic transfer
General
ATSQ-63 series dual power automatic transfer switch is new developed professional circuit / wire protection equipment.With this protection device, when the household circuit is short-circuited, the automatic disconnection function can be quickly provided.The contactor is sensitive and the carrying capacity is stronger. The outer casing and parts are made of high flame retardant, impact resistant plastic and have a long service life.
Uses: Mainly used for housing and similar architectural lighting, wire and equipment overload and short circuit protection ,Can be widely used in electric power, post and telecommunications, transportation, mining and other fields.
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
| Rated Current Ie A | 6,10,16,20,25,32,40 | 50, 63 |
| Electrical Appliances Class | CB | |
| Use Category | AC~33B | |
| Tripping Current | 5~10In (Type C), 10~15In (Type D), | |
| Rated voltage Ue | 220V (2P),380V (3P or 4P) | |
| Rated frequency | 50/60Hz | |
| Rated short circuit connecting ability Icm (Peak) | 9.18KA | 6.615KA |
| Rated short circuit breaking ability Icn (effective value) | 6KA | 4.5KA |
