| Place of Origin: | China |
| Brand Name: | Chint |
| Certification: | CE,CCC |
| Model Number: | XL-21, JXF, GGD |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD20~USD200 |
| Packaging Details: | Standard export carton/crate wood box |
| Delivery Time: | 5-8 working days or bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300pcs/month |
| Material: | Stainless Steel | Color: | White |
|---|---|---|---|
| Type: | Distribution Box,Power Distribution System | Rated Voltage: | 220/380V |
| Protection Level: | IP55 | Function: | Waterproof Distribution Box |
| Certification: | CE | Name: | Distribution Cabinet/Power Electric Meter Box |
| Mounting Type: | Flush Or Surface | Specification: | 820*1200*2200 |
| Highlight: | 220v electrical distribution box,220v ip65 electrical distribution cabinet,sus electrical distribution box |
||

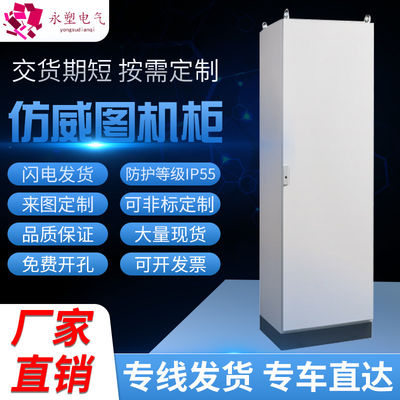

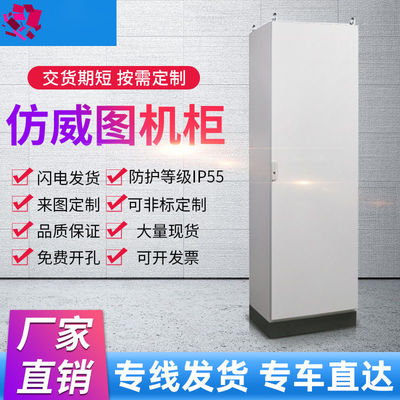

Network cabinets Small Electrical Control Cabinets Stainless Steel Low-Voltage Power
General
The product design has fully considered the requirements of the majority of power users and design departments, which can meet the needs of the developing power industry such as the centralized control of capacity increase power, convenient installation and maintenance, and shortened accident treatment time, etc., which is safe, economical, reasonable and reliable.The product has the characteristics of strong connection ability.
Technical Data
| Items | Parameters | |
| Rated insulation voltage (V) | 660 | |
| Rated operating voltage (V) | 380/660 | |
| Auxiliary circuit rated voltage (V) | AC | 220/380 |
| DC | 110/220 | |
| Operating frequency (Hz) | 50 - 60 | |
| Rated current (A) | Horizontal bus-bar | < 3150 |
| Vertical bus-bar | 630/800 | |
| Rated short-time withstand current | Midline (kA/1 s) | 50 |
| Bus-bar (kA/1 s) | 30 | |
| Rated peak current (kA/0.1 s) | 105/50 | |
| Functional unit breaking capacity (kA) | 50 (effective value) | |
| Cabinet protection degree | IP40 | |
| Bus-bar | Three phase four wire system, three phase five wire system | |
| Operating mode | On-site, distance and automatic | |
