Double Power 125A ATS Automatic Changeover Switch CB Level
Product Details
| Product Name: | Dual Power Automatic Transfer Switch ATS | Max. Voltage: | 690V |
|---|---|---|---|
| Control Power Supply Voltage: | 400V, 380V, 220V, 480V | Pole: | 3P/4P |
| Current: | 400A | Operation Type: | Manual |
| Voltage: | 63A | Standard: | IEC60947-6-1 |
| Features: | Grid To Generator | ||
| Highlight |
125A Power Changeover Switch,CB Level ATS Changeover Switch,Double Power ATS Changeover Switch |
||
Product Description
FENIGAL Manufacturer & OEM of ATS products
FMQ2 CB level (motor type) double power automatic transfer switch
Structure features:
Control device: LCD controller
Product structure: small size, high current, simple structure, ATS-body
Features: fast switching speed, low failure rate, easy maintenance, reliable performance (with automatic switching time adjustable, ls ~ 99s) Wiring method: wiring before the board
Switching mode: grid to grid, grid to generator, self-injection self-repeating, self-injection non-self-repeating, mutual standby
Product shell frame: 63, 100, 225, 400, 630, 800, 1250, 1600
Product current: 20, 32, 40, 63, 80, 100, 125, 160, 200, 225, 250, 315, 400, 500
630, 800, 1000, 1250, 1600A
Product classification: Circuit breaker (CML TM30)
Number of product poles: 3, 4
ATS level: CB level with overload and short circuit protection
Technical requirements
♦In the automatic gear, when the common power under voltage, over voltage, loss of voltage switch to standby power; when the same fault occurs in the standby power, switch to double points position, the display shows automatic alarm at the same time
♦LCD screen protects 30s, display screen when button is pressed for the first time, the second time can enter the setting, enter the setting need password input.
♦When the manual setting is messy (dead), there is a reset key to reset to the barking value.
♦When the controller is set in automatic and manual position, the display shows double points when pressing the double points button on the controller panel, but no alarm.
When the controller is set to delay switching time, when the power failure is restored to normal within the set value, the double power supply will not be switched, and vice versa.

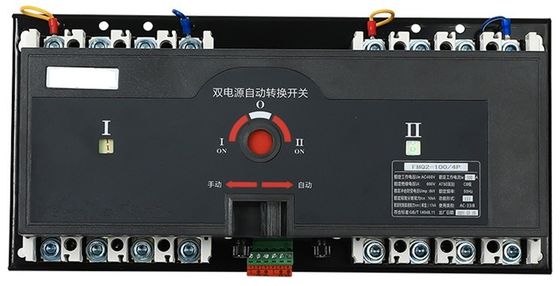

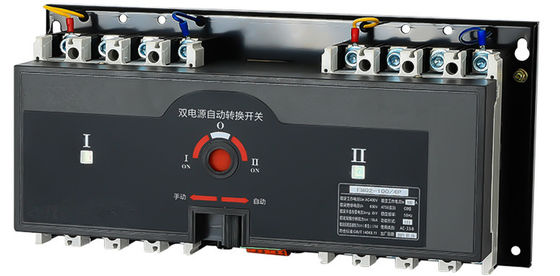

FMQ2-100/4P-Dl (basic type)

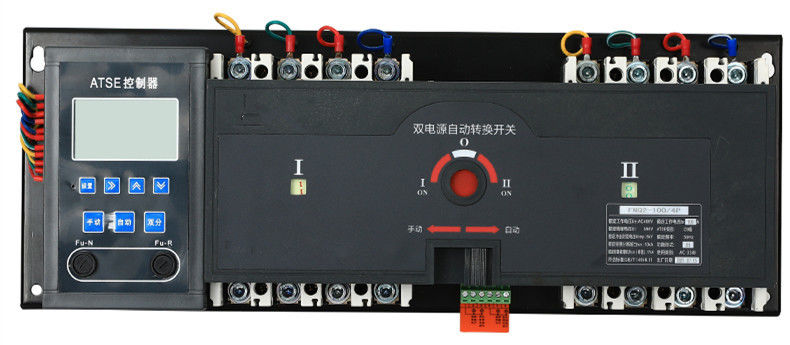

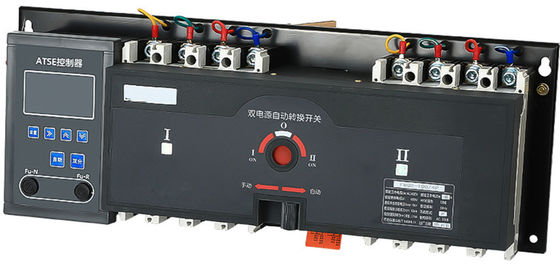

FMQ2-100/4P-D2 (intelligent type)
| Use category | AC-33iB | ||||||||
| Rated working voltage Ue | AC400V | AC380V | |||||||
| Rated insulation voltage Ui | 690V | ||||||||
| Rated impulse withstand voltage Uimp | 6kV | 6kV | 6kV | 6kV | 6kV | 8kV | 8kV | ||
| Rated short-circuit breaking capacity Icn | 10kA | lOkA | 20kA | 30kA | 30kA | 30kA | 30kA | ||
| Rated short-circuit turn-on capacity Icm | 17kA | 17kA | 40kA | 63kA | 63kA | 63kA | 63kA | ||
| Service life (times) | Mechanical | 4500 | 5000 | 3000 | 2000 | 2000 | 2500 | 2500 | |
| Electrical | 1500 | 1000 | 1000 | 1000 | 1000 | 500 | 500 | ||
| Number of poles | 3,4 | ||||||||
| Operation cycle (sec/time) | 30S | 60S | |||||||
| Switching time | 0-99S | ||||||||

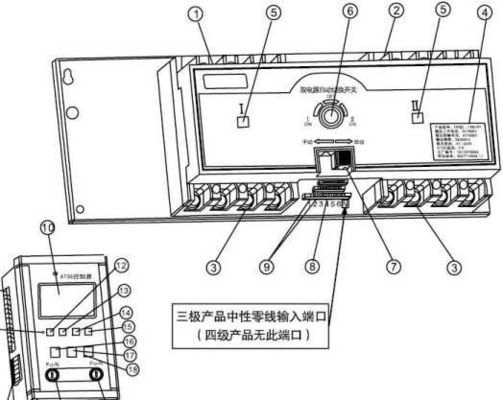

① Main terminal of common power inlet② Main terminal of backup power inlet
③ Main terminal of load side④ Signage⑤ Commonly used power break indicator
⑥Handle jack⑦ Plug sealing plate pulling button⑧ User external signal terminal
9 Controller signal connection terminal Imitation LCD display
11 Restore factory default key '1＞setting key
⑬Displacement key 14Numeric plus key 15Numeric minus key
16Manual key⑰ Auto Key 18 Double split key
19 Common power fuse 20Standby power fuse diy 21Generator signal port and
Fire connection port
