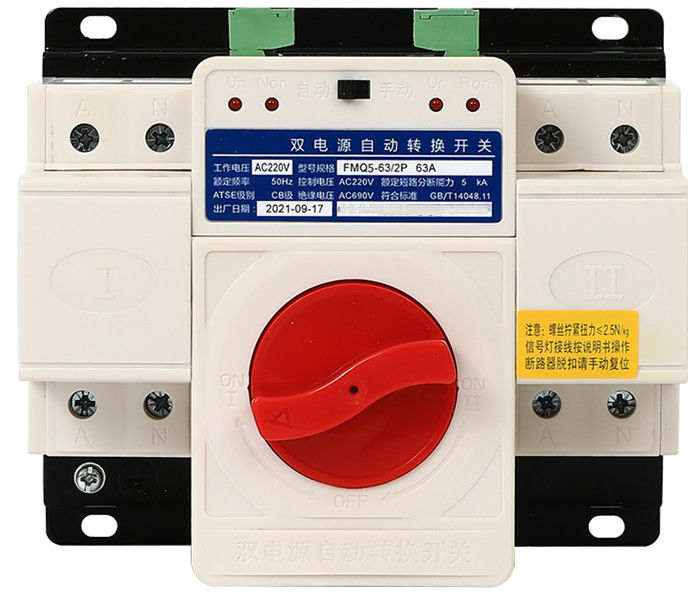

63A 220V ATS Automatic Transfer Switchs Dual Power Motor Type

Product Overview

Control device: built-in controller

Product structure: small size, high current, simple structure, ATS-body Features: fast switching speed, low failure rate, easy maintenance, reliable performance Wiring method: wiring in front of the board

Switching mode: grid-to-grid, grid-to-generator, self-injection self-recovery

Product shell frame: 63

Product current: 10, 16, 20, 25, 32, 40, 50, 63A

Product classification: circuit breaker

Product pole number: 2, 3, 4

Product standard: GB/T14048.11

ATS level: CB level, with overload and short circuit protection

User external signal port

Q Product Overview

-Basic type: Product factory standard ports (101-103, 201-203)

Signal light; Users connect their own as needed.

-End fire type (X type). Product factory standard ports (101-103, 201-203)

signal light, the (304-305) Firefighting ports. User to connect according to the need.

-End fire, power generation, feedback type (XFZ type) Product factory standard ports (101-103, 201-203)

Signal light, the (304-305) fire (104-105, 204-205) feedback, (301-303) power generation.

Users connect themselves as needed.
