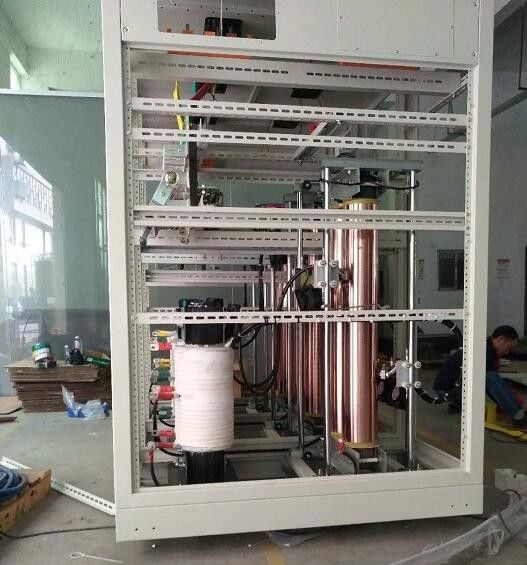

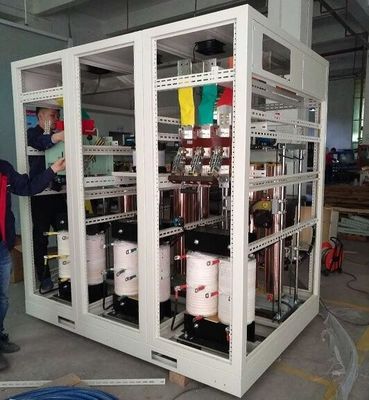

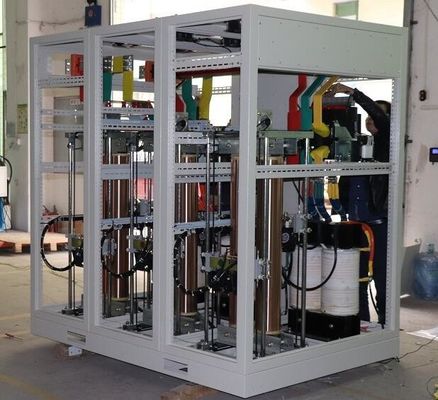

1000KVA 3 Phase Voltage Regulator Transformer AC SBW Voltage Stabilizer

1000KVA 3 Phase Voltage Regulator Transformer AC SBW Voltage Stabilizer

  • 1000KVA 3 Phase Voltage Regulator Transformer AC SBW Voltage Stabilizer
  • 1000KVA 3 Phase Voltage Regulator Transformer AC SBW Voltage Stabilizer
  • 1000KVA 3 Phase Voltage Regulator Transformer AC SBW Voltage Stabilizer
1000KVA 3 Phase Voltage Regulator Transformer AC SBW Voltage Stabilizer
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: CE,CCC
Model Number: SBW
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Voltage: 380V/415V Power: 250kVA~600kVA(3phase)
Material: Steel Case + Pure Copper Coil Name: Automatic Voltage Regulator
High Light:

3 Phase Voltage Regulator Transformer

,

1000KVA Automatic Voltage Transformer

,

SBW AC Voltage Stabilizer

1000KVA High-performance 3-phase ac SBW series voltage stabilizer

Widely used in the fields of post office,store,elevator,hospital,school,publishing house and stock exchange where normal voltage is in need,and also can be used in the factories of large and middle-scale industrial and mining corp,it is very much suitable for some important devices and supporting single machine.



Model (KVA) Output Power (KVA) Package Sizes(CM) Weight(KG)
SBW-50K 50 80*62*135 350
SBW-60K 60 80*62*135 370
SBW-100K 100 85*62*150 420
SBW-120K 120 100*72*170 450
SBW-150K 150 100*72*170 550
SBW-180K 180 100*72*170 570
SBW-200K 200 100*72*200 630
SBW-225K 225 110*80*180 660
SBW-250K 250 110*80*200 700
SBW-300K 300 110*80*210 740
SBW-320K 320 110*80*210 760
SBW-400K 400 100*80*210 Double cabinet 1100
SBW-500K 500 100*80*210 Double cabinet 1500
SBW-600K 600 100*80*210 Double cabinet 2200


Technical parameter

1. Power Range: 250kVA-600kVA (three phase);
2. Input Voltage: Ordinary 304-456V, or optional larger range;
3. Output Voltage: 380V±1-5% (Special input and output center voltage, like 3 phase 220v, 400v, 415v, etc, can be customized);
4. Coil Material: Ordinary aluminum and copper mixed, full copper can be customized, please let us know when your place order;
5. Display: Ordinary meter type, LED or LCD display screen can be customized, please let us know when your place order;
6. Frequency: 50~60Hz;
7. Electric intensity: The voltage for electrical strength and power frequency sinusoidal is 2000V without breakdown and flash over when lasts 1minute;
8. Overload Capacity: It can last 1 minute at the rated current of two times;
9. Protective function:it offers the protections against over voltage,over current,phase shortage and phase-sequence(The single-phase offers no protection against the phase shortage and phase-sequence)and mechanical failure;
10. Adjusting Time: <1s ( when input voltage has a change of 10%);
11. Response Speed: <1.5S
12. Waveform Distortion: No additional waveform distortion;
13. Efficiency: >98%;
14. Relative Humidity: ≤95%;
15. Ambient Temperature: -5 ~ +40°C;
16. Insulation Resistance: ≥2MΩ;
17. Packaging Detail: In Standard Plywood Case



Specification SBW 50KVA up to 600KVA
Input voltage Single Phase:175V-265V Three Phase:300V-456V
Output voltage Single Phase:220V Three Phase:380V
Output Deviance 1-5% adjustable
Frequency 50Hz/60Hz
Efficiency ≥95%
Response time ≤1.5S
Ambient temperature -10°C~40°C
Insulation resistance ≥5MΩ
Waveform distortion Non-Lack Fidelity Wareform
Overload Double Reted Current,One Min
Protect Overvoltage,Overcurrent,Lack Phases
Trade Items
MOQ 1 Set
Design Ability OEM&ODM is welcome,can supply sample
Certification CE,ISO9001,PCT,SGS,CCC
Packing Standard Export Packing
Payment Term Trade Assurance,T/T,L/C,D/A,D/P Western Union MoneyGram and so on
Delivery time 7-10 working days after payment received
