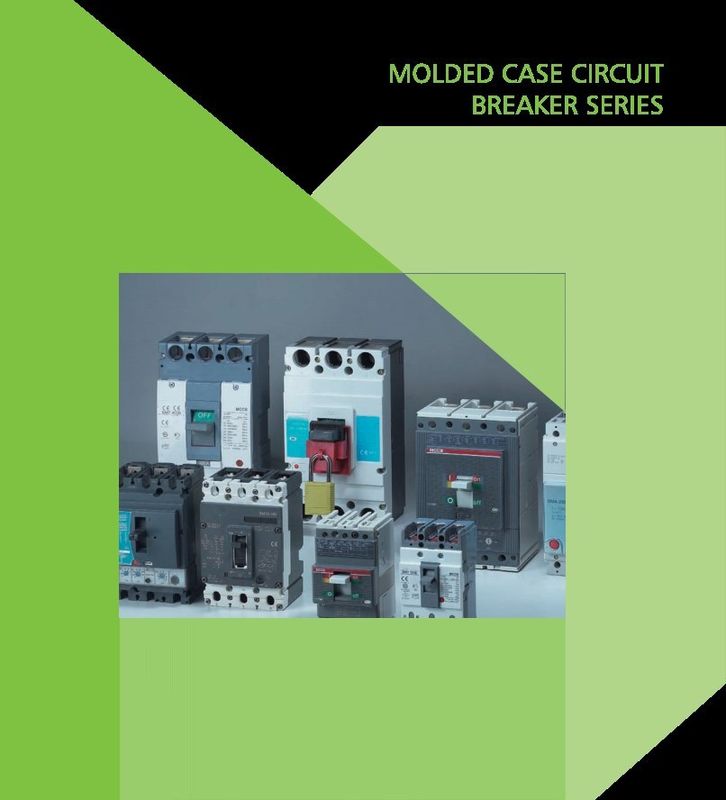

SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection

SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection

  • SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection
  • SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection
  • SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection
SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection
Product Details:
Place of Origin: China
Brand Name: FENIGAL/OEM
Certification: CE, CB, KEMA/Dekra etc.
Model Number: SM8L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD20~USD200
Packaging Details: Standard export carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Product Name: Mccb Moulded Case Circuit Breaker,Good Quality 3 Pole Tmax 100A Mccb Molded Case Circuit Breaker,compact NS 800A 1000A 1250A 1600A Mccb Molded Case Circuit Breaker Rated Voltage: 380V,380/400V,AC230/440/660,230/400V AC 50/60Hz
Rated Current: 25,25,32,40,50,63,80,100,125,160,200,250,315,350,400,500,630A Poles Number: 3,4,3P 4P
Breaking Capacity: 25-50kA Material: Earthleakage Protection
Installation: Fixed And Plug-in Standard: IEC60947-2
High Light:

Molded Case Industrial Circuit Breaker

,

Circuit Breaker With Earth Leakage Protection

,

3 Pole 380V Electric Breaker

FENIGAL/OEM



Features and Benefits

● Circuit breaker consists of electric leakage module, electronic mechanic release and zero-sequence current transformer;

● Residual current and leaking current delay time can adjust;

● Compact structure, easy for installation;

● The installation of circuit breaker are vertical installation and horizontal installation.



Specifications



Residual current release SM8L-110
Using technology Electronic
Operation With coil
Operating voltage(V) 50~500
Operating frequency(Hz) 50/60Hz ± 10%
Testing voltage range(V) 50~500
Rated operating current(A) Up to 250
Thershold value of trip I △ n(A) 0.03-0.1-0.3-0.5-3
Residual operation current allowances(%) +0,-20
Trip time(S) 0-0.1-0.25-0.5-1-1.5
Trip time allowanoce(%) ±20
Trip signal
Self-powered
Remote switch-off input
Alarm signal at 50% △ n
Only for Alternate current
Button of A used is AC
Low sensitivity
High sensitivity
Fixed under MCCB(vertically)
Fixed beside MCCB (plain way)
Dimension(L×H ×P)

120 × 120 ×70(RC212/2)ZLM1-160

140 × 170 × 108(RC212/3)ZLM1-250

Standard



releasing protection

IEC60947-2 appendix B

IEC255-4 and IEC1000:Defult



SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection 0SM8L Molded Case Industrial Circuit Breaker 3 Pole 380V With Earth Leakage Protection 1
