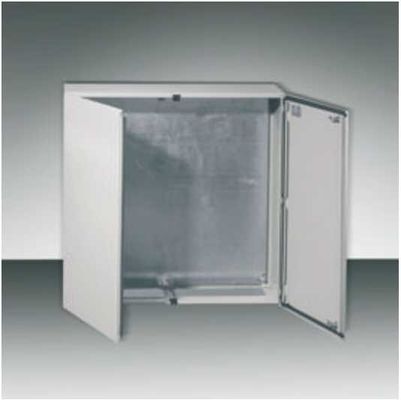

Sheet Steel Electrical Distribution Enclosure Box Double Door Wall Mount IP55 IK 10

Sheet Steel Electrical Distribution Enclosure Box Double Door Wall Mount IP55 IK 10

Sheet Steel Electrical Distribution Enclosure Box Double Door Wall Mount IP55 IK 10
video
Sheet Steel Electrical Distribution Enclosure Box Double Door Wall Mount IP55 IK 10
Product Details:
Place of Origin: China
Brand Name: FENIGAL/OEM
Certification: CE,CCC
Model Number: ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD20~USD200
Packaging Details: Standard export carton/crate wood box
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 300pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Material: Stainless Steel Color: White RAL 7032/7035
Application: To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor,Industrial Type: Distribution Box,Power Distribution System
Protection Level: IP55 Standard: IEC60439-3
Function: Waterproof Distribution Box Certification: CE
Working Temperature: -40 To +50 Degrees Centigrade Name: Distribution Cabinet/Power Electric Meter Box
Highlight:

Electrical Distribution Enclosure Box Double Door

,

Electrical IP55 Distribution Enclosure Box

,

Wall Mount Electrical Distribution Enclosure Box

double door wall mount enclosure



Supply Include:

Supply Include

Enclosure and door with lock system, galvanized mounting plate, gland plate, sealing gasket and fixing accessories.

Standard Configuration

Paint finish epoxy polyester powder coating textured finish

Color: RAL 7032 or RAL 7035

Protection degree: IP 55

Against mechanical impacts: IK 10

Thickness:

Enclosure & door: sheet steel 1.5mm.

Mounting plate:

Galvanized sheet steel :2.0mm



Selection Table

STD(standard lock K2)

Model W H D Nod lock     Gland open
STD8 620 800 600 200 2                       E
STD8625 800 600 250 2                       E
STD8630 800 600 300 2                       E
STD8 640

800



 600 400 2                       E
STD10 620 1000 600 200 2                       E
STD10 625 1000 600 250 2                       E
STD10 630 1000 600 300 2                       E
STD10 640 1000 600 400 2                       E
STD12 620 1200 600 200 2                       E
STD12 625 1200 600 250 2                       E
STD12 630 1200 600 300 2                       E
STD12 640 1200 600 400 2                       E
STD8 820 800 800 200 2                       E
STD8 825 800 800 250 2                       E




STDD(Rod Centre lock) with lock MS821

Model W H D Nod lock      Gland open
STD8 620 800 600 200 1                    E
STD8625 800 600 250 1                    E
STD8630 800 600 300 1                    E
STD8 640

800



 600 400 1                    E
STD10 620 1000 600 200 1                    E
STD10 625 1000 600 250 1                    E
STD10 630 1000 600 300 1                    E
STD10 640 1000 600 400 1                    E
STD12 620 1200 600 200 1                    E
STD12 625 1200 600 250 1                    E
STD12 630 1200 600 300 1                    E
STD12 640 1200 600 400 1                    E
STD8 820 800 800 200 1                    E
STD8 825 800 800 250 1                    E

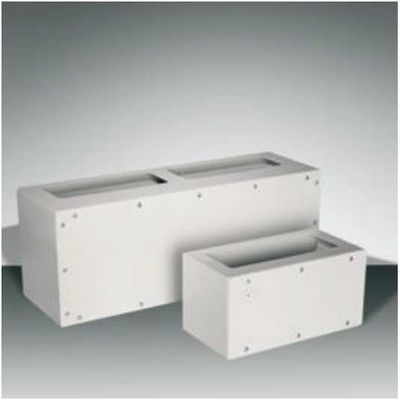

Gland box for wall mount enclosure



GB series box can be used as the gland box

of the ST wall mount enclosure,

Materia sheet steel 1.2mm, surface finish: epoxy polyester powder coating textured finish Color: RAL7035 or RAL 7032



Selection Table

Model W Size(mm)        D
H
GB432 300 400 200
GB532 300 500 200
GB632 300 600 200
GB8325 300 800 250
GB5252 250 500 200
GB6252 250 600 200
GB82525 250 800 250
GB422 200 400 200
GB522 200 500 200
GB1033 300 1000 300



Sheet Steel Electrical Distribution Enclosure Box Double Door Wall Mount IP55 IK 10 0Sheet Steel Electrical Distribution Enclosure Box Double Door Wall Mount IP55 IK 10 1
