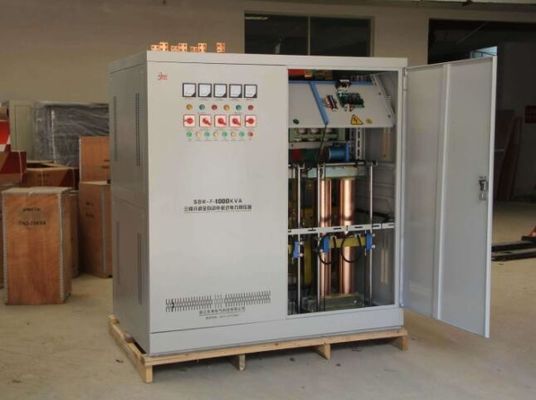

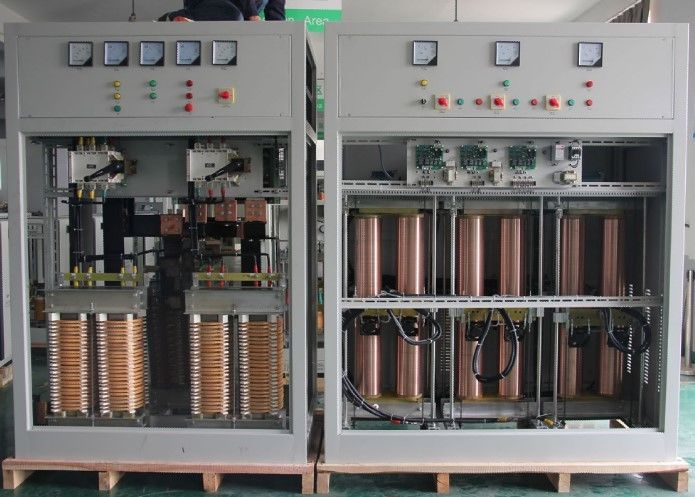

50kVA 3Phase Stabilizer Regulator Transformer 1000kva Automatic

50kVA 3Phase Stabilizer Regulator Transformer 1000kva Automatic

  • 50kVA 3Phase Stabilizer Regulator Transformer 1000kva Automatic
  • 50kVA 3Phase Stabilizer Regulator Transformer 1000kva Automatic
50kVA 3Phase Stabilizer Regulator Transformer 1000kva Automatic
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: CE,CCC
Model Number: SBW
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Voltage: 400V Power: 50kVA ~ 2,000kVA(3phase)
Material: Steel Case + Pure Copper Coil Name: Automatic Voltage Regulator
High Light:

3Phase Stabilizer Regulator


1000kva Stabilizer Regulator


Automatic Voltage Regulator Transformer

Automatic Voltage Stabilizer Regulator 400V

(1000kVA, 1200kVA, 1500kVA 1800kVA, 2000kVA)

From 50kVA ~ 2,000kVA, 3Phase- 4 Wire,

Input voltage 400V+/- 25%, Output Voltage 400V +/-3%

Dimension: 100 x 80 x180cm, Weight 1500KG

OEM or private labelling service provided


1.Large capacity, high precision

2.Adopted compensate voltage technology. Wide input voltage range

3. Over/Under voltage, overcurrent, phase-sequence/failure protection

4.Output voltage three phase auto-balance. With bypass system

5. Analog, LED, LCD display optional. With temperature control protection. Manual restart

6.Split phase regulation form



AVR and SBW series AC compensation voltage stabilizer(hereinafter referred to as voltage stabilizer). it is an power supply product which is developed by our company and combines the international advanced technology and our nationl can keep the output voltage stabilized while the input voltage changes.

This series product has many advantages compared with the other type voltage stabilizer, such as large capacity, more efficient,no wave distortion,steady voltage adjustment,available for different kinds of loads, withstand overload for short time, working for a long time, unattended,freely swith between manual

control and automatic control,freely switch between mains supply and stabilized voltage supply.set up protection devices for over-voltage,under voltage,over current,delay and mechanical breakdown,small size,light weight,install and use conveniently.

Its Features:
1. Industry proven design
2. small size,light weight,easy install
3. Maintenance free
4. Hassle-free performance
5. Widely input ranges can be supported to meet your particular needs
6. Reliable, Prompt After-Sales Service(2 years warranty)
7. Energy Efficient Products saving on Power Fees
8. Indoor(IP23) or Outdoor(IP65) can be choose


1. CNC Machining Centers 2.SMT 3.Printer 4.EDM

5. High way/railway system 6.Medical facilities 7.Laser cutting machine 8.Circuit board drilling machine

9.  Automatic insertion machine 10.CNC punch press 11. Net communication basic system

12. Petrochemical/Oil/Power system 13 Broadcast/Television/Bank system 14 Plastic Injection Molding Machines

15 Particularly suitable for large power fluctuations, worst power supply environment because transient mutations voltage, and where voltage regulation is needed.

Technical parameters:

1 Type SBW-F
2 Capacity 1000KVA


AC Input voltage
Switch 3P1800A(CHINT brand switch)
Phase Three Phase
Voltage 304V-456V (or customized)
Frequency 45HZ-65HZ

AC Output voltage


Phase Three Phase
Voltage 400V (or customized)
Frequency 50/60HZ
5 Rated output current 1215A
6 Voltage Accuracy ±1-5%V Adjustable(Factory set±2%)
7 Load working Continuous working keep 80% load
8 Efficiency >98%
9 Response time <40m Sec
10 Waveform Distortion No distortion (the same with input waveform)
11 Insulation strength 2500V/Min
12 Insulation Class H class(200 degree C)
13 Cooling method Natural cooling/Fan system cooling
14 Resist electric strengh 2500VAC/min
15 IP 23
16 Noise ≤55db(Noclude forced air cooling system)
17 Temperature Rise ≤75ºC
18 Environment Ambient Temperature -10~55ºC
Related humidity 15~85%(25ºC)
Altitude <1500M
19 Size: Length1100 *Width 650* High625(mm)
20 Weight : Net weight:568KG Gross weight:1350KG
21 Warranty: 2 years






22.Protection Function







Over/under voltage protection When the input voltage exceeds the value of over/under voltage, the stabilizer will protect automatically
Over current When the current exceeds the rated value, automatically cut off the input
Overload and short circuit protection When the load exceeds the overload value or short circuit of the equipment, it can cut off the power supply within the specified time;
Position Limitation Protection When the brush is running over the area, automatically stop adjustment;
Bypass Protection When the voltage stabilizer needs maintenance or in failure, the switch can be switched manually in the power supply;
Effective sampling circuit control High accuracy, good sensitivity, frequency characteristic measurement, good rate, high input impedance, low output impedance, wide range and low power consumption power supply
Circuit Function When the sampling voltage is lower than the lower reference voltage or higher than the upper limit voltage, the brush will automatically return to the center;
Temperature protection Three phase Over temperature protection protection
Warning Smoke Warning device
