Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head

Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head

  • Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
  • Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
  • Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
  • Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
  • Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
  • Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
  • Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head
Product Details:
Place of Origin: China
Brand Name: FENIGAL/OEM
Certification: CE,CCC etc.
Model Number: NP2B, BP2W, etc.
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs
Price: USD1~USD3/unit
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Product Name: XB2B Push Buttons Type: Pilot Device
Control Volt: 380VAC, 220VDC Mechanical Life: 10 Million Cycles
Electrical Life: 300 Thousand Cycles Environment Temperature: -15~60 Degree Celsius
Contact: 1 NO / 1 NC Etc.
High Light:

Push Button Switch Indicator NP2

,

230v Button Switch Indicator

,

Controls Illuminated button Indicator

Push Button NP2 Industrial Electrical Controls Illuminated Flush Head 24v 230v 1NO1NC


Advantage

Simple and refined

Rugged and durable metal series for easy operation and quick and easy installation


characteristic

  • Compliance with IEC, CCC certification standards

  • IP65, or IP66 (with protective cover)

  • Operating temperature -25°C to +70°C

  • Screw fastening method

  • Complete product range

  • Modular product design for custom installation and use

  • Warranty period: 18 months



application

  • Industry: Machine Manufacturing, Control System Panel Manufacturing, etc.

  •

  • Downstream applications: transmission and distribution panels, utilities, buildings, airports, etc.

Working & mounting conditions
Electric ratings: AC50/60Hz, AC380V/DC220V;
Degree of protection: IP40
Standard: IEC/EN60947-5-1
2.1 Ambient temperature is -5℃~+40℃, the average temperature during 24 hours couldn't exceed +35℃.
2.2 Altitude: ≤2000m.
2.3 Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40℃; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20℃, the relative humidity is up to 90%. As for dews, which contingently appear due to change of temperature, special steps should be taken.
2.4 Pollution degree: 3
2.5 Overvoltage category: Ⅱ


main information

Product Series

NP2

product type

Button

Product short name

Pushbutton and Indicators

Mounting diameter

22 mm

Separate sales quantity per piece

1




Additional information

Signal unit head shape

Round

Head type

Self reset

Joystick shape

Red flat head

Contact type

1NC/1NO

Conventional heating current [Ith]

10 A in accordance with EN/IEC 60947-5-1

Rated insulation voltage [Ui]

600 V (pollution level 3) in accordance with EN/IEC 60947-1



surroundings

Protection process

TC

Storage ambient temperature

-40...70 °C

Operating temperature

-25...55 °C



main information

Product Series

NP2B

product type

Illuminated button

Product short name

NP2BW

Border material

plastic

Mounting diameter

22 mm



Additional information

Separate sales quantity per piece

1

Protection process

TC

Operating position

any position

Mounting pitch

>= 30 x 40 mm (panel) - thickness: 1...5 mm

Fixed mode

Recommended torque for fixing nut: 2.2 Nm (Us +/- 10 %)

Signal unit head shape

Round

Joystick shape

Red flat head

Contact type

1 NO

Contact action

Slow break

Mechanical life

1500000 times

Wiring ability

Bolt fastening, clamping force: <= 1 x 2.5 mm2
Bolt fastening, clamping force: <= 2 x 1.5 mm2
Bolt fastening, clamping force: >= 1 x 0.5 mm2
Quick-connect terminal block, connection type: 6.3 mm

Tightening torque

0.8 Nm

Short circuit protection

10 A gL fuses in accordance with IEC 60269-1

Conventional heating current [Ith]

10 A

Rated insulation voltage [Ui]

600 V in accordance with IEC 60947-4-1

Rated impulse withstand voltage [Uimp]

6 kV in accordance with IEC 60947-1

Rated operating current [Ie]

3 A on 240 V, AC-15, A600
0.27 A on 250 V, DC-13, Q600

Electrical life

500000 times, AC-15, 3 A on 230 V, working rating <60 times/min, load factor: 0.5 in line with IEC 60947-5-4
500000 times, DC-13, 0.2 A on 110 V, working rating <60 times/min, load factor: 0.5 in line with IEC 60947-5-4

signal type

Constant

Light source

LED bulb

Lamp holder

BA 9s

Rated power supply voltage [Us]

220 V AC 50/60 Hz

Power supply voltage range

176...242 V communication

Current consumption

< 20 mA

Service life

10,000 hours

surroundings

Storage ambient temperature

-40...70 °C

Operating temperature

-25...55 °C

Overvoltage type

Class I complies with IEC 536

IP protection level

IP65 in accordance with IEC 60529

IK protection level

IK03 complies with IEC 60529

Standards compliant

GB 14048.5
IEC 60947-5-1
GB 14048.1
IEC 60947-1

certified product

CCC

Vibration resistant

10 gn (f= 40...500 Hz) in accordance with IEC 60068-2-6

Impact resistance

70 gn (duration = 11 ms) for half sinusoidal impact in accordance with IEC 60068-2-27



Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head 0

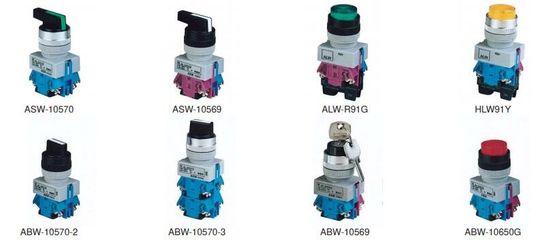

Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head 1

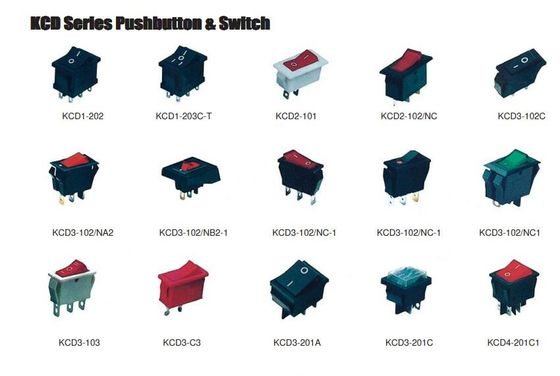

Industrial Push Button Switch Indicator 230v NP2 Controls Illuminated Flush Head 2
