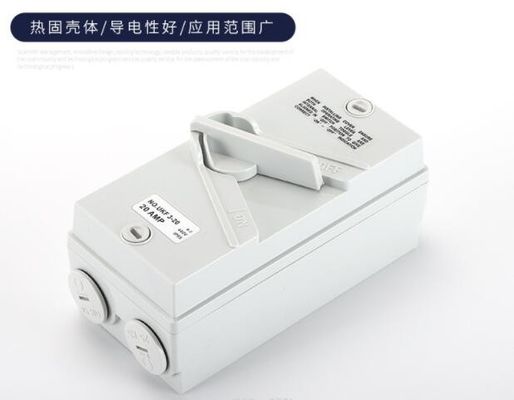

Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing

Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing

  • Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing
  • Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing
  • Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing
  • Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing
Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing
Product Details:
Place of Origin: China
Brand Name: Fenigal/None
Certification: CE,CCC
Model Number: UKF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD10~USD100
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T
Supply Ability: 1,000pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Material: PC Color: Grey White/Transparent Door
Application: Power Distributing Type: Distribution Box Electrical Boxes
Installation Type: Surface Type/ Flush Type Standard: IEC60439-3
Rated Voltage: 220V-380V,220/110V Rated Current: 32,63A,
Frequency: 50 HZ/60HZ External Size: 600x500x230mm
Working Temperature: -40 To +80 Degrees Centigrade
Highlight:

Outdoor Waterproof Isolation Switch

,

63A Isolation Switch

,

110V PC Waterproof Isolation Switch

Outdoor waterproof isolation switch UKF1P-4P20A 35A 63A Australian standard power load switch

Quick Details
Certification:
ce
Whether the smart:
NO
Place of Origin:
Zhejiang, China
Brand Name:
Fenigal,OEM
Model Number:
UKF3-63
Max. Current:
63A
Max. Voltage:
440V
Product name:
Isolating switch
Rated current:
20-63A
Rated voltage:
440V
IP Rating:
IP65
Standard:
EN60947
Frequency:
50/60Hz
Poles:
1P,2P,3P,4P
Woking environment:
-20℃-55℃
Material:
ABS,PC
Keyword:
Isolating Switch



The product name: UKF waterproof isolation switch

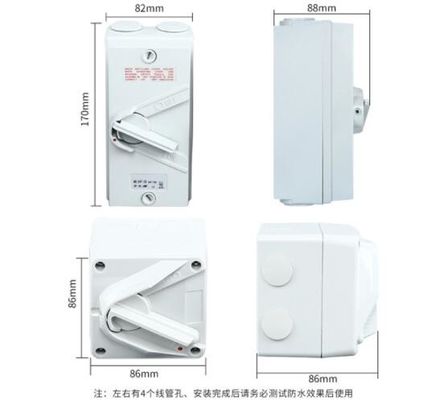

Product size: 160*80*72
Rated current: 20-63A
Waterproof level: lP65Product material: ABSConductive material: Agseries:1p/2p/3p/4p
Model No.
Voltage
M-Rating
UKF1-20
250V
M rating220
UKF1-35
250V
M rating220
UKF1-63
250V
M rating220
UKF2-20
440V
M rating180
UKF2-35
440V
M rating180
UKF2-63
440V
M rating180
UKF3-20
440V
M rating180
UKF3-35
440V
M rating180
UKF3-63
440V
M rating180
UKF4-20
440V
M rating180
UKF4-35
440V
M rating180
UKF4-63
440V
M rating180



Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing 0

Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing 1

Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing 2

Outdoor Waterproof Isolation Switch 63A Australian Standard 240V Power Distributing 3
