SMC Cable Fiberglass Enclosure Distribution Box With Double Locks CE Standard
Product Details
| Material: | SMC/DMC | Color: | Grey White/Transparent Door |
|---|---|---|---|
| Application: | Power Distributing | Type: | Distribution Box Electrical Boxes |
| Installation Type: | Surface Type/ Flush Type | Standard: | IEC60439-3 |
| Rated Voltage: | 220V-380V,220/110V | Rated Current: | 32,63A,100A |
| Frequency: | 50 HZ/60HZ | External Size: | 600x500x230mm |
| Working Temperature: | -40 To +80 Degrees Centigrade | ||
| Highlight |
SMC Cable Distribution Box,Fiberglass Enclosure Distribution Box,Double Locks SMC Distribution Box |
||
Product Description

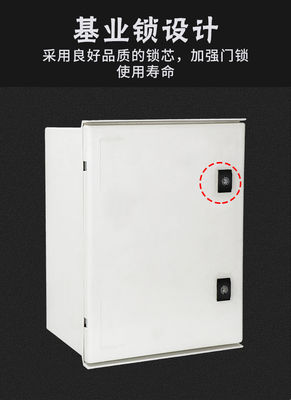

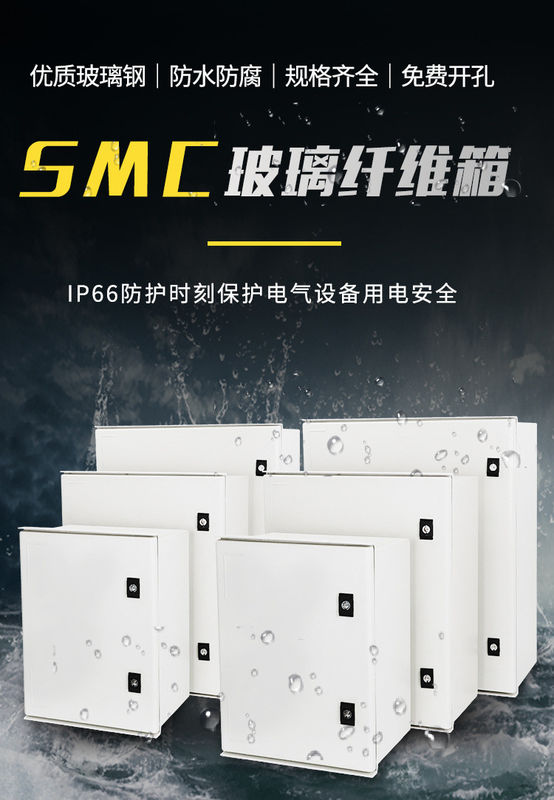

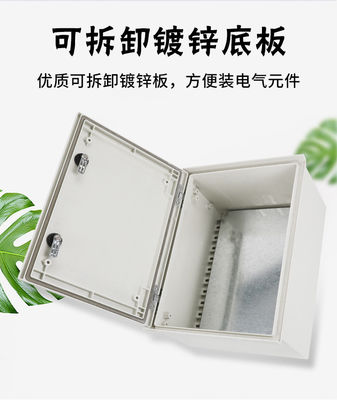

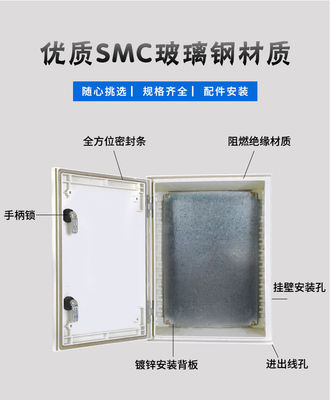

SMC cable distribution box with double locks CE standard
Product Description
-
This series of low-voltage cable box is used in power system with rated frequency 50/60hz and rated voltage 380V(660V) as power distribution and control of power, lighting and distribution equipment. Applicable to all kinds of harsh environment, power station (station), industrial and mining enterprises and urban roads, garden residential areas, high-rise buildings, airports and other outdoor public places. Especially suitable for oil, chemical and other plants with corrosive gas, as well as coastal, islands and other places with high salt fog use.
-
SMC glass fiber reinforced unsaturated polyester box, adopted new high-performance materials for processing and manufacturing, with features that ordinary materials do not have, especially its characteristics of environmental protection, beauty and dullness pollution, which is more suited to the trend of creating energy-saving and environment-friendly society advocated by today's society. With strong insulation, chemical resistance, flame retardant insulation and good toughness, the box is the first choice of urban and rural power grid reconstruction project.
Cabinet advantages
1. Chemical resistance
2. Strong aging resistance
3. Strong insulation performance
4. Good temperature resistance
5. Good flame retardancy
6. Light weight, high strength and toughness
7. No gap sensitivity
Cabinet features:
1.Effectively prevent condensation and frost;
2.Excellent outdoor protection class, up to IP65;
3.Building block structure, light weight, convenient installation;
4.Streamline shape, hard to paste advertisement on the surface, in line with environmental protection requirements
5.Open Angle 180 °, replacement door and activities without tools;
6.Stable overall structure, three-point locking, external padlock;
7.Matte surface, harmonious and beautiful, light and dirty beam.
Product Advantage:
- SMC(Sheet Moulding Compound) is both a process and reinforced composite material .This is manufactured by dispersing long strands(>1") of chopped glass fibers on a bath of polyester resin .
- The longer glass fibers in SMC result in better strength properties than standard Bulk Moulding Compound(BMC) products .
- Typical applications include demanding electrical applications ,corrosion resistant needs ,structural components at low cost ,and automotive and transit applications .
- SMC has many good properties ,for example ,Fully insulated ,Corrosion resistance ,Anti-aging ,Heat resistance ,Impact resistance ,Flame retardant ,Anti-theft ,Light weight .
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
Brand Name: | WSELE/OEM |
| Model Number: | DFX 6B | Material: | Glass fiber/SMC |
| Product Name: |
SMC distribution box
|
Certificate: | ISO9001,ISO14000,CCC,CE |
| Application: | Electric power system | OEM/ODM: | Available |
