AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection

AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection

  • AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection
  • AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection
  • AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection
  • AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection
AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: AC32A
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: USD600-800
Packaging Details: Standard Export Carton
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10,000/month
Contact Now
Detailed Product Description
Output Current:: AC Input Voltage:: 400v, AC 400V 15%
Charging Standards:: Type1, Type 2 Rated Current:: 32A
Rated Output Power:: 7kW Interface Standard:: TYPE2
Output Power:: 22kW Product Name:: Wall Mounted EV Charger AC
Warranty:: 12 Months Connector:: Cable Plug, Socket
Color:: Silver
High Light:

AC Waterproof EV Charging Station

,

32A EV Charging Station

,

7KW Electric EV Charging Station

AC Waterproof wall mounted 32A 7KW TYPE 2 EV charging station car chargers with robust protection

GLOBAL

  • Installations in over >200 cities in China and > 27 countries

TIME-TESTED

  • Over 17 years of experience in driving field and with more than
  • >10000 units sold

FLEXIBILITY

  • Free combination of 4 standards serving all electric vehicles
  • GB/T connectors for Chinese cars
  • CCS connectors for American and EU cars
  • CHAdeMO connectors for Japanese cars
  • AC Plug for early EV and hybrid cars

SAFETY

  • Independently certified and 3rd party tested according to relevant electrical safety standards

RELIABILITY

  • Multiple power modules ensures continued operation in the event of single component failure

Technical Specification:



Category HKAC Series
Model Name: HKAC 32 (EU) HKAC 32 (US)
AC Input Input Rating

230VAC/Single Phase

400vac/Three Phase

208-240vac/1Phase (AC Level 2)

400VAC/Three Phase

MAX.Input Current (A) 32
AC Input Connection

L/N/PE

3P/N/PE

Frequency (Hz) 45-65
Residual Current Device(Type B Optional)

Type A:30mA ;

Type B: 30mA+dc 6 mA

User Interface & Control Display 3.5' Inch Touch Screen
User Authentication RFID ISO/IEC 14443A/B
Display Information Current,Energy
Communication External Ethernet /4G/3G
Internal OCPP 1.6 JSON
Environmental Operating Temperature (ºC) -30~+50,Power derating from 50 and above
Humidity (%) 5~95RH,Power Derating from 50 and Above
Altitude (m) </= 2500m
IP Level IP54 NEMA TYPE 3R
Cooling Method Natural Cooling
Mechanical Dimension (W*D*H)mm

160*280*398.5 (Wall Mounted Type)

181.5*280*1515 (Floor Mounted Type)

Weight (KG)

≤14kg (Wall Mounted Type)

≤20kg (Floor Mounted Type)

Cable Length (m) 5Meter
Protection Input Protection OCP:<35.2A / OVP:>275/UVP:<160V
Output Protection OCP:<35.2A / OVP:>275/UVP:<160V
Regulation Certificate

IEC 61851-1:2017

IEC 61851-21-2

UL2594,UL2231-1/-2
Safety CE UL/cUL
Charging Interface IEC62196-2:2016,Type 2 Plut SAEJ1772 Type 1 Plug



There are two main types of chargers for electric vehicles, AC (alternating current), and DC (direct current) chargers. The main difference between the two is whether the conversion of AC power from the grid to DC power needed for charging an EV's battery happens inside or outside the vehicle.

AC charging stations are the most common type of chargers. When charging with an AC charger, the AC to DC conversion happens inside the vehicle’s onboard converter. Given the limited space inside a vehicle, the size of the onboard converter is also limited.

Packaging & delivery

Selling Units:
Single item
Single package size:
33X25X18 cm
Single gross weight:
16.000 kg
Package Type:
paper case for international express package



Power from the electricity grid is alternating current (AC) by nature. The electric power of a battery is direct current (DC) by nature. Therefore, to charge an electric vehicle from the grid, power must be converted from AC to DC.

When plugging an electric vehicle into an AC charging station, power from the grid is fed to the car via the vehicle inlet using the charging cable and connector. The onboard AC/DC converter converts AC power to DC power, suitable for charging the battery.

Due to the limited space inside a vehicle, the onboard charger is limited in size and weight. Therefore, onboard chargers typically have a power ranging between 1.9 kW - 43 kW.

To increase the charging power further, the AC/DC converter must be moved outside the vehicle and placed in an off-board charger. This is known as DC charging. DC power is directly fed to the car via a DC charging inlet. With no size or weight restrictions, the off-board charger can typically deliver up to 360 kW.

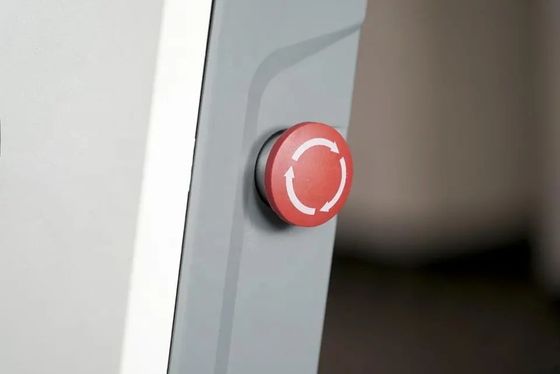

AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection 0

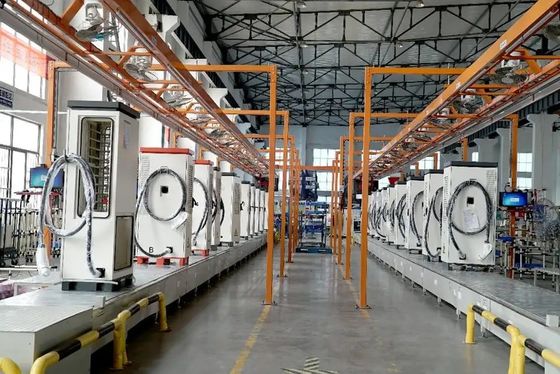

AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection 1

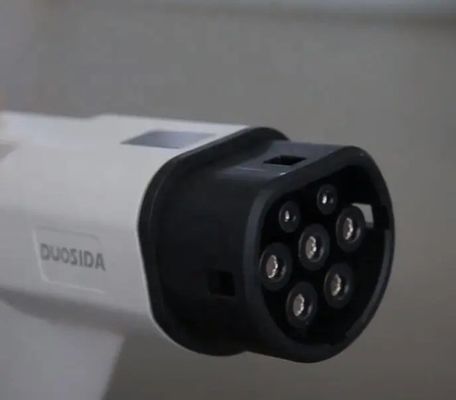

AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection 2

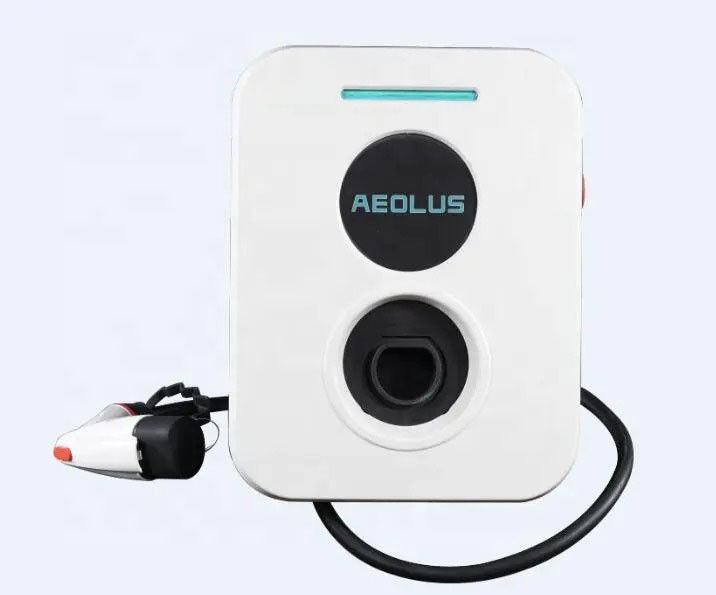

AC Waterproof Electric EV Charging Station Wall Mounted 32A 7KW With Robust Protection 3

The time it takes to charge an EV depends on the size of the EV’s battery and the speed of the EV charger.

Fast chargers are the quickest way to charge an EV. In just 15 minutes to one hour, a 50 kW - 350 kW DC fast charger can deliver between 200 km - 500 km of range.

Residential or commercial AC charging stations between 7 kW - 22 kW take around four to eight hours to charge an EV from empty to full. However, instead of waiting until their battery is empty to charge, many EV drivers charge wherever they park. Known as the top-up model, this makes AC chargers a practical choice for businesses and drivers alike.

Q&A

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A1: We keep good quality and competitive price to ensure our customers benefit ;
A2: We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
