| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE |
| Model Number: | DC30 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5,500-6,000 |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 20-25 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000/month |
| Output Current:: | AC | Input Voltage:: | 400v, AC 400V 15% |
|---|---|---|---|
| Charging Standards:: | CCS, Type 2 | Rated Current:: | 55A |
| Rated Output Power:: | 30kW | Interface Standard:: | TYPE2 |
| Product Name:: | Wall Mounted EV Charger AC | Warranty:: | 12 Months |
| Connector:: | Cable Plug, Socket | Color:: | Silver |
| High Light: | OCPP Level EV DC Charging Station,30KW EV DC Charging Station,Wifi IP54 EV DC Charging Station |
||

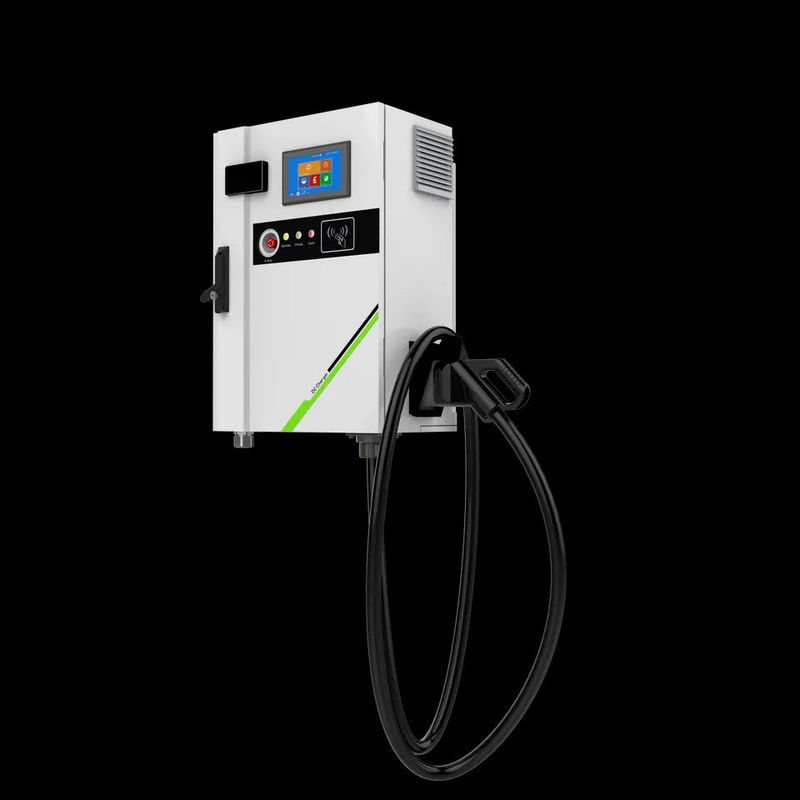

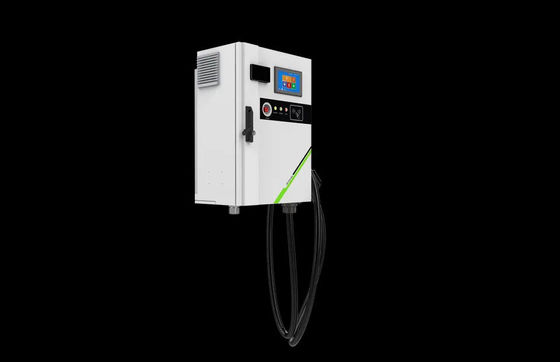

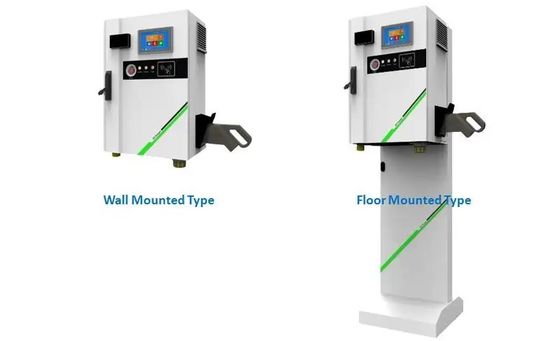

EV DC Charger EV Charging Station OCPP Level 2 CCS Type2 wallbox 30KW Wifi IP54
GLOBAL
TIME-TESTED
FLEXIBILITY
SAFETY
RELIABILITY
There are two main types of chargers for electric vehicles, AC (alternating current), and DC (direct current) chargers. The main difference between the two is whether the conversion of AC power from the grid to DC power needed for charging an EV's battery happens inside or outside the vehicle.
AC charging stations are the most common type of chargers. When charging with an AC charger, the AC to DC conversion happens inside the vehicle’s onboard converter. Given the limited space inside a vehicle, the size of the onboard converter is also limited.
Power from the electricity grid is alternating current (AC) by nature. The electric power of a battery is direct current (DC) by nature. Therefore, to charge an electric vehicle from the grid, power must be converted from AC to DC.
When plugging an electric vehicle into an AC charging station, power from the grid is fed to the car via the vehicle inlet using the charging cable and connector. The onboard AC/DC converter converts AC power to DC power, suitable for charging the battery.
Due to the limited space inside a vehicle, the onboard charger is limited in size and weight. Therefore, onboard chargers typically have a power ranging between 1.9 kW - 43 kW.
To increase the charging power further, the AC/DC converter must be moved outside the vehicle and placed in an off-board charger. This is known as DC charging. DC power is directly fed to the car via a DC charging inlet. With no size or weight restrictions, the off-board charger can typically deliver up to 360 kW.
Technical Specification:
| Category | HKAC Series | ||
| Model Name | Dc15 | Dc30 | |
| AC Input | AC Input Connection |
400VAC±15% 3P + N + PE |
|
| Max. Input Current (A) | 27.5 | 55 | |
| Frequency (Hz) | 45~65 | ||
| Power Factor | ≥0.99 | ||
| Efficiency(%) |
≥94 |
||
| DC Output | Output Voltage Range | 150~750Vdc(15kW)/150~1000(30kW) | |
| Max. Output Current | 25 | 50 | |
| Max. Output Power(kW) | 15kW | 30kW | |
| Voltage Accuracy(%) | ± 1 | ||
| Current Accuracy(%) | ± 1 | ||
|
User Interface& Control |
Display | 7 inch touch screen | |
| Push Buttons | Emergency Stop | ||
| Display Information | Charging process and status / Alarm and warning messages | ||
| Internal | CANbus / RS485 | ||
| Environmental | Operating Temperature (°C) | -30-50, power derating from 50 and above | |
| Humidity (%) | 5~95RH, non-condensing | ||
| Altitude (m) | <2500m | ||
| IP Level | IP54 | ||
| Cooling method | Fan cooling | ||
| Mechanica | Dimension(WxDxH mm) | 182*500*443 | |
| Weight(kg) | ≤33.5 | ≤35 | |
| Cable Length(m) | 5 (CHAdeMO) / 5 (CCS) | ||
| Protection | Input Protection |
OVP, OCP, OPP, OTP, UVP, Residual current detection, Surge protection, Cabinet-open detection (rear door) |
|
| Output Protection | SCP, OCP, OVP, LVP, OTP, Residual current detection | ||
| Regulation | Certificate |
IEC 61851-1 , IEC 61851-23 , IEC 61851-21-2 |
|
| Safety | CE,UL | ||
| Charging Interface | CHAdeMO 1.2, ISO15118, DIN 70121urrent detection | ||
The time it takes to charge an EV depends on the size of the EV’s battery and the speed of the EV charger.
Fast chargers are the quickest way to charge an EV. In just 15 minutes to one hour, a 50 kW - 350 kW DC fast charger can deliver between 200 km - 500 km of range.
Residential or commercial AC charging stations between 7 kW - 22 kW take around four to eight hours to charge an EV from empty to full. However, instead of waiting until their battery is empty to charge, many EV drivers charge wherever they park. Known as the top-up model, this makes AC chargers a practical choice for businesses and drivers alike.
