| Place of Origin: | Jiangsu,China |
| Brand Name: | FENIGAL |
| Certification: | CE |
| Model Number: | TS-650 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Unit/Units per Month |
| Color: | RAL7035 | Material: | SMC/DMC/fiberglass |
|---|---|---|---|
| Protection Degree: | IP65 | Working Temperature: | -40 To +120 Degree |
| Brand Name: | Fenigal | Surface Treatment: | Painted With Epoxy Polyester Coating |
| High Light: | SMC / DMC Weatherproof Distribution Box,Fiberglass Enclosure Weatherproof Distribution Box,IP65 Weatherproof Distribution Box Fiberglass |
||

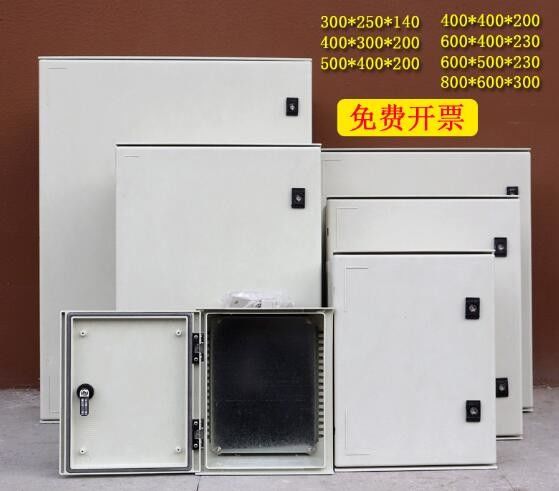

Polyester enclosure
New type, made by polyesters. The characteristics of the polyesters is its own min 30% fibre glass, make it reached high
resistance and mechanical stiffness, have the same effect of metal enclosure which is 3 times heavier than it. Compared with metal enclosure,
Lighter, more adequate for corrosion and dankish environment.
Material:fiberglass/ SMC,self-extinguishable or UV material are on request
Polyester enclosures(Fiberglass/SMC/FRP/GRP Enclosure)
Material:fiberglass/SMC/DMC, self-extinguishable or UV material are on request.
Resistance against rusting and corrosion by chemical or atmospherical condition.
Easy to machine/ easy to move around and install because of its lightness.

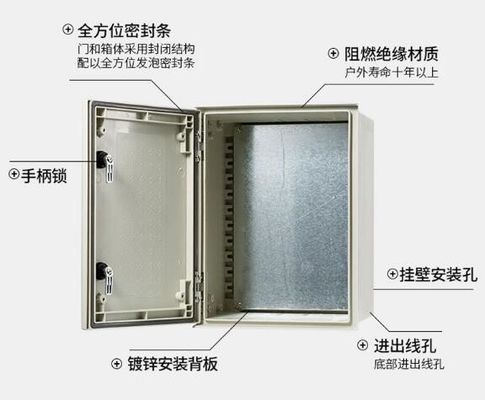

Door hinges allows more than 180° opening.
-Supply include:
Door with lock system,enclosure,wall mount brackets 4pcs/set.
Mounting plate to be supplied separately as to the clients request.
Color: RAL7035
Protection degree: IP65
Working temperature: -40 to +120 degree
Mechanical impact: IK09
Surface treatment: painted with epoxy polyester coating

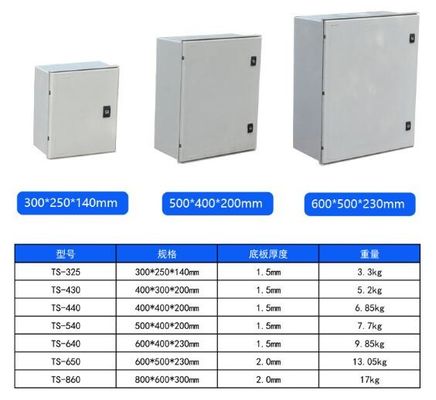

Dimension Allowance: ±1mm
Application: -for housing sensitive electronic assemblies, pneumatic, hydraulic and electrical devics in commercial and
industrial environments, providing effective shielding of EMI & RFI.
- boxes on internal base for fixing PCB horizontally or connection of earth grounding, terminals, etc
Advantages: -excellent resistance against chemicals.
- can be used in wide temperature range
- can be used indoor, outdoor, even harmful environment, eg. coastal area where expects to contact sea water
Supply include:
door with lock system,enclosure,wall mount brackets 4pcs/set.
Mounting plate to be supplied separately as to the clients request
Resistance against rusting and corrosion by chemical or atmospherical condition
Easy to machine/easy to move around and install because of its lightness.
Door hinges allows more than 180°opening
.The use is also convenient for the installation of Terminal Substitution Rail, aluminium case , Button Box, Small Terminal, Signal ,Relay and Sensor, Communication and joint Box etc.
