ESS Split Phase Inverter 5 - 10KW 4 MPPT Grade A Polycrystalline
Product Details
| Product Name: | 6000 Watt PV Solar System | Solar Panel Type: | Grade A Polycrystalline |
|---|---|---|---|
| Output Voltage (V): | 230/400V | Inverter: | Growatt Off-grid Inverter |
| Panel Power: | 10000W | Output Frequency: | 50/60HZ |
| Load Power (W): | 5-10KW | Solar Panel Max Power Voltage: | 47.13V |
| Solar Module Efficiency: | Mono Panel Upto 22%, Poly Panel Upto 19% | ||
| Highlight |
ESS Split Phase Inverter,10KW Split Phase Inverter,Split Phase 4 MPPT Inverter |
||
Product Description

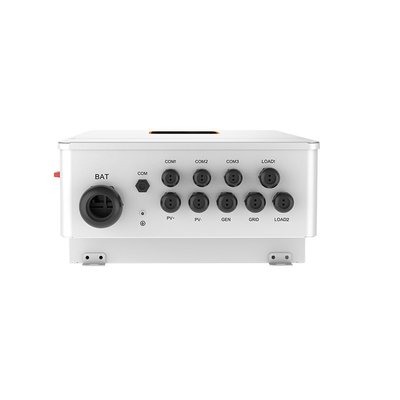

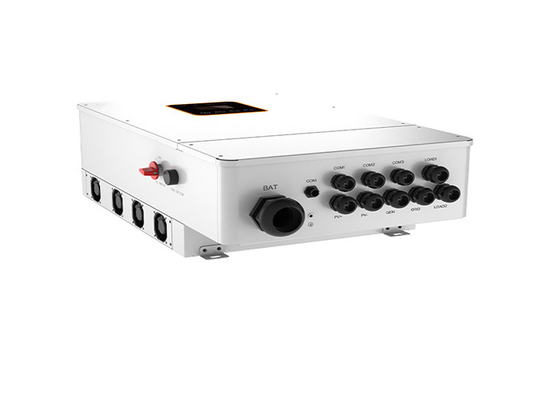

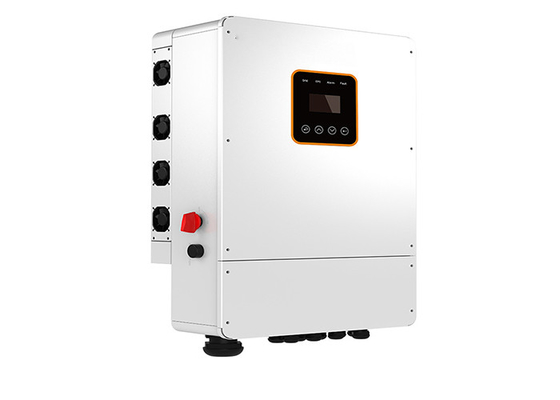

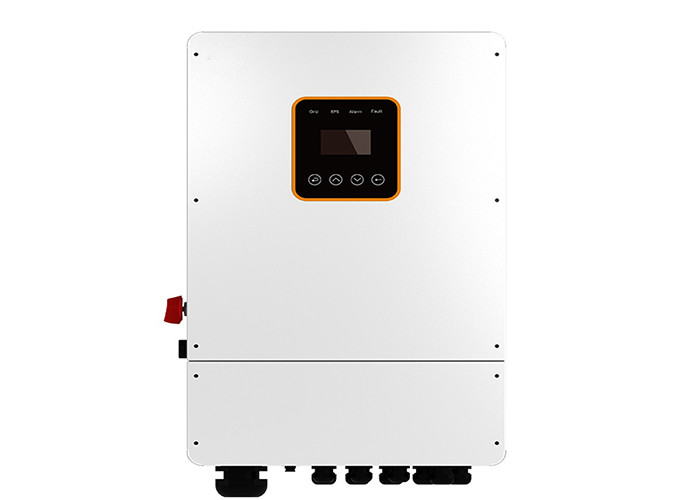

ESS Split Phase Inverter 5-10KW 4 MPPT
FNE single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving and valley filling, and backup power supply. The operating mode of hybrid inverter solar system depends on photovoltaic energy and user preferences. In addition, It supports parallel connection of multiple machines and is suitable for Hybrid energy storage solar system.
Flexible configuration
Support multi-machine parallel mode sharing a battery pack
Single-machine load capacity 100A
Safe and reliable
Parallel available, intelligent BMS management
Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification
Intelligent and efficient
Using split-phase topology and eliminating the transformers, to make the system efficiency higher
Support the diesel generator and the grid access at the same time
Support full power discharge, automatic management of battery charge and discharge
Equipped with CAN port, RS485 port, RS232 port for remote control, DRM port, which makes the system smart and flexible
● Higher yields, reduce electricity costs by 50% per year
● Free energy available at night
● Participate in peak load shifting to gain additional economic benefits
● keeping critical load operation in power off
● Support 7*24 remote service
| Model | SNE5K-DA | SNE6K-DA | SNE8K-DA | SNE10K-DA |
| PV input | ||||
| Max. power(kW) | 7.5kw | 9kw | 12kw | 13kw |
| MPPT voltage range(V) | 120 - 500V | |||
| Max. DC voltage (V) | 500V | |||
| Max.Input current of single MPPT(A) | 12A | |||
| MPPT tracker/strings | 4/2 | |||
| AC output | ||||
| Rated output power(kVA) | 5KVA | 6KVA | 8KVA | 10KVA |
| Max. output current(A) | 24A | 28.8A | 38.3A | 47.8A |
| Ac output voltage(V) | 120/240(split phase), 208(2/3 phase),230 (single phase) | |||
| Frequency (Hz) | 50/60Hz | |||
| Power factor | 0.8leading…0.8lagging | |||
| THDI | < 3% | |||
| AC output topology | Split phase, 2/3 phase, single phase | |||
| Battery | ||||
| Battery voltage range(V) | 40V~58V | |||
| Max. charging voltage(V) | 58V | |||
| Max. charge/discharge current(A) | 120A/120A | 135A/135A | 190A/190A | 210A/210A |
| Battery type | Lithium/Lead-acid | |||
| Communication | CAN,RS485 | |||
| EPS output | ||||
| Rated power(kVA) | 5KVA | 6KVA | 8KVA | 10KVA |
| Rated output voltage(V) | 120/240 (split phase), 208 (2/3 phase),230 (single phase) | |||
| Rated output current(A) | 24A | 28.8A | 38.3A | 47.8A |
| Rated frequency(Hz) | 50/60Hz | |||
| Automatic switching time(ms) | ＜20ms | |||
| Output THDu | < 2% | |||
| Overload capacity | 125%,60S/150%,1S | |||
| General data | ||||
| Max efficiency | ≥98.2% | |||
| North american efficiency | ≥97.2% | |||
| Ingress protection | IP65/NEMA 3R | |||
| Noise emission(dB) | <25dB | <29dB | <29dB | <29dB |
| Cooling | Natural | |||
| Operation temperature | .-25℃ ~ 60℃ | |||
| Relative humidity | 0-95%(non-condensing) | |||
| Altitude | 2,000m(>2,000 Derating) | |||
| Weight(kg) | 41kg | |||
| Dimensions W *D *H (mm) | 430*220*710MM | |||
| Isolation transformer | No | |||
| Self-consumption(W) | <3w | |||
| Display and communication | ||||
| Display | LCD, touch screen | |||
| Interface:RS485/Wifi/4G/ CAN/DRM |
Yes | |||
| Safety standard | UL1741SA all options, UL1699B, CSA 22.2 | |||
| EMC | FCC Part 15, Class B | |||
| On-grid | IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III,NRS | |||
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Rooftop
● Field Power Supply
Product Highlights
ESS Split Phase Inverter 5-10KW 4 MPPT FNE single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving ...
