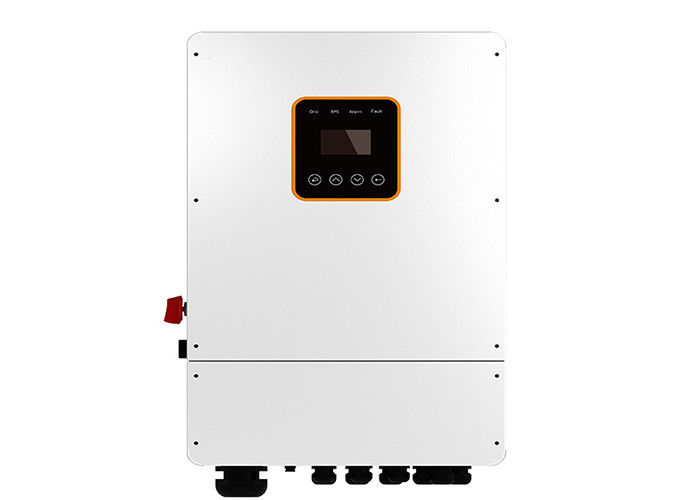

ESS Split Phase Inverter 5-10KW 4 MPPT

Product Details:

Place of Origin:	China
Brand Name:	Fenigal
Certification:	ISO, CE
Model Number:	6000 watt PV Solar System

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiate
Packaging Details:	Standard export carton
Delivery Time:	5-8 working days bulk order negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	depend on quantity

Contact Now

All Products

Lighting Distribution Box (32)

Electrical Distribution Box (31)

Weatherproof Distribution Box (29)

Fiberglass Enclosure Box (26)

ATS Automatic Transfer Switch (53)

Industrial Circuit Breaker (78)

Solar PV System (32)

Electric EV Charging Station (8)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (92)

Moon Balloon Light (108)

Tripod LED Balloons (54)

Inflatable Light Tower (26)

Terminal Block Accessories (6)

Detailed Product Description

Product Name:	6000 Watt PV Solar System	Solar Panel Type:	Grade A Polycrystalline
Output Voltage (V):	230/400V	Inverter:	Growatt Off-grid Inverter
Panel Power:	10000W	Output Frequency:	50/60HZ
Load Power (W):	5-10KW	Solar Panel Max Power Voltage:	47.13V
Solar Module Efficiency:	Mono Panel Upto 22%, Poly Panel Upto 19%

ESS Split Phase Inverter 5-10KW 4 MPPT

FNE single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving and valley filling, and backup power supply. The operating mode of hybrid inverter solar system depends on photovoltaic energy and user preferences. In addition, It supports parallel connection of multiple machines and is suitable for Hybrid energy storage solar system.

Product Features

Flexible configuration

Support multi-machine parallel connection, the maximum parallel connection can reach 8
Support multi-machine parallel mode sharing a battery pack
Single-machine load capacity 100A

Safe and reliable

Battery reverse connection protection, anti-power control function
Parallel available, intelligent BMS management
Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification

Intelligent and efficient

Support parallel SOC equalization control and parallel current sharing control
Using split-phase topology and eliminating the transformers, to make the system efficiency higher
Support the diesel generator and the grid access at the same time

Advanced

Home smart energy management system of PV Hybrid Inverter
Support full power discharge, automatic management of battery charge and discharge
Equipped with CAN port, RS485 port, RS232 port for remote control, DRM port, which makes the system smart and flexible

Benefits

● Higher yields, reduce electricity costs by 50% per year
● Free energy available at night
● Participate in peak load shifting to gain additional economic beneﬁts
● keeping critical load operation in power off
● Support 7*24 remote service

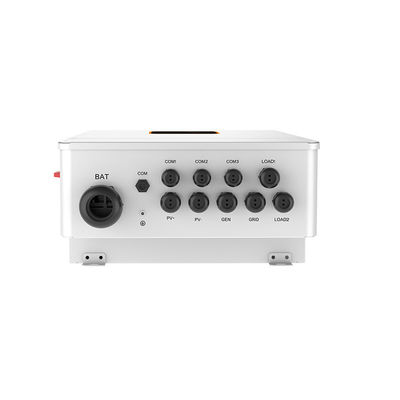

ESS Split Phase Inverter 5-10KW 4 MPPT 0

Model	SNE5K-DA	SNE6K-DA	SNE8K-DA	SNE10K-DA
PV input
Max. power(kW)	7.5kw	9kw	12kw	13kw
MPPT voltage range(V)	120 - 500V
Max. DC voltage (V)	500V
Max.Input current of single MPPT(A)	12A
MPPT tracker/strings	4/2
AC output
Rated output power(kVA)	5KVA	6KVA	8KVA	10KVA
Max. output current(A)	24A	28.8A	38.3A	47.8A
Ac output voltage(V)	120/240(split phase), 208(2/3 phase),230 (single phase)
Frequency (Hz)	50/60Hz
Power factor	0.8leading…0.8lagging
THDI	< 3%
AC output topology	Split phase, 2/3 phase, single phase
Battery
Battery voltage range(V)	40V~58V
Max. charging voltage(V)	58V
Max. charge/discharge current(A)	120A/120A	135A/135A	190A/190A	210A/210A
Battery type	Lithium/Lead-acid
Communication	CAN,RS485
EPS output
Rated power(kVA)	5KVA	6KVA	8KVA	10KVA
Rated output voltage(V)	120/240 (split phase), 208 (2/3 phase),230 (single phase)
Rated output current(A)	24A	28.8A	38.3A	47.8A
Rated frequency(Hz)	50/60Hz
Automatic switching time(ms)	＜20ms
Output THDu	< 2%
Overload capacity	125%,60S/150%,1S
General data
Max efficiency	≥98.2%
North american efficiency	≥97.2%
Ingress protection	IP65/NEMA 3R
Noise emission(dB)	<25dB	<29dB	<29dB	<29dB
Cooling	Natural
Operation temperature	.-25℃ ~ 60℃
Relative humidity	0-95%(non-condensing)
Altitude	2,000m(>2,000 Derating)
Weight(kg)	41kg
Dimensions W D H (mm)	430220710MM
Isolation transformer	No
Self-consumption(W)	<3w
Display and communication
Display	LCD, touch screen
Interface:RS485/Wifi/4G/ CAN/DRM	Yes
Safety standard	UL1741SA all options, UL1699B, CSA 22.2
EMC	FCC Part 15, Class B
On-grid	IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III,NRS

Application

● Solar Villa
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Rooftop
● Field Power Supply

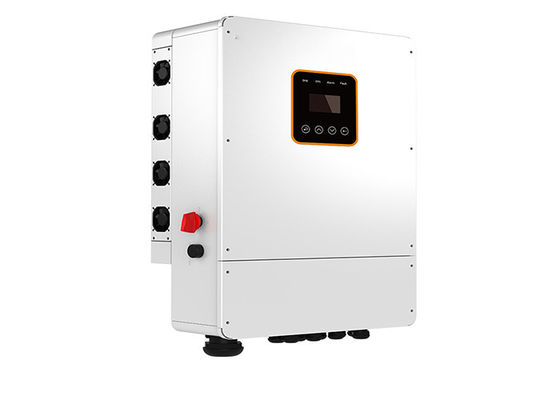

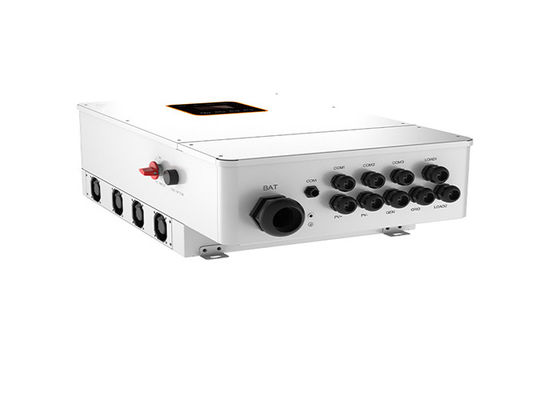

ESS Split Phase Inverter 5-10KW 4 MPPT 1
