High Voltage BYD Blade Cell Residential LiFePO4 Energy Storage Battery 24.576KWH
Product Details
| Product Name: | 6000 Watt PV Solar System | Solar Panel Type: | Grade A Polycrystalline |
|---|---|---|---|
| Output Voltage (V): | 230/400V | Inverter: | Growatt Off-grid Inverter |
| Panel Power: | 10000W | Output Frequency: | 50/60HZ |
| Load Power (W): | 6-12KW | Solar Panel Max Power Voltage: | 47.13V |
| Solar Module Efficiency: | Mono Panel Upto 22%, Poly Panel Upto 19% | ||
| Highlight |
High Voltage BYD Blade Cell,60HZ Blade Cell,LiFePO4 Battery Blade Cell |
||
Product Description

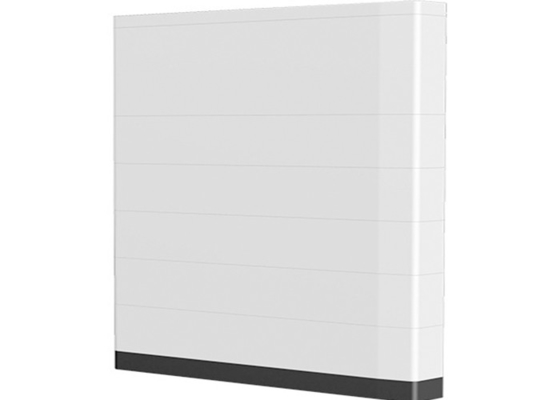

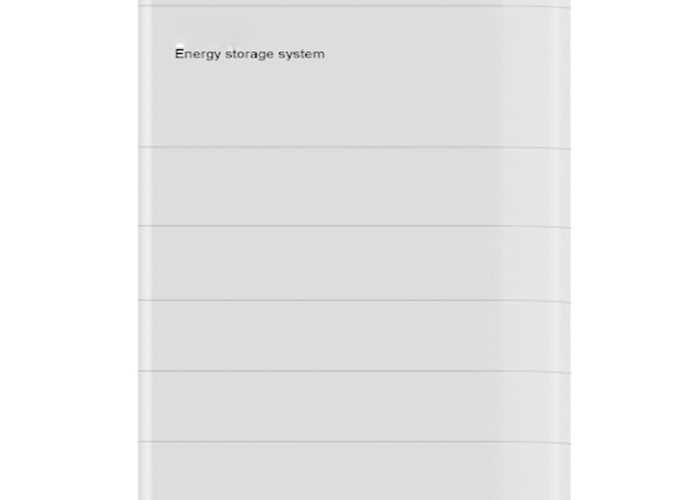

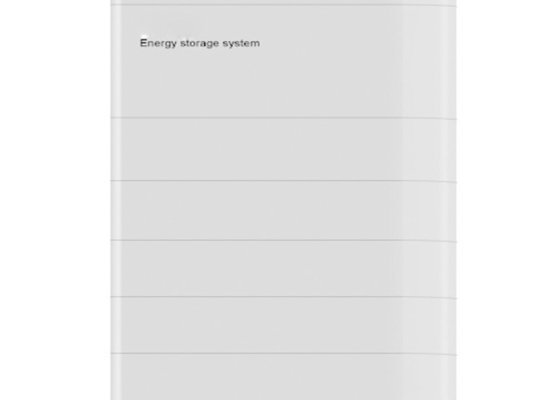

High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH
The 12.288/18.432/24.576KWH residential battery storage system is an intelligent HV solar rechargeable battery unit that enables homeowners to store electricity generated by the residential solar power system or grid for emergency battery power supply for homes. The excess electricity will be stored and provided when needed. FNE1228/1843/2457BL-LFP uses the BYD vehicle grade (LFP) battery, which has safer and more efficient performance. And we will help you design your own battery appearance with BYD original technical solutions. The product stackable design and easy installation.
Flexible configuration
single module is 51.2V 120Ah

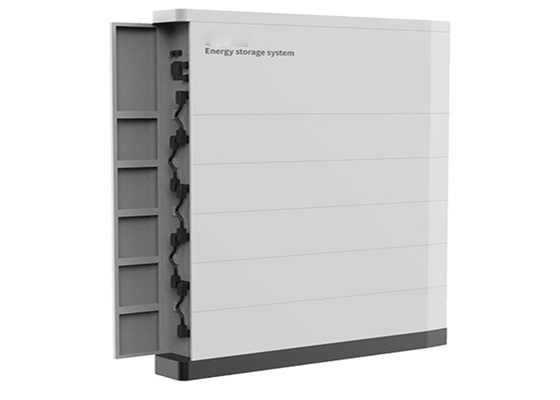

Stackable design and easy installation
Safe and reliable
More safety, longer life cycle
More Usable Energy life up to 10 years；
Applicable for residential
and commercial system applications；
Flexible Scalable from 12 to 24 KWH；
Optimization of high-powered emergency-backup
and off-grid function；
Compatible with CAN / RS485 communication interface
Applicable on grid or hybrid on
and off-grid solar energy storage system
● BYD original battery PACK module
● BYD original BMS/BMU/BCMU
● BYD original structure design
● BYD original technical solutions
● BYD original sales record
| Model |
SNE1228BL-LFP
|
SNE1843BL -LFP
|
SNE2457BL -LFP |
| Performance | |||
| Battery type | Lithium-iron phosphate (LiFePO4) | ||
| Nominal Battery Energy(KWH) | 12.28KWH | 18.43KWH | 24.576KWH |
| Nominal Capacity | 120AH | 120AH | 120AH |
| Nominal Voltage(V) | 102.4V | 153.6V | 204.8V |
| Operating Voltage Range(V) | 86.4V-115.2V | 129.6V-172.8V | 172.8V-230.4V |
| Module Number | 2 | 3 | 4 |
| Standard charging current(A) | 30A @ 25°C | ||
| Max. constant charging current(A) | 120A @ 25°C | ||
| Standard discharging current(A) | 60A @ 25°C | ||
| Max. discharging current(A) | 120A @ 25°C | ||
| Cell technology | BYD Blade Lithium-iron phosphate(LiFePO4) | ||
| Depth of discharge(DOD) | 80% | ||
| Design life | 5000times @80%DOD | ||
| Warranty | 5 years | ||
| Warranty Document Supplied | Yes | ||
| Compatible hybrid inverters | SNE6K -GA/SNE8K -GA/SNE10K -GA/SNE12K -GA or other hybrid inverters | ||
| Protection function | |||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | ||
| Display and Communication | |||
| Display | The information of Battery, such as SOC, battery voltage and so on | ||
| Communication | CAN/RS485 | ||
| General Specification | |||
| Dimension (L*W*H)(MM) | 1171*179*600MM | 1171*179*900MM | 1171*179*1200MM |
| Weight(KG) | 118KG | 165KG | 215KG |
| Shipping state voltage(V) | 3.20~3.30V/CELL | ||
| Shipping status SOC | 20%~30% | ||
| Charging Temperature | -20~+50°C | ||
| Discharging Temperature | -30~+60°C | ||
| Short term storage ambient temperat | -20~+35°C(<3 months, 20%~60%SOC) | ||
| Long term storage ambient temperat | -20 ~+30°C(<1 year, 30%~60% SOC) | ||
| Max. operating altitude | 4,000m(Derating above 2,000m) | ||
| Protection degree | IP21,indoor installation | ||
| Relative humidity | 5%-95% | ||
| Cooling | Natural convection | ||
| Noise emission | <29 db | ||
| Certification | TUV/CE/IEC/UN38.3/UL1973 | ||
● Household
● Farm
● Base Station
● Field Power Supply
