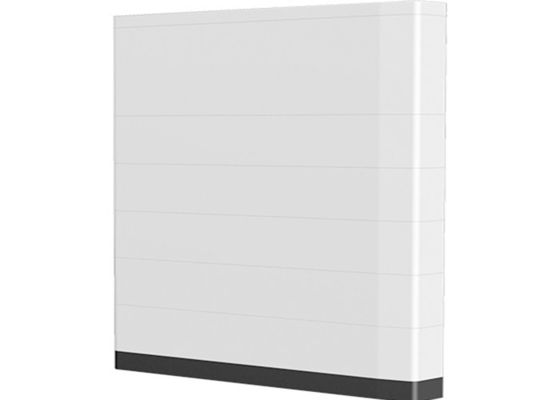

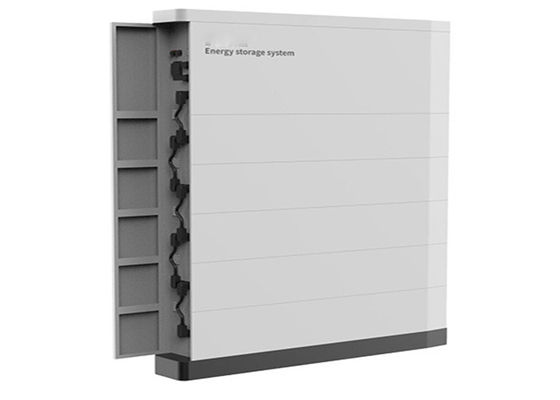

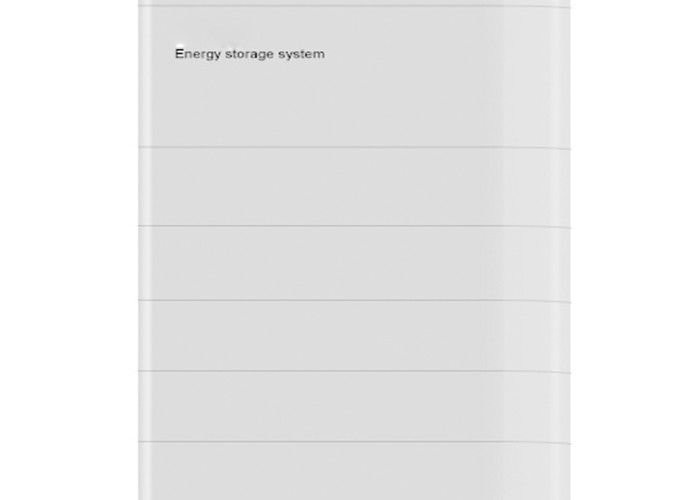

High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH

High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH

  • High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH
  • High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH
  • High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH
High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: ISO, CE
Model Number: 6000 watt PV Solar System
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: depend on quantity
Contact Now
All Products
Lighting Distribution Box (32)
Electrical Distribution Box (31)
Weatherproof Distribution Box (29)
Fiberglass Enclosure Box (26)
ATS Automatic Transfer Switch (53)
Industrial Circuit Breaker (78)
Solar PV System (32)
Electric EV Charging Station (8)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (92)
Moon Balloon Light (108)
Tripod LED Balloons (54)
Inflatable Light Tower (26)
Terminal Block Accessories (6)
Detailed Product Description
Product Name: 6000 Watt PV Solar System Solar Panel Type: Grade A Polycrystalline
Output Voltage (V): 230/400V Inverter: Growatt Off-grid Inverter
Panel Power: 10000W Output Frequency: 50/60HZ
Load Power (W): 6-12KW Solar Panel Max Power Voltage: 47.13V
Solar Module Efficiency: Mono Panel Upto 22%, Poly Panel Upto 19%

High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH

The 12.288/18.432/24.576KWH residential battery storage system is an intelligent HV solar rechargeable battery unit that enables homeowners to store electricity generated by the residential solar power system or grid for emergency battery power supply for homes. The excess electricity will be stored and provided when needed. FNE1228/1843/2457BL-LFP uses the BYD vehicle grade (LFP) battery, which has safer and more efficient performance. And we will help you design your own battery appearance with BYD original technical solutions. The product stackable design and easy installation.



Product Features



Flexible configuration

High-voltage LiFePO4 battery module
single module is 51.2V 120Ah
Stackable design and easy installation

Safe and reliable

BYD vehicle grade (LFP) battery:
More safety, longer life cycle
More Usable Energy life up to 10 years；
Applicable for residential
and commercial system applications；
Flexible Scalable from 12 to 24 KWH；
Optimization of high-powered emergency-backup
and off-grid function；




Abundant configuration
Matching with leading inverter brands
Compatible with CAN / RS485 communication interface
Applicable on grid or hybrid on
and off-grid solar energy storage system
Benefits
● BYD original blade battery cell
● BYD original battery PACK module
● BYD original BMS/BMU/BCMU
● BYD original structure design
● BYD original technical solutions
● BYD original sales record



High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH 0

Model
SNE1228BL-LFP
SNE1843BL -LFP
 SNE2457BL -LFP
Performance
Battery type Lithium-iron phosphate (LiFePO4)
Nominal Battery Energy(KWH) 12.28KWH 18.43KWH 24.576KWH
Nominal Capacity 120AH 120AH 120AH
Nominal Voltage(V) 102.4V 153.6V 204.8V
Operating Voltage Range(V) 86.4V-115.2V 129.6V-172.8V 172.8V-230.4V
Module Number 2 3 4
Standard charging current(A) 30A @ 25°C
Max. constant charging current(A) 120A @ 25°C
Standard discharging current(A) 60A @ 25°C
Max. discharging current(A) 120A @ 25°C
Cell technology BYD Blade Lithium-iron phosphate(LiFePO4)
Depth of discharge(DOD) 80%
Design life 5000times @80%DOD
Warranty 5 years
Warranty Document Supplied Yes
Compatible hybrid inverters SNE6K -GA/SNE8K -GA/SNE10K -GA/SNE12K -GA or other hybrid inverters
Protection function
Protection Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function
Display and Communication
Display The information of Battery, such as SOC, battery voltage and so on
Communication CAN/RS485
General Specification
Dimension (L*W*H)(MM) 1171*179*600MM 1171*179*900MM 1171*179*1200MM
Weight(KG) 118KG 165KG 215KG
Shipping state voltage(V) 3.20~3.30V/CELL
Shipping status SOC 20%~30%
Charging Temperature -20~+50°C
Discharging Temperature -30~+60°C
Short term storage ambient temperat -20~+35°C(<3 months, 20%~60%SOC)
Long term storage ambient temperat -20 ~+30°C(<1 year, 30%~60% SOC)
Max. operating altitude 4,000m(Derating above 2,000m)
Protection degree IP21,indoor installation
Relative humidity 5%-95%
Cooling Natural convection
Noise emission <29 db
Certification TUV/CE/IEC/UN38.3/UL1973
Application
● Villa
● Household
● Farm
● Base Station
● Field Power Supply

High Voltage Residential LiFePO4 Energy Storage Battery-BYD Blade Cell 24.576KWH 1
