High Voltage Residential BYD Cell LiFePO4 Energy Storage Battery 15.36KWH 20.48KWH
Product Details
| Product Name: | 6000 Watt PV Solar System | Solar Panel Type: | Grade A Polycrystalline |
|---|---|---|---|
| Output Voltage (V): | 230/400V | Inverter: | Growatt Off-grid Inverter |
| Panel Power: | 10000W | Output Frequency: | 50/60HZ |
| Load Power (W): | 6-12KW | Solar Panel Max Power Voltage: | 51.2V |
| Solar Module Efficiency: | Mono Panel Upto 22%, Poly Panel Upto 19% | ||
| Highlight |
High Voltage Residential BYD Cell,LiFePO4 Energy Storage Battery BYD Cell,20.48KWH Energy Storage Battery Cell |
||
Product Description

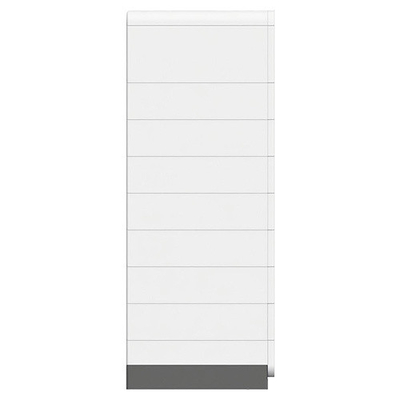

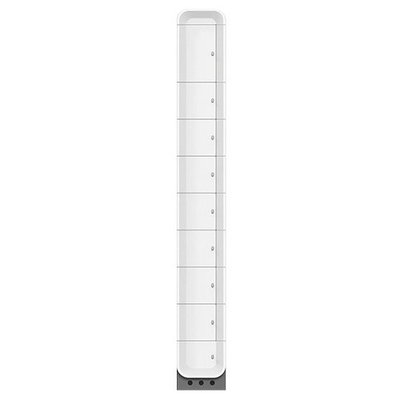

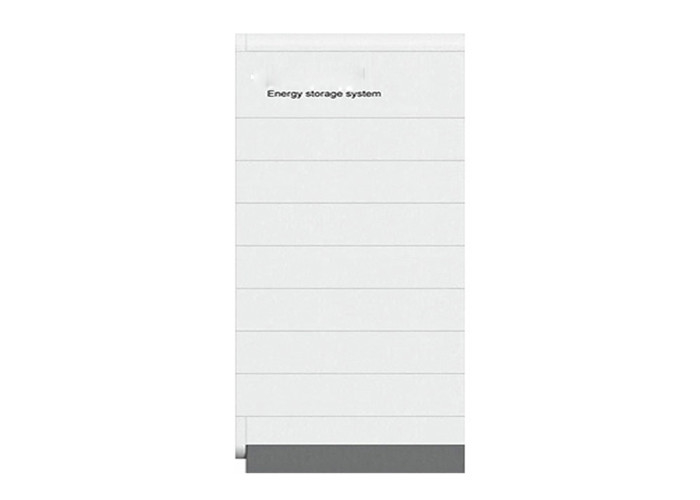

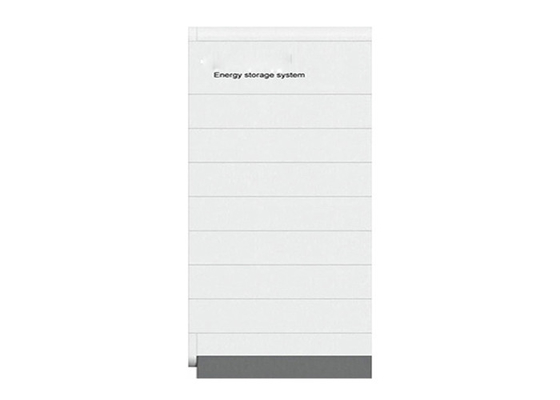

High Voltage Residential LiFePO4 Energy Storage Battery-BYD Cell 15.36KWH 20.48KWH
The 10.24-20.48KWH high voltage LiFePO4 battery is a high-tech product developed to meet the requirements of new solar battery storage system. It has the characteristics of modular, lightweight, intelligent, easy to install, portable. And all internal structures have been remotely certified and confirmed by BYD. It uses the BYD vehicle grade (LFP) battery to meet residential energy storage demands, the modular design can meet your current and future solar energy storage needs.
Flexible configuration
single module is 51.2V 50Ah

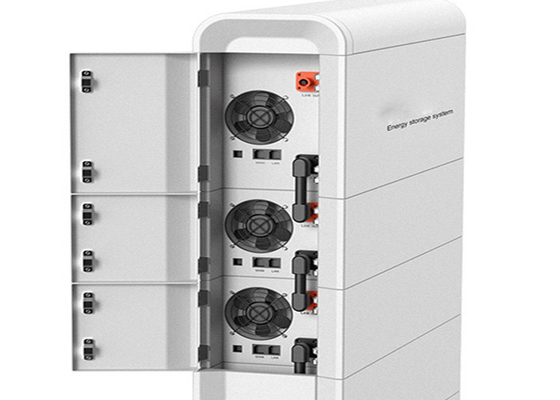

Stackable design and easy installation
Safe and reliable
More safety, longer life cycle
More Usable Energy life up to 10 years；
Applicable for residential
and commercial system applications；
Flexible Scalable from 12 to 24 KWH；
Optimization of high-powered emergency-backup
and off-grid function；
More Safety, Longer life Cycle
More Usable Energy life up to 10 years；
Applicable for residential and commercial system applications；
Flexible Scalable from 10 to 20 KWH;
Optimization of high-powered emergency-backup and off-grid function；
● BYD original battery PACK module
● BYD original BMS/BMU/BCMU
● BYD original structure design
● BYD original technical solutions
● BYD original sales record
| Model | SNE1024LFP | SNE1536LFP | SNE2048LFP |
| Performance | |||
| Battery type | Lithium-iron phosphate (LiFePO4) | ||
| Nominal Battery Energy(KWH) | 10.24KWH | 15.36KWH | 20.48KWH |
| Nominal Capacity | 50AH | 50AH | 50AH |
| Nominal Voltage(V) | 204.8V | 307.2V | 409.6V |
| Operating Voltage Range(V) | 172.8V~224.64V | 259.2V~345.6V | 345.6V~460.8V |
| Number of battery Modules | 4 | 6 | 8 |
| MAX. constant charging current(A) | 50A(@25°C) | ||
| Recommend charge current(A) | 10~25A | ||
| Max.constant discharging current(A) | 50A(@25°C) | ||
| Depth of discharge(DOD) | 80% | ||
| Cell technology | BYD Lithium-iron phosphate (LiFeP04) | ||
| Design life | 5000times @80%DOD | ||
| Warranty | 5 years | ||
| Warranty Document Supplied | Yes | ||
| Compatible hybrid inverters | SNE8K-G3/SNE10K-G3/SNE12K-G3 or other hybrid inverters | ||
| Protection function | |||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | ||
| Display and Communication | |||
| Display | The information of Battery, such as SOC, battery voltage and so on | ||
| Communication | CAN/RS485 | ||
| General Specification | |||
| Dimension (L*W*H)(MM) | 600*210*1140MM | 600*210*1300MM | 600*210*1620MM |
| Weight(KG) | 155.5KG | 182KG | 235KG |
| Operating Temperature | -20°C-+55°C | ||
| Max. operating altitude | 4,000m(Derating above 2,000m) | ||
| Protection degree | IP21,indoor installation | ||
| Relative humidity | 5%-95% | ||
| Cooling | Natural convection | ||
| Noise emission | <29 db | ||
| Certification | TUV/CE/IEC/UN38.3/UL1973.. .. | ||
● Household
● Farm
● Base Station
● Field Power Supply
