Single Phase Energy Storage System 3 - 6KW 4.8KWH - 30KWH
Product Details
| Product Name: | 6000 Watt PV Solar System | Solar Panel Type: | Grade A Polycrystalline |
|---|---|---|---|
| Output Voltage (V): | 230/400V | Inverter: | Growatt Off-grid Inverter |
| Panel Power: | 10000W | Output Frequency: | 50/60HZ |
| Load Power (W): | 3-6KW | Solar Panel Max Power Voltage: | 51.2V |
| Solar Module Efficiency: | Mono Panel Upto 22%, Poly Panel Upto 19% | ||
| Highlight |
Grade A Polycrystalline PV Energy System,Single Phase Energy Storage System 6KW,30KWH Energy Storage System |
||
Product Description

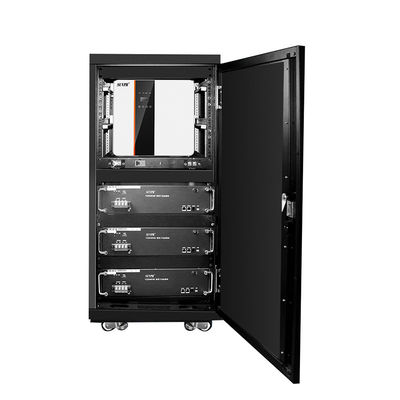

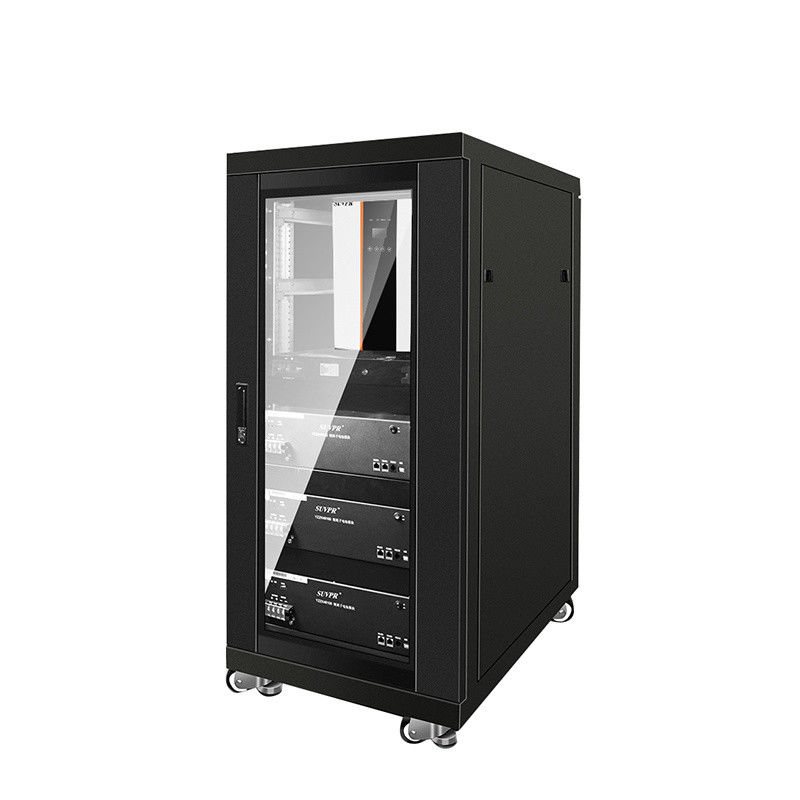

Single Phase Energy Storage System 3-6KW 4.8KWH-30KWH
Fenigal Indoor cabinet ESS compatible with hybrid inverter 5kw, most 19-inch-rack-mounted 48V battery and battery management system(BMS) for residential energy storage system application . The capacity of the system can be flexibly configured between 4.8kWh ~30.72kWh, it has a cycle life of more than 10 years and is suitable for installation in villas, office areas and other scenarios.
Flexible configuration
Support battery expansion
Safe and reliable
Support peak load shifting and important load backup
Compatible with CANbus/RS485 communication interface
● Highly cost-effective
● Support mainstream hybrid inverters
● Capacity can be flexibly configured
● Support 7*24 remote service
| Model | SNE3K-D1-A | SNE3.6K-D1-A | SNE4K-D1-A | SNE4.6K-D1-A | SNE5K-D1-A | SNE6K-D1-A |
| Input (PV) | ||||||
| Max. Input Power | 4600W | 4600W | 6000W | 6000W | 7000W | 7000W |
| Max. PV Voltage(V) | 550V | |||||
| MPPT Voltage Range(V) | 125~550V | |||||
| Max.input current of single MPPT(A) | 14A | |||||
| MPPT Tracker/Strings | 2/1 | |||||
| AC Output | ||||||
| Rated output power(W) | 3000W | 3600W | 4000W | 4600W | 5000W | 5600W |
| Rated output Current(A) | 13A | 16A | 17.4A | 20A | 21.7A | 26A |
| Rated grid voltage(v) | 230Vac | |||||
| Grid voltage range(V) | 176Vac~270Vac | |||||
| Frequency (Hz) | 50Hz/60Hz | |||||
| THDI | <3% | |||||
| PF | 0.8lagging-0.8leading | |||||
| AC output topology | L+N+PE | |||||
| EPS Output | ||||||
| Rated power (VA) | 3000VA | 3600VA | 4000VA | 4600VA | 5000VA | 6000VA |
| Rated output current(A) | 13A | 16A | 17.4A | 20A | 21.7A | 26A |
| Rated output voltage(V) | 230V | |||||
| Rated frequency (Hz) | 50Hz/60Hz | |||||
| Automatic switching time (ms) | <20ms | |||||
| THDU | <2% | |||||
| Overload capacity | 110%, 30S/120%, 10S/150%, 0.02S | |||||
| Battery technical parameters | ||||||
| battery module | Customizable | |||||
| Battery capacity | 4.8kWh~30.72kWh | |||||
| MAX. parallel batteries | 6 | |||||
| Service Life | ＞10years(25℃/77F) | |||||
| Charge/Discharge Current | 95/62.5A | 95/76.6A | 95/83.3A | 95/95.8A | 95/110A | 95/110A |
| System parameters | ||||||
| Protection class | IP20 | |||||
| MPPT efficiency | 99.90% | |||||
| Max. effi ciency | 97.60% | |||||
| Self-consumption | ＜ 3W | |||||
| Interface:RS485/Wifi/4G/ CAN/DRM |
yes /opt/opt/yes/yes | |||||
| display | LCD | |||||
| Operating temperature | -10°C~60°C | |||||
| Cooling | forced air cooling | |||||
| Relative Humidity | 15%~85%(non-condensing) | |||||
| Noise emission (dB) | <50dB | |||||
| Altitude | 2,000m(>2,000 Derating) | |||||
| Dimensions (W/D/H) mm | 600*600*1610mm/600*600*1833mm | |||||
| Weight | Customized | |||||
| Safety regulations | IEC 62109-1&-2, IEC 62477, CE-EMC | |||||
● Telecom Base Station
● Solar Plus Storage
● Farm
● Residential Rooftop
● Field Power Supply
Product Highlights
Single Phase Energy Storage System 3-6KW 4.8KWH-30KWH Fenigal Indoor cabinet ESS compatible with hybrid inverter 5kw, most 19-inch-rack-mounted 48V battery and battery management system(BMS) for residential energy storage system application . The capacity of the system can be flexibly configured ...
