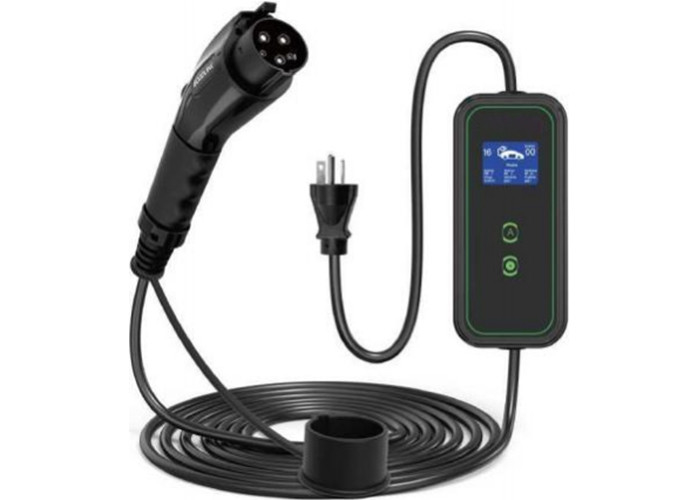

Portable Electric EV Vehicle Charging Gun 16A/32A/40A On-Board Charging
Product Details
| Model: | EV Charging Cable | Voltage: | 110V-250V |
|---|---|---|---|
| Power: | 3.5kw/7kw/9kw | Operating Temperature: | -20-55℃ |
| Output Current: | 16A/32A/40A | Application: | AC Home Charging |
| Total Length: | 0.96 Inch LCD Screen | Wire Material: | Plug And Play |
| Highlight |
Portable Electric Vehicle Charging Gun,EV Vehicle Charging Gun 16A,9kw EV Charging Gun |
||
Product Description
New Energy Electric Vehicle Charging Gun 16A/32A/40A On-board Charging Portable EV Charger
-Factory direct sales, global supply, welcome to our factory for business negotiation
- Own the software (single chip microcomputer) development of the core technology PCBA board
-True dual temperature control technology (plug + control box), efficient and continuous work, temperature control is one of the most important indexes of the charging gun
- Strong and weak electricity separation design on the power board and software board (double board design, strong signal transmission, no interference)
-Real lightning protection design
- Customizable: charging gun color, wire color, wire length, appearance, please consult customer service for details
Technical paramete:
| Technical paramete | |||
| Model | EV16A01US | EV32A01US | EV40A01US |
|
Adjustable Current |
16A(8/ 10/ 13/ 16A) | 32A( 16/20/24/32A) | 40A ( 16/20/24/32/40 A) |
|
Power |
3.5 KW | 7KW | 9.6 KW |
| Cable Specification |
3*14AWG+2*18AWG TPE OD: 14.2 |
3*10AWG+2*18AWG TPE OD: 16.5 |
2*9AWG+ 10AWG+2*18AWG TPE OD: 16.5 |
| Case Material | Thermoplastic (flame retardant grade UL94-0) | ||
| Voltage | 110V-250V | ||
| User Interface | LED indicator+LCD display(2.4 inch) | ||
| Standard | SAE J1772 EN 61851- 1:2019 | ||
| Charging Interface | SAE J1772 Plug +5M cable or custom cable length & color | ||
| Product Dimensions | GB/T plug: 220*65*64mm Control Box: 218*100*60mm | ||
| Degree of Protection | Charging plug: IP67 Control box: IP54 | ||
| Operating Temperature | -20°C to 55°C | ||
| Product Performance |
Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection,Over temperature protection (85°C). Lightning protection. Short circuit protection, flame retardant. |
||
Production and testing equipment:
Other Options:
Our Service:
1. OEM / ODM services are accepted.
2. Customization of packaging, logo or capacity.
3. Trade Terms, EXW, FOB or per clients' requirement.
4. Shipment can be arranged by sea, by air, freight company, etc.
5. Most products are certified with CE / ROHS / FCC / MSDS, etc.
