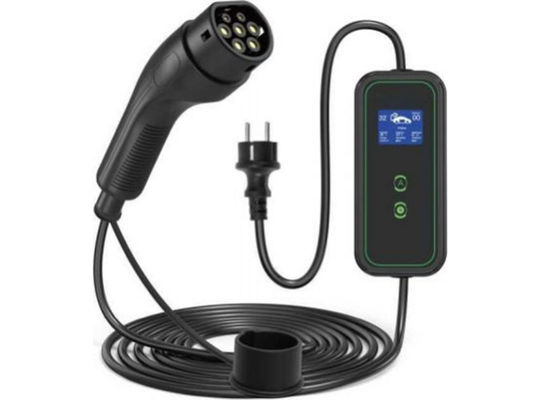

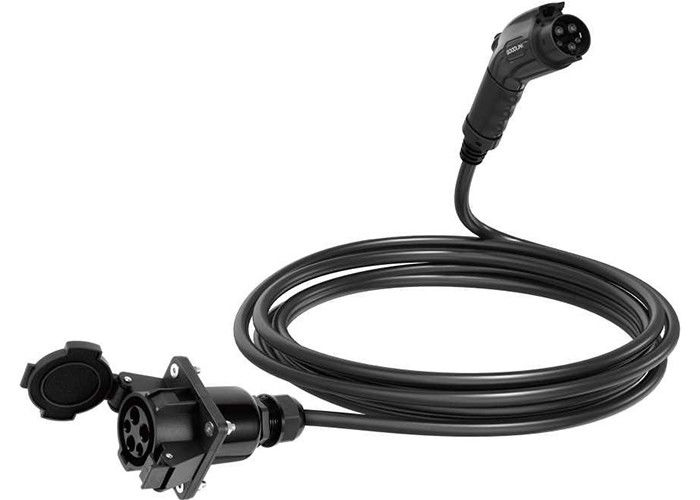

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board

  • Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board
  • Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board
Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE
Model Number: EC16/21/40
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: USD600-800
Packaging Details: Standard Export Carton
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10,000/month
Contact Now
Detailed Product Description
Model: EV Charging Cable‍ Voltage: 220V
Power: 3.5kw/7kw Operating Temperature: -20-55℃
Output Current: 16A/32A Application: AC Home Charging
Total Length: 0.96 Inch LCD Screen Wire Material: Plug And Play
High Light:

Energy Electric Vehicle Charging Gun

,

32A Electric Vehicle Charging Gun

,

16A Portable EV Charger

New Energy Electric Vehicle Charging Gun 16A/32A On-board Charging Portable EV Charger



-Factory direct sales, global supply, welcome to our factory for business negotiation

- Own the software (single chip microcomputer) development of the core technology PCBA board

-True dual temperature control technology (plug + control box), efficient and continuous work, temperature control is one of the most important indexes of the charging gun

- Strong and weak electricity separation design on the power board and software board (double board design, strong signal transmission, no interference)

-Real lightning protection design

- Customizable: charging gun color, wire color, wire length, appearance, please consult customer service for details



Technical paramete:



Technical paramete
Model EV16A01EU EV32A01EU

Adjustable Current

16A (8/ 10/ 13/ 16A) 32A( 16/20/24/32A)

Power

3.5 KW 7KW
Cable Specification

3*2.5mm2+2*0.5mm2

TPU OD: 10.8

3*6mm2+2*0.5mm2

TPU OD: 13.5

Case Material Thermoplastic (flame retardant grade UL94-0)
Voltage 220V
User Interface LED indicator+LCD display(2.4 inch)
Standard

EN IEC 61851- 1:2019 , EN IEC 61000-6- 1:2019 ,

EN IEC 61000-6-2:2019 EN 圧C 61000-6-32021 , EN IEC 61000-6-4:2019

Charging Interface Type 2 Plug +5M cable or custom cable length & color
Product Dimensions GB/T plug: 210*69*62 mm Control Box: 218*100*60mm
Degree of Protection Charging plug: IP67 Control box: IP54
Operating Temperature -20°C to 55°C
Product Performance

Over voltage protection. Under votage protection. Over load protection. Leakage Protection. Ground protection,Over temperature protection (85°C). Lightning protection. Short circuit protection, flame retardant.



Materials:

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber



Functions:
With full protection to avoid all kinds of charging safety hazards,it will automatic power off after the vehicle is fully charged,to protect the car battery and prolong the working life.



Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 0

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 1

Application Scenario:



Charging outdoors: The portable charging cable can be easily charged outdoors, without having to look for fixed charging piles or charging stations, providing a more convenient charging experience. Users can charge their cars anytime, anywhere, whether in a garage at home, in a parking space, or in the parking lot of a commercial facility.



Emergency charging: When the power of the new energy vehicle is low, the portable charging cable can be used as a backup charging device for supplementary power in emergency situations, such as long-distance travel or when there is no charging pile nearby.



Charging in public places: In addition to fixed charging piles or charging stations, some public places may not be equipped with charging facilities. In this case, the portable charging cable can be used as a temporary charging solution to provide users with the convenience of charging.



Shared charging service: Some companies or institutions can provide a shared service for portable charging guns, similar to shared bicycles or shared charging treasures. Users can rent or order a portable charger through the mobile app, and then use it for temporary charging.



It is worth noting that the portable charging cable usually needs to be connected to an AC power source, so it is necessary to ensure the safety and compliance of the charging device when using it. In addition, the power and charging speed of the charging gun will also vary, and users need to choose a suitable charging gun according to their needs.

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 2                              Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 3                             Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 4



Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 5

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 6

Production and testing equipment:

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 7

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 8Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 9

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 10

Other Options:

Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 11Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 12Energy Electric Vehicle Charging Gun 16A/32A Portable EV Charger On-Board 13

Our Service:
1. OEM / ODM services are accepted.
2. Customization of packaging, logo or capacity.
3. Trade Terms, EXW, FOB or per clients' requirement.
4. Shipment can be arranged by sea, by air, freight company, etc.
5. Most products are certified with CE / ROHS / FCC / MSDS, etc.
