| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE |
| Model Number: | ECCC |
| Minimum Order Quantity: | 2 sets |
|---|---|
| Price: | USD600-800 |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000/month |
| Model: | Extension Cable | Operating Temperature: | -20-55℃ |
|---|---|---|---|
| Cable Length: | Customized | Application: | AC Home Charging |
| IP Grade: | IP67 | Wire Material: | Plug And Play |
| High Light: | IP67 EU Electric Vehicle Charging Cable,Customizable Electric Vehicle Charging Extension Cable |
||

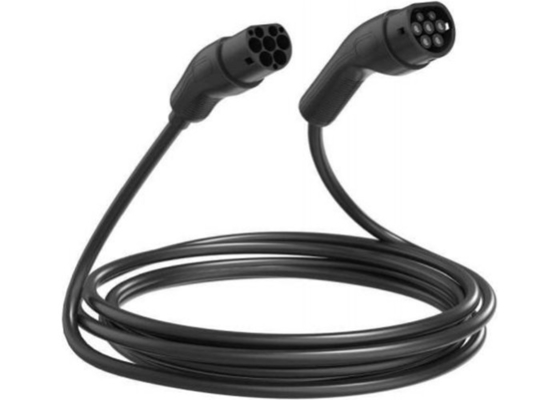

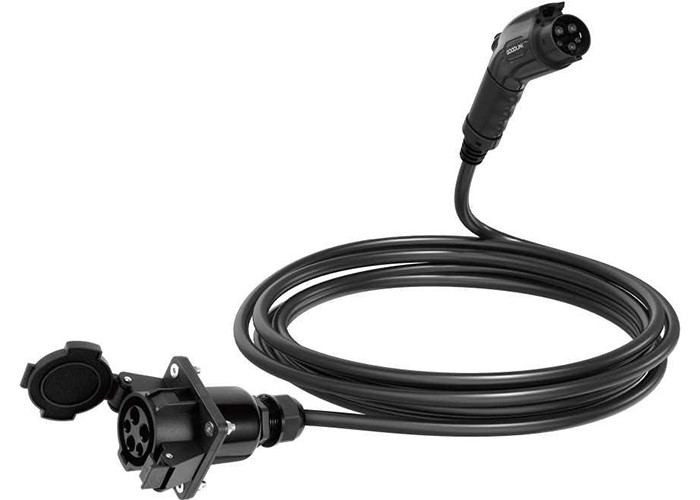

Customizable IP67 EU/US Electric Vehicle Charging Cable
The new energy vehicle charging extension cable is a cable device that connects the charging pile and the charging port of the car to extend the charging distance. This cable is usually made of conductive material, which is resistant to high voltage and abrasion.
The application of new energy vehicle charging extension cord is very extensive. Here are some common application scenarios:
1. Home charging: If the user's charging pile is far away from the car, the charging extension cable can be used to connect the two to facilitate charging at home.
2. Public charging stations: The location of charging piles in some public charging stations cannot be directly close to the charging port of the car. At this time, charging extension cables can come in handy, allowing users to choose the location of charging piles more flexibly.
3. Commercial charging facilities: For example, parking lots, shopping centers, hotels and other places may provide charging pile services. The charging extension cable can help users connect the charging pile with the car, and it can be conveniently charged regardless of the location of the charging pile.
4. Travel charging: When users travel or drive long distances, they may arrive at a place with only one charging pile. If the location of the charging pile is inconvenient, the charging extension cable can provide more flexible options so that the user can reach a more convenient charging location.
Whether used in home, business or travel scenarios, the new energy vehicle charging extension cable is a convenient and practical charging device, which can effectively solve the problem of insufficient charging distance and provide users with a more convenient charging experience. When using charging extension cables, users need to abide by relevant safety operation regulations and ensure that the charging extension cables used meet relevant standards and certification requirements to ensure the safety and reliability of the charging process.
US Standard:
The product complies with low-voltage directive 2014/35/EU, IEC61,851-1:2019
IP67, weather proof; Leakage current protection; Impact resistance
Charging state and operation error are indicated by LED
| Technical paramete(US) | |||
| Model | CB32A01US | CB40A01US | |
|
Power |
7 KW | 9KW | |
|
Voltage |
1 10V-250V | ||
| Cable Specification |
3*10AWG+2*18AWG TPE OD: 16 5 |
2*9AWG+ 10AWG+2*18AWG TPE OD: 16 5 |
|
| Case Material | Thermoplastic (flame retardant grade UL94-0) | ||
| Standard | SAE J1772 | ||
| Mechanical life | No-load plug in/pull out＞10000times | ||
| Charging interface |
SAE J1772 Plug +5M cable or custom cable length & color |
||
| Product Dimensions | GB/T plug: 220*65*64mm | ||
| Degree of Protection | Charging plug: IP67 | ||
| Operating Temperature | -20°C to 55°C | ||
EU Standard:
The product complies with low-voltage directive 2014/35/EU
Weatherproof; Leakage current protection; Impact resistance
Charging state and operation error are indicated by LED and LCD
| Technical paramete(EU) | |||
| Model | CB32A01EU | CB32A03EU | |
| Power | 7 KW | 9.6KW | |
| Voltage | 220V | 380V480V | |
| Cable Specification |
3*6mm2+2*0.5mm2 TPU OD:13 5 |
5*6mm2+2*0.5mm2 TPU OD: 16 8 |
|
| Case Material | Thermoplastic (flame retardant grade UL94-0) | ||
| Standard | EN IEC 61851- 1:2019 | ||
| Mechanical life | No-load plug in/pull out＞10000times | ||
| Charging interface | Type 2 Plug +5M cable or custom cable length & color | ||
| Product Dimensions | GB/T plug: 210*69*62 mm | ||
| Degree of Protection | Charging plug: IP67 | ||
| Operating Temperature | -20°C to 55°C | ||
-Factory direct sales, global supply, welcome to our factory for business negotiation
- Own the software (single chip microcomputer) development of the core technology PCBA board
-True dual temperature control technology (plug + control box), efficient and continuous work, temperature control is one of the most important indexes of the charging gun
- Strong and weak electricity separation design on the power board and software board (double board design, strong signal transmission, no interference)
-Real lightning protection design
- Customizable: charging gun color, wire color, wire length, appearance, please consult customer service for details
Production and testing equipment:
Other Options:
Our Service:
1. OEM / ODM services are accepted.
2. Customization of packaging, logo or capacity.
3. Trade Terms, EXW, FOB or per clients' requirement.
4. Shipment can be arranged by sea, by air, freight company, etc.
5. Most products are certified with CE / ROHS / FCC / MSDS, etc.
