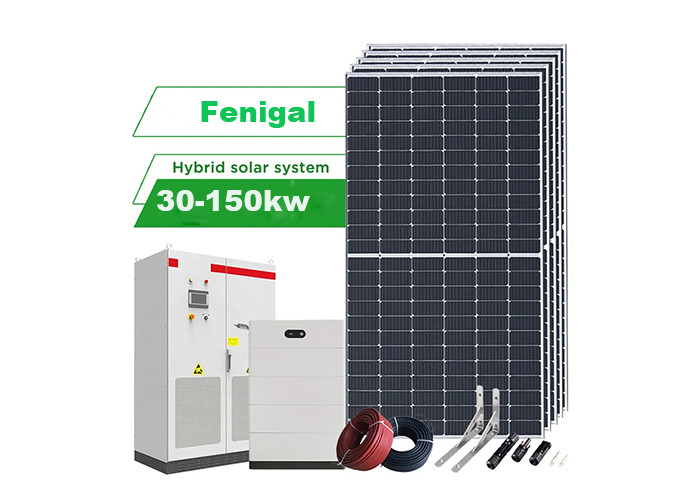

High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery

High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery

  • High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery
  • High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery
High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: ISO, CE
Model Number: PV Solar System
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: depend on quantity
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Solar Panel Type: Monocrystalline Silicon Battery Type: Lead-Acid, Lithium Ion
Controller Type: MPPT Mounting Type: Roof Mounting
Load Power (W): 30-150KW Output Voltage (V): 220/230/110/240V, 110/120/220/230V
Output Frequency: 50/60Hz Work Time (h): 24 Hours
Highlight:

Solar PV System With Lifepo4

,

Lithium Battery Hybrid Solar Power System

,

Hybrid Solar Power System 30KW

High Efficiency Hybrid Solar Power System Industrial 30KW -150KW With Lifepo4 Or Lithium Battery Good Quality

High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery 0

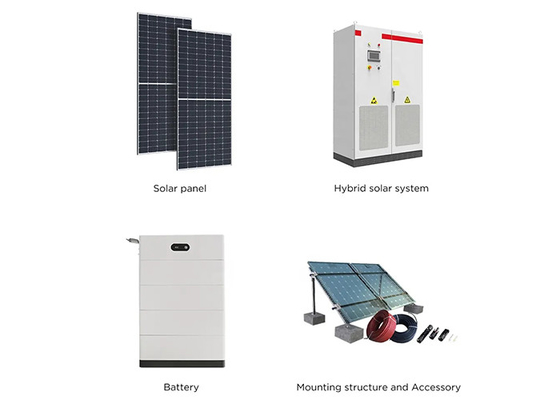

Items Configuration
  Model No. BSM30K-HY BSM50K-HY BSM100K-HY BSM150K-HY BSM250K-HY BSM500K-HY
Solar Panel Quantity 68 units 119 units 238 units 340 units 595 units 1190 units
Model BSM455M-72HPH (Mono)
Max Power 455W   Size 2094*1038*35mm
Voc 49.8V   Vmp 41.1V
Isc 11.61A   Imp 11.08A
Hybrid Inverter Quantity 1 unit 1 unit 1 unit 1 unit 1 unit 1 unit
Model BPS30 BPS50 BPS100 BPS150 BPS250 BPS500
Max PV Power 60/120KW 120/180/240KW 300/360KW 600/660/720KW
MPPT Operating Voltage 200V-850VDC
Battery Voltage 150V-850V 420V-850V 500V-850V
AC Voltage 3P+E, 4wires , 400V
Lithium Battery Model BSM-HV series
Battery Voltage Range 150~850V 420~850V 500~850V
Battery Bank Capacity (customized) 60KWH 98.4KWH 196.8KWH 295.2KWH 545KWH 1091KWH

Battery Bank Capacity

(90% DOD)

 54KWH 88.56KWH 177.12KWH 265.68KWH 490.5KWH 981.9KWH
BOS Battery Combiner Box 1 set
Mounting Brackets 1 set
DC Combiner Box 4 in 1out 7 in 2 out 14 in 2 out 20 in 3 out 14 in 2 out 20 in 3 out
PV Cable 4mm2 400m 800m 1600m 2200m 1600m 2200m
DC Breakers Optional
MC4 Connectors 20 pairs 26 pairs 50 pairs 70 pairs 50 pairs 70 pairs



High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery 1

High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery 2

PACKAGING AND TRANSPORTATION:



High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery 3

High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery 4

About Us:

High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery 5

Project Case:

High Efficiency Hybrid Solar Power System 30KW -150KW With Lifepo4 Or Lithium Battery 6



Tag:

3000w solar panels and inverter system,

apartment solar panels and inverter system,

solar panels and inverter system 3000w
