Electric Fiberglass Waterproof Cabinet SMC Enclosure Cable Distribution Box
Product Details
| Surface Treatment: | Concave Or Smooth Or Gritted | Processing Service: | Moulding |
|---|---|---|---|
| Color: | White | Material: | Fibreglass Reinforced Plastic |
| Feature: | High Strength | Length: | Customized Length |
| Highlight |
Electric Fiberglass SMC Enclosure,Waterproof Cabinet SMC Enclosure,SMC Enclosure Cable Distribution Box |
||
Product Description

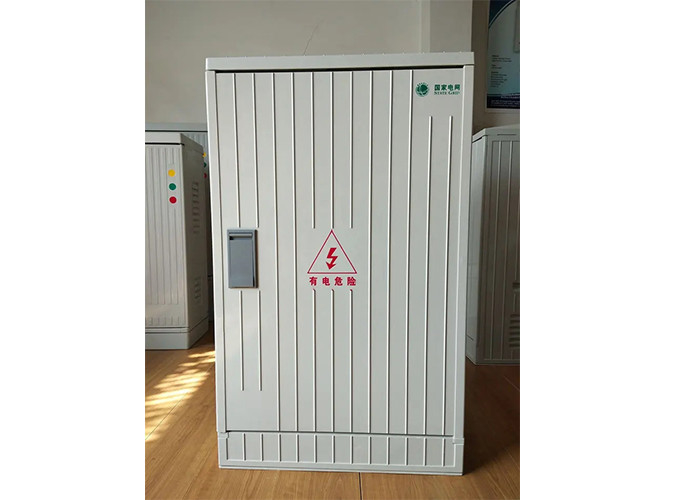

Fiberglass Waterproof Electric Cabinet SMC Enclosure Cable Distribution Box
Structural characteristics:
1. SMC composite materials have the advantages of high mechanical strength, light weight, corrosion resistance, long service life, high dielectric strength, arc resistance, flame retardancy, etc.
2. The SMC outdoor cable distribution box is easy to install and carry
3. Heat insulation, anti-condensation
4. The shape is unique and beautiful, beautifying the urban environment.
Technical parameters:
1. The product has passed CCC, CE, ROHS and other certifications;
2. High protection level; IP66/67
3. Cabinet material: SMC; mounting plate: galvanized plate. the
4. Glass fiber waterproof switch box adopts SMC composite material as shell molding material
Our product conform following standards
IP Degree: IP44 EN60529,
Heat resistant: IEC60695-2-11,
Fire resistant:EN62208
Mechanical impact resistant:IK10 EN50102,
Dieelectric resistant:EN 62208
| specification | ||
| Material | Fiber glass/SMC Polymer | |
| Type | Floor-standing Model | Hinged/Mounted Model |
| Size | 400*1200*350mm | 400*800*350mm |
| 600*1200*350mm | 600*800*350mm | |
| 800*1200*350mm | 800*800*350mm | |
| 1000*1200*350mm | 1000*800*350mm | |
| 600*1200*350mm | 1200*800*350mm | |
| 1200*1200*350mm | 400*1000*350mm | |
| 800*1200*700mm | 600*1000*350mm | |
| 1000*1200*700mm | 800*1000*350mm | |
| 1200*1200*700mm | 1000*1000*350mm | |
| 1200*1000*350mm | ||
| 800*1000*700mm | ||
| 1000*1000*700mm | ||
| Protection Level | 2P/IP66 | |
| Installation | Floor-standing | Hinged/Mounted |
| Assemble boards Thickness | 3mm, 4mm, custom made | |
| Gland Plate | 1.5mm Zinc-plated | |
| Color | White | |
Our Services
1, Material,size and other requirements can be customized.
2, Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3, Response 24 hours.
4, Solve the problems with you during using our products.
5, More questions or details to make clear, please feel free to contact us.
We supply OEM/ODM services, we have own R&D team and can make new molds by our own company, any sizes and specifications can be made as per customers' requirements.
