IK08 Wall Mounted SMC Fiberglass Enclosure Box With Transparent Lid
Product Details
| Model: | FN-SMT-32514 | The Size Of Model: | 300*250*140mm |
|---|---|---|---|
| Machanical Impact: | LKO8 | Treatment Of Surface: | Powder Coating |
| Product Application: | Industrial Electrical Field | Product Thickness: | 1.2mm /1.5mm |
| Product Lifetime: | More Than 20 Years | Boxes Are Completed With: | Mounting Plate |
| Main Material: | Glass Fiber Reinforced Polyesters(SMC) | Product Application Industrial: | Electrical Field |
| Box Protection Level: | IP66,IK08 | Box Type: | With Transparent Lid |
| Highlight |
IK08 Fiberglass Enclosure Box,Transparent Lid Fiberglass Enclosure Box,SMC Fiberglass Enclosure Box |
||
Product Description
IK08 Wall-Mounted SMC Fiberglass Enclosure Box For Electrical Field 800*600*300mm
The SMC fiberglass housing box with transparent cover has the following advantages:
- High mechanical strength: SMC material has excellent mechanical strength, can withstand external impact and pressure, and ensure the stability of the housing.
- Flame retardancy and leakage resistance: SMC material has good flame retardancy and leakage resistance, effectively preventing the risk of fire and electric shock.
- High arc resistance, dielectric strength and voltage resistance: It has high voltage resistance performance and remains stable under high voltage environment to ensure the safe operation of electrical equipment.
- Low water absorption and dimensional stability: SMC material has low water absorption and good dimensional stability, which effectively prevents deformation and damage caused by humidity changes.
- Aesthetics and safety: The housing box is made of fiberglass material, which is beautiful and sturdy in appearance. The transparent cover design increases visibility and facilitates observation of the internal situation.
- Environmental performance: SMC material is light in weight, corrosion-resistant, insulated and meets environmental standards, and is suitable for various indoor and outdoor environments.
- Easy installation: The box made of glass fiber reinforced polyester material is easy to install and can be used indoors and outdoors. It has uniform color and is easy to construct and operate.
- Wide range of application scenarios: suitable for insulating partitions of high, medium and low voltage switchgear, as well as meter boxes in rural and urban grid transformation.
- These advantages make the SMC fiberglass enclosure box with transparent cover a comprehensive, safe and reliable storage and display solution, which is widely used in various industrial and civil fields.
| Product Description | |
| Model Number | FN-SMT-32514 |
| External Size | 300*250*140mm |
| Material | Fiber glass/(SMC) |
| Certificate | CE ROHS |
| Customization | Acceptable |
| Surface treatment | Powder coating |
| Thickness | 1.2mm /1.5mm |
| Application Industrial | Electrical field |
| Protection degree | IP66 |
| Working temperature | -40°℃ to +120℃ |
| Machanical impact | lKO8 |

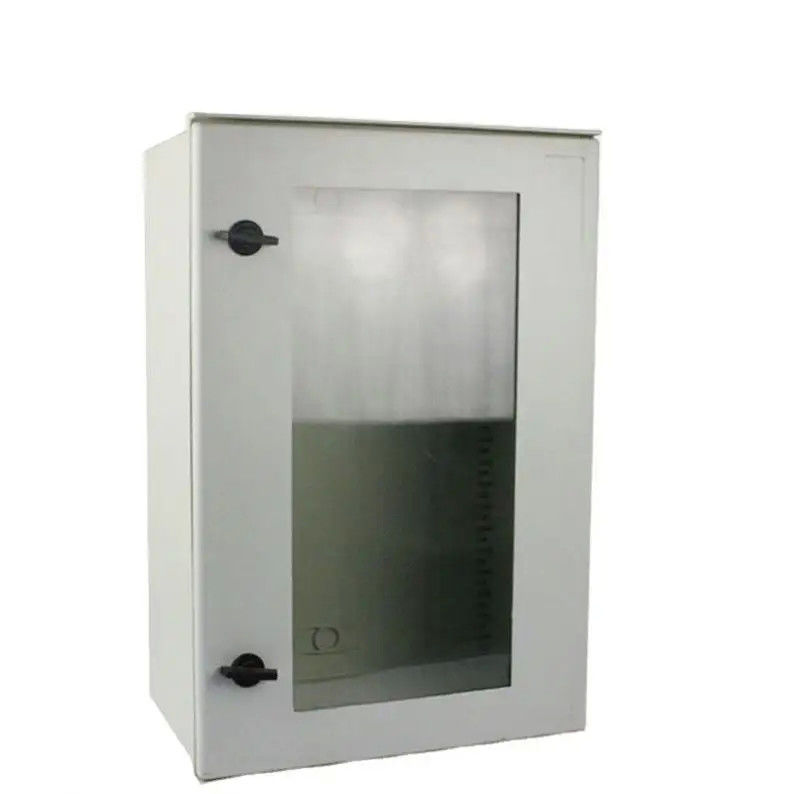

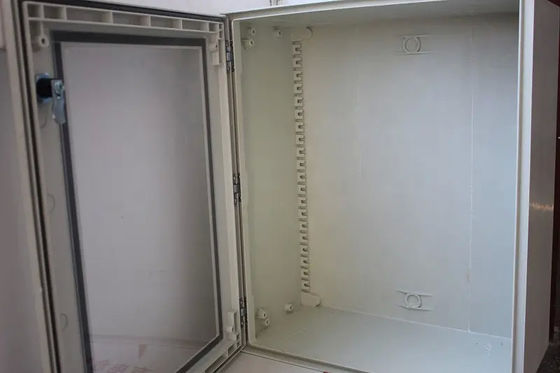

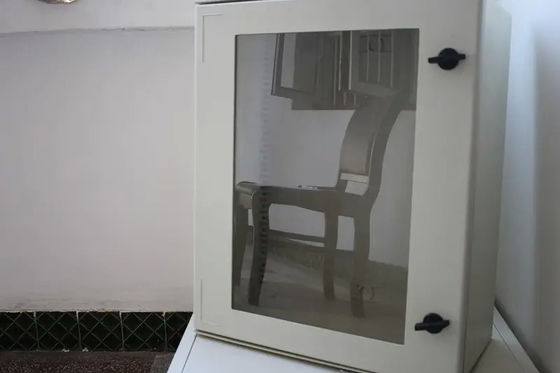

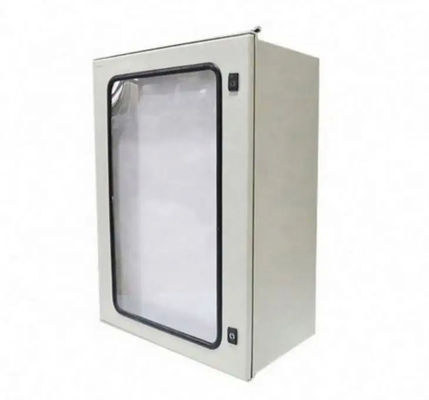

Overall product display:
PRODUCT FEATURES:
The SMC series is a new type of switch box, which is made of glass fiber reinforced polyester, with a waterproof rating of IP66 and an impact resistance of IK8. The characteristic of polyester is that it is itself mixed with 30% glass fiber to strengthen it, making it achieve a high electrical resistance and mechanical stiffness (IK8).
Compared with metal boxes, the SMC series weighs only 1/3 of metal boxes and is more adaptable to corrosion and humid environments.
SMC Box with solid lid
| Style Name | Dimension /mm |
| FN-SMC-32514 | 300*250*140 |
| FN-SMC-43020 | 400*300*200 |
| FN-SMC-44020 | 400*400*200 |
| FN-SMC-54020 | 500*400*200 |
| FN-SMC-64023 | 600*400*230 |
| FN-SMC-65023 | 600*500*230 |
| FN-SMC-86030 | 800*600*300 |
SMC Box with transparent lid
| Style Name | Dimension/mm |
| FN-SMT-32514 | 300*250*140 |
| FN-SMT-43020 | 400*300*200 |
| FN-SMT-44020 | 400*400*200 |
| FN-SMT-54020 | 500*400*200 |
| FN-SMT-64023 | 600*400*230 |
| FN-SMT-65023 | 600*500*230 |
| FN-SMT-86030 | 800*600*300 |
