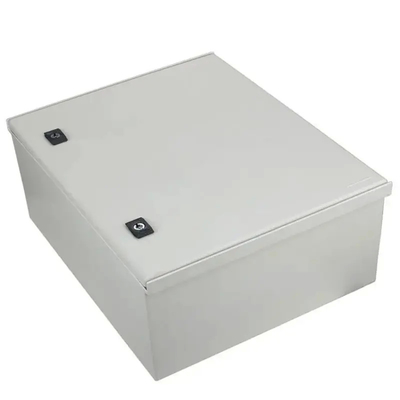

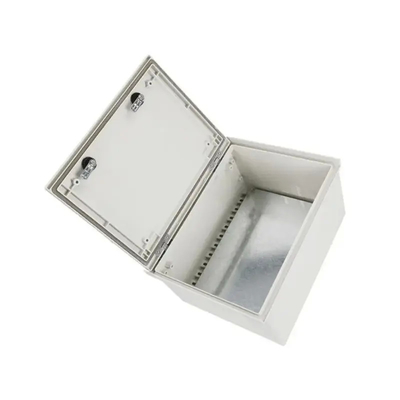

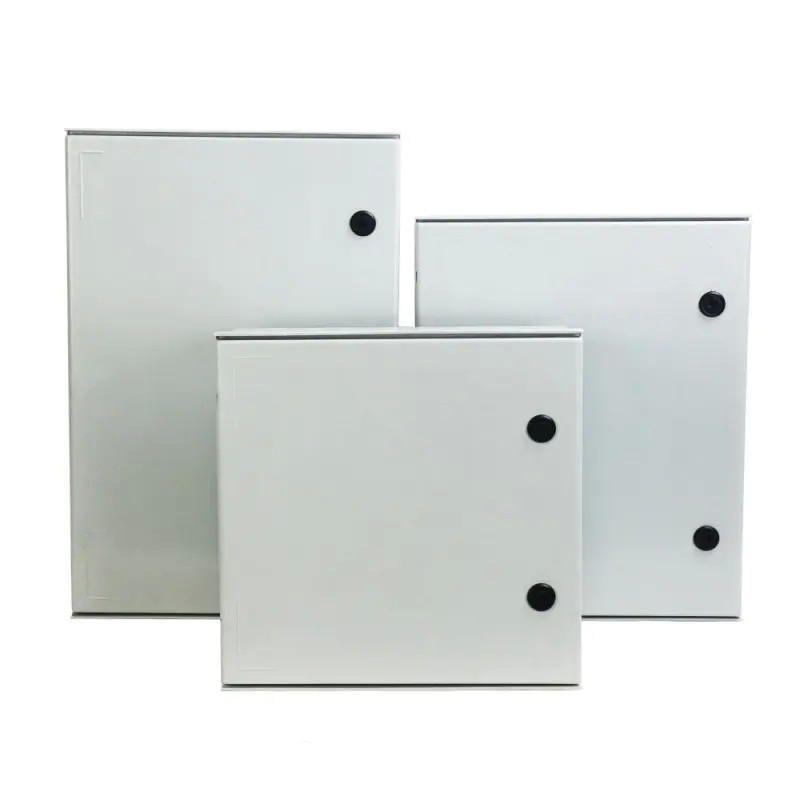

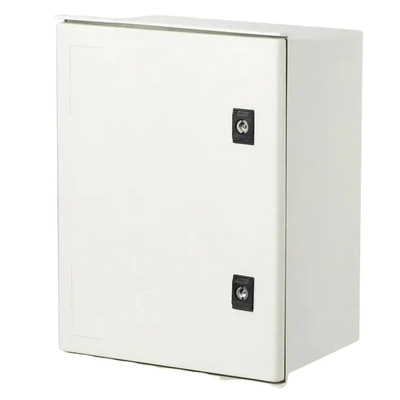

IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm

IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm

Product Details:
Place of Origin: China
Brand Name: Fenigal/None
Certification: CE,CCC
Model Number: FN-SMC-54020
Document: SMC Polyester Enclosure Fib...es.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD10~USD100
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Model Number: FN-SMC-64023 Product Size: 600*400*230mm
Customized: Acceptable Treatment Of Surface: Powder Coating
Product Application: Industrial Electrical Field Working Temperature Of The Box: -60℃-+150℃
Product Lifetime: More Than 20 Years Boxes Are Completed With: Mounting Plate
Core Material: Glass Fiber Reinforced Polyesters(SMC) Place Of Origin: China
Protection Level: IP66 Product Type: SMC Box With Solid Lid
Highlight:

600*400*230mm Fiberglass Enclosure Box

,

IP66 Waterproof Fiberglass Enclosure Box

,

Solid Lid Fiberglass Enclosure Box

IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm

‌The advantages of outdoor fiberglass boxes mainly include the following aspects‌:

  1. ‌Lightweight and high strength‌: The material density of the fiberglass box is much lower than that of traditional materials such as steel, but its strength is comparable to it, or even better in some aspects. This allows the fiberglass box to greatly reduce weight while ensuring strength, making it easier to transport and install‌.
  2. ‌Corrosion resistance‌: Fiberglass has good resistance to a variety of corrosive media such as acids, alkalis, and salts, and is particularly suitable for use in humid and highly corrosive environments, such as marine environments and chemical sites. This allows the fiberglass box to maintain good performance for a long time in outdoor environments‌.
  3. ‌Good weather resistance‌: Fiberglass materials are not easily affected by natural factors such as ultraviolet rays, wind and rain, and can maintain good performance even after long-term exposure to the outdoors‌.
  4. ‌Design flexibility‌: The shape, size, and color of the fiberglass box can be customized according to customer needs to meet diverse application needs. This allows the fiberglass box to better adapt to various complex environments in outdoor environments‌.
  5. ‌Long service life‌: Due to the above advantages, the service life of the fiberglass box is usually longer, reducing the frequency of replacement and maintenance costs‌.
  6. ‌High security‌: The fiberglass box adopts a door lock design, which is safe and reliable and can meet the safety needs in outdoor environments‌.



IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 0



Product Description
Model Number FN-SMC-604023
External Size 600*400*230mm
Material Fiber glass/(SMC)
Certificate CE ROHS
Customization Acceptable
Surface treatment Powder coating
Thickness 1.2mm /1.5mm
Application Industrial Electrical field
Protection degree IP66
Working temperature -40°℃ to +120℃
Machanical impact lKO8



Overall product display:



IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 1

IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 2IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 3IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 4IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 5



PRODUCT FEATURES:



The SMC series is a new type of switch box, which is made of glass fiber reinforced polyester, with a waterproof rating of IP66 and an impact resistance of IK8. The characteristic of polyester is that it is itself mixed with 30% glass fiber to strengthen it, making it achieve a high electrical resistance and mechanical stiffness (IK8).



Compared with metal boxes, the SMC series weighs only 1/3 of metal boxes and is more adaptable to corrosion and humid environments.

IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 6

IP66 Waterproof Reinforced Fiberglass Enclosure Box With Solid Lid 600*400*230mm 7











SMC Box with solid lid

Style Name Dimension /mm
FN-SMC-32514 300*250*140
FN-SMC-43020 400*300*200
FN-SMC-44020 400*400*200
FN-SMC-54020 500*400*200
FN-SMC-64023 600*400*230
FN-SMC-65023 600*500*230
FN-SMC-86030 800*600*300



SMC Box with transparent lid

Style Name Dimension/mm
FN-SMT-32514 300*250*140
FN-SMT-43020 400*300*200
FN-SMT-44020 400*400*200
FN-SMT-54020 500*400*200
FN-SMT-64023 600*400*230
FN-SMT-65023 600*500*230
FN-SMT-86030 800*600*300
