SMC Fiberglass Electric Meter Box SMC Enclosure Cabinet Mould Junction Box
Product Details
| Specification: | Different Size | Processing Service: | Moulding |
|---|---|---|---|
| Color: | White | Material: | SMC |
| Feature: | High Strength | Shell Protection Grade: | IP44 |
| Highlight |
SMC Fiberglass Electric Meter Box,SMC Enclosure Electrical Cabinet Box,Fiberglass Enclosure Electric Meter Box |
||
Product Description

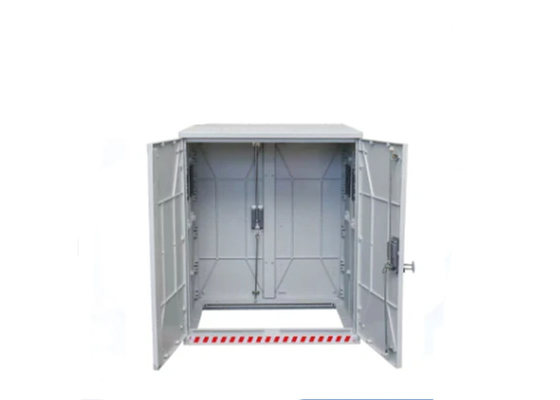

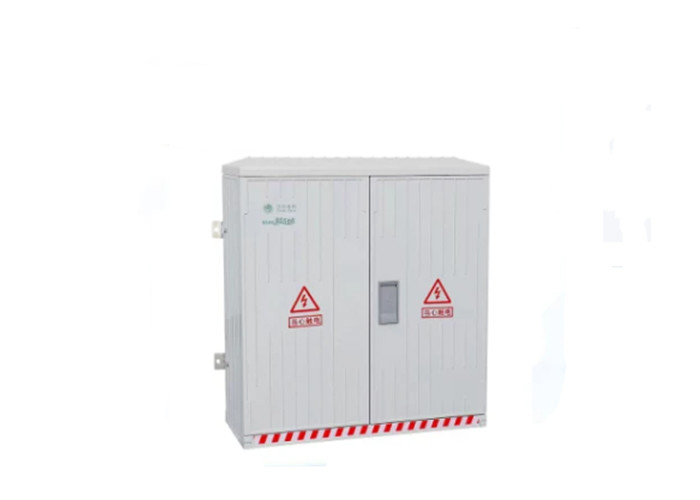

SMC Fiberglass Electric Meter Box SMC Enclosure Electrical Cabinet Box Mould Junction Box
Product Description:
Box part are high temperature formed with complete insulting polyester composite material(SMC). The whole body is formed by functional parts linked together, having high manufacturing precision. It has feature of new and compact structure, convenient assembly, and special rain proof design and ventilation design.
The Box has excellent electric specifications, such as insulation index, dielectric strength, leakage resistance tracking index and aging resistance. Even in the wet condition,it won't have condensation. High mechanical strength makes it safer than metal boxes, even wire fault inside the box or broken by external force will not cause the box electrified. It is suitable for the area with big population without guard net.
Cabinet advantages:
1. Chemical resistance
2. Strong aging resistance
3. Strong insulation performance
4. Good temperature resistance
5. Good flame retardancy
6. Light weight, high strength and toughness
7. No gap sensitivity
Cabinet features:
1.Effectively prevent condensation and frost;
2.Excellent outdoor protection class, up to IP44;
3.Building block structure, light weight, convenient installation;
4.Streamline shape, hard to paste advertisement on the surface, in line with environmental protection requirements
5.Open Angle 180 °, replacement door and activities without tools;
6.Stable overall structure, three-point locking, external padlock;
7.Matte surface, harmonious and beautiful, light and dirty beam.
| Index Name | Unit | Index Value | Test Standard |
| Index Name | mg | <20 | JB3961-1 |
| Water Absorption | ºC | 200~204 | JB3961-A |
| Heat Distortion Temperature | g/cm3 | 1.75~1.95 | GB1033-A |
| Density | kJ/m2 | 70~90 | GB1043 |
| Impact Strength | MPa | 150~80 | JB3961-1 |
| Bending Strength | Ω | >1.0 x 1013 | GB10064 |
| Insulation Resistance(normal) | Ω | >1.0 x 1012 | GB10064 |
| Insulation Resistance(water immersed 24h) | MV/m | >12.0 | GB1408 |
| Power Frequency Dielectric Strength | --- | <4.5 | GB1409 |
| Relative Dielectric Constant(1MHZ) | --- | <0.0015 | GB1409 |
| Dielectric Dissipation Factor(1MHZ) | S | >180 | GB1411 |
| Arc Resistance | V | >600 | GB4207 |
| Electric Leakage Resistance Tracking Index(PTI) | Class | >FV0 | GB11020 |
| Fire Resistance Property | Class | ZA1 | GB132-1996 |
| Smoke Density | Class | 15 | GB/T.8627-1999 |
| Type | Width*Height*Depth(mm) | IP Rate |
| Hanging Wall-mount | 400*880*320 | 44 |
| 400*960*320 | 44 | |
| 400*990*320 | 44 | |
| 600*880*320 | 44 | |
| 600*910*320 | 44 | |
| 600*990*320 | 44 | |
| 600*1020*320 | 44 | |
| 800*880*320 | 44 | |
| 800*990*320 | 44 | |
| 1000*880*320 | 44 | |
| 1000*990*320 | 44 | |
| 1200*880*320 | 44 | |
| 1200*990*320 | 44 | |
| 600*990*500 | 44 | |
| 800*990*500 | 44 | |
| 1000*990*500 | 44 | |
| 1200*990*500 | 44 | |
| Floor-Standing | 400*1140*320 | 44 |
| 400*1250*320 | 44 | |
| 600*1140*320 | 44 | |
| 600*1250*320 | 44 | |
| 800*1140*320 | 44 | |
| 800*1250*320 | 44 | |
| 1000*1140*320 | 44 | |
| 1000*1250*320 | 44 | |
| 1200*1140*320 | 44 | |
| 1200*1250*320 | 44 | |
| 600*1250*500 | 44 | |
| 800*1250*500 | 44 | |
| 1000*1250*500 | 44 | |
| 1200*1250*500 | 44 |
Application:

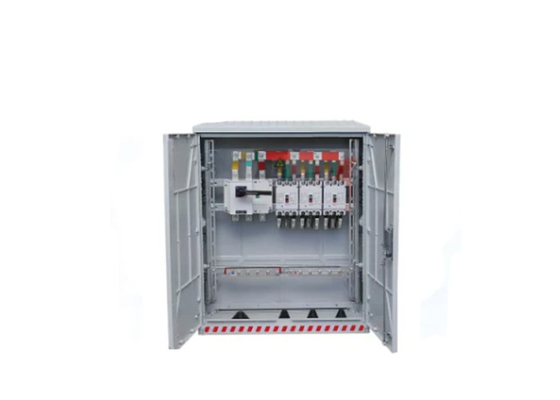

Low-voltage cable branch box, street lighting control box, both for distribution and control of power distribution equipment, suitable for all kinds of transmission and distribution substations, industrial, mining and chemical enterprises, urban and rural residential quarters, multi-high-rise buildings, airports, docks, etc. Outdoor public places.
