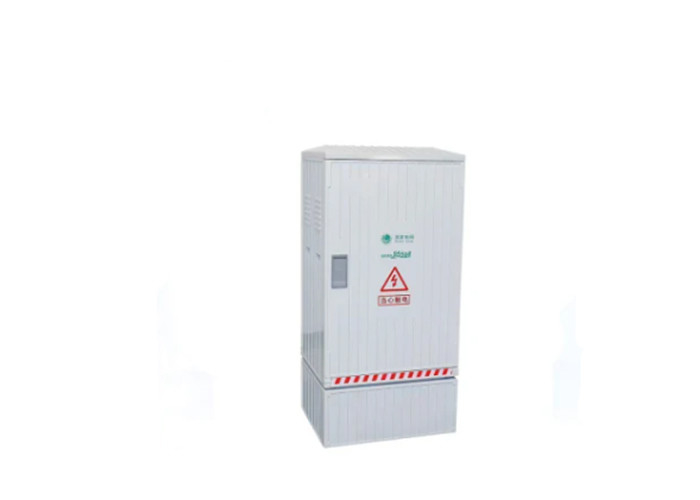

IP44 SMC Fiberglass Electric Power Meter Box Reinforced Polyester Distribution Enclosure
Product Details
| Specification: | Different Size | Processing Service: | Moulding |
|---|---|---|---|
| Color: | White | Material: | SMC |
| Feature: | High Strength | Shell Protection Grade: | IP44 |
| Highlight |
SMC Fiberglass Electric Power Meter Box,Fiberglass Power Distribution Enclosure,IP44 Reinforced Polyester Electric Meter Box |
||
Product Description
IP44 SMC Fiberglass Reinforced Polyester Electric Power Meter Box Waterproof Fiber Glass Power Distribution Enclosure
Product Description:
GRP Outdoor Waterproof Distribution Cabinet from is a new generation of low-voltage power distribution equipment independently developed . The circuit breaker or strip fuse switch is used to protect and control the line, and the fire power cut-off function in the area can be realized, and the safety performance is high.
Different schemes such as one-in and two-out, one-in and three-out, one-in and four-out, one-in and six-out, etc. can be realized, the branching scheme is flexible and the operation is convenient. The outer casing can be made of SMC non-metal or stainless steel, which has good structural integrity and beautiful appearance.
This product is suitable for indoor and outdoor public places such as transformer substations, industrial and mining enterprises, both sides of streets (highways), residential communities, and commercial buildings.
Cabinet advantages:
1. Chemical resistance
2. Strong aging resistance
3. Strong insulation performance
4. Good temperature resistance
5. Good flame retardancy
6. Light weight, high strength and toughness
7. No gap sensitivity
Cabinet features:
1.Effectively prevent condensation and frost;
2.Excellent outdoor protection class, up to IP44;
3.Building block structure, light weight, convenient installation;
4.Streamline shape, hard to paste advertisement on the surface, in line with environmental protection requirements

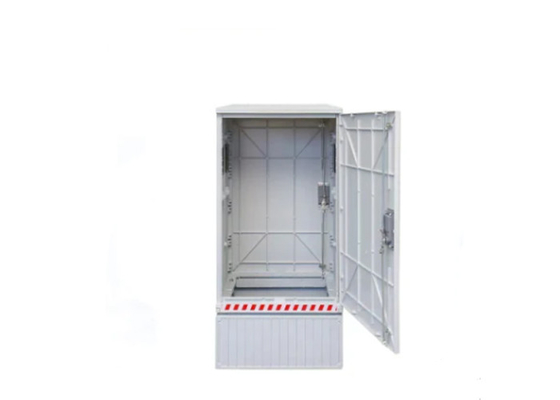

5.Open Angle 180 °, replacement door and activities without tools;
6.Stable overall structure, three-point locking, external padlock;
7.Matte surface, harmonious and beautiful, light and dirty beam.
| Index Name | Unit | Index Value | Test Standard |
| Index Name | mg | <20 | JB3961-1 |
| Water Absorption | ºC | 200~204 | JB3961-A |
| Heat Distortion Temperature | g/cm3 | 1.75~1.95 | GB1033-A |
| Density | kJ/m2 | 70~90 | GB1043 |
| Impact Strength | MPa | 150~80 | JB3961-1 |
| Bending Strength | Ω | >1.0 x 1013 | GB10064 |
| Insulation Resistance(normal) | Ω | >1.0 x 1012 | GB10064 |
| Insulation Resistance(water immersed 24h) | MV/m | >12.0 | GB1408 |
| Power Frequency Dielectric Strength | --- | <4.5 | GB1409 |
| Relative Dielectric Constant(1MHZ) | --- | <0.0015 | GB1409 |
| Dielectric Dissipation Factor(1MHZ) | S | >180 | GB1411 |
| Arc Resistance | V | >600 | GB4207 |
| Electric Leakage Resistance Tracking Index(PTI) | Class | >FV0 | GB11020 |
| Fire Resistance Property | Class | ZA1 | GB132-1996 |
| Smoke Density | Class | 15 | GB/T.8627-1999 |
| Type | Width*Height*Depth(mm) | IP Rate |
| Hanging Wall-mount | 400*880*320 | 44 |
| 400*960*320 | 44 | |
| 400*990*320 | 44 | |
| 600*880*320 | 44 | |
| 600*910*320 | 44 | |
| 600*990*320 | 44 | |
| 600*1020*320 | 44 | |
| 800*880*320 | 44 | |
| 800*990*320 | 44 | |
| 1000*880*320 | 44 | |
| 1000*990*320 | 44 | |
| 1200*880*320 | 44 | |
| 1200*990*320 | 44 | |
| 600*990*500 | 44 | |
| 800*990*500 | 44 | |
| 1000*990*500 | 44 | |
| 1200*990*500 | 44 | |

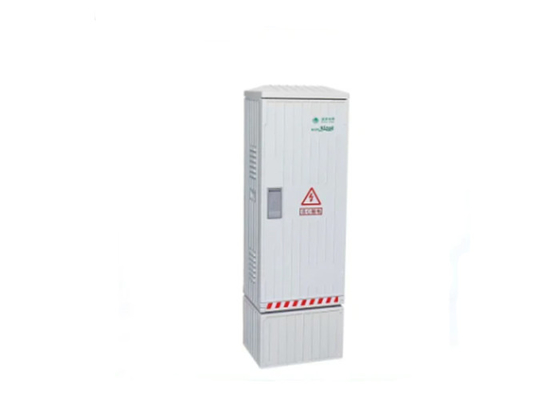

| Floor-Standing | 400*1140*320 | 44 |
| 400*1250*320 | 44 | |
| 600*1140*320 | 44 | |
| 600*1250*320 | 44 | |
| 800*1140*320 | 44 | |
| 800*1250*320 | 44 | |
| 1000*1140*320 | 44 | |
| 1000*1250*320 | 44 | |
| 1200*1140*320 | 44 | |
| 1200*1250*320 | 44 | |
| 600*1250*500 | 44 | |
| 800*1250*500 | 44 | |
| 1000*1250*500 | 44 | |
| 1200*1250*500 | 44 |
Application:
Low-voltage cable branch box, street lighting control box, both for distribution and control of power distribution equipment, suitable for all kinds of transmission and distribution substations, industrial, mining and chemical enterprises, urban and rural residential quarters, multi-high-rise buildings, airports, docks, etc. Outdoor public places.
