1000VDC Solar Pv Combiner Box 125A Dc Combination Lock Box 2 4 6 8 12 Strings
Product Details
| Product Name: | Solar Combiner Box | Material: | Stainless Steel |
|---|---|---|---|
| Protection Level: | IP65 | Installation Method: | Wall Mounting Type |
| Maximum DC Voltage: | 1000VDC | Max, Pv Arry Parallel Input String: | 4 Or 6,8,10,12,14,16 |
| Max. Output Switch Current: | 125A | Max Fuse Capacity Per String(A): | 15A |
| Highlight |
12 Strings Solar Pv Combiner Box,Stainless Steel Solar Pv Combiner Box,1000VDC Dc Combination Lock Box |
||
Product Description

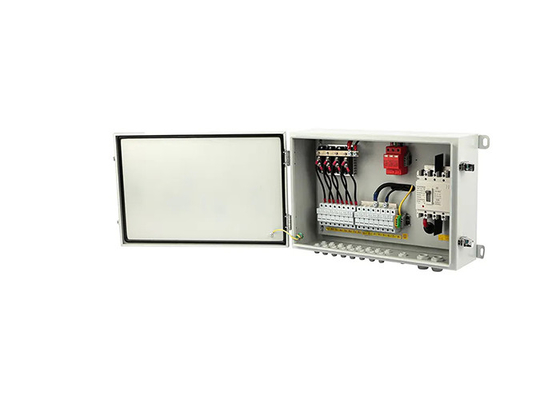

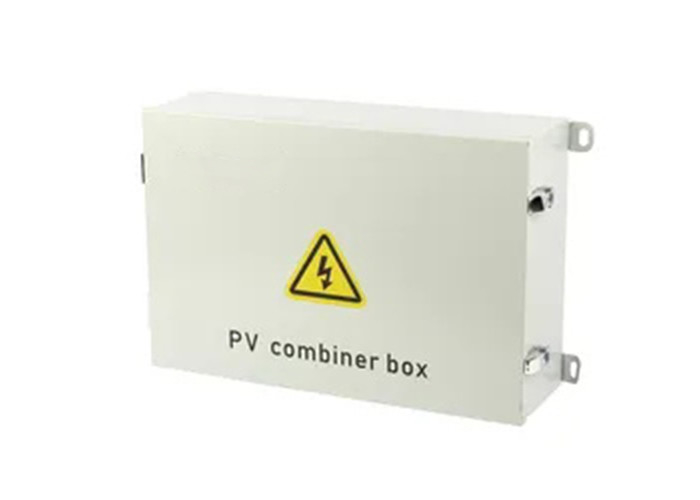

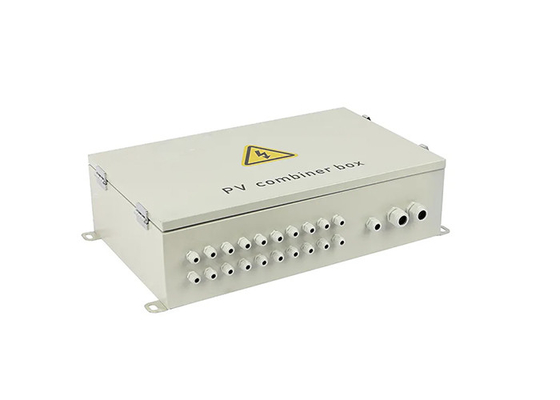

Solar Pv Combiner Box Dc Combination Lock Box 2 4 6 8 12 Strings
Product Description
| Product Name | PV Combiner Box |
| Drive Model | FEN-10M |
| Max. dc Voltage | 1000VDC |
| Max. PV Arry Parallel Input Strings | 10 |
| Max. output Switch Current | 125A |
| Max Fuse Capacity Per String(A) | 15A |
| Number Of Output Strings | 1 (Support customization for output number) |
| Surge Protection DC | Type II/In=20KA,Imax=40KA,Ucpv=1000VDC |
| Category Of Test | II grade protection |
| Protection Grade | IP65 |
| Output Switch | DC isolation switch(standard)VDC circuit breaker(optional) |
| Communication Mode/Protocol(Optional) | Rs485 bus/standard modbus-RTU protocol |
| SMC4 Waterproof Connectors | Standard |
| PV DC Fuse | 15A (Recommend 15A, support other ampere) |
| PV Surge Protector | Standard |
| Monitoring Module | Optional |
| Preventing Diode | Optional |
| Box Material | Coated Iron |
| Installation Method | Wall mounting type |
| Operating Temperature | －20℃~＋60℃ |
| Elevation Of Temperature | 2km |
| Permissible Relative Humidity | 0-95%,no condensation |
Product Highlights
Solar Pv Combiner Box Dc Combination Lock Box 2 4 6 8 12 Strings Product Description Product Name PV Combiner Box Drive Model FEN-10M Max. dc Voltage 1000VDC Max. PV Arry Parallel Input Strings 10 Max. output Switch Current 125A Max Fuse Capacity Per String(A) 15A Number Of Output Strings 1 (Support ...
