2 In 1 Out 2 Strand Pv Junction Box 12 Awg Cable Ip65 Waterproof Fireproof
Product Details
| Accessories: | Screws, Gaskets, Etc. | Application: | Indoor And Outdoor |
|---|---|---|---|
| Brand: | OEM/ODM | Color: | Gray |
| IP Rating: | IP66 | Material: | ABS |
| Size: | 200x200x150mm | Structure: | Integral |
| Surface Treatment: | Spray-paint | Warranty: | 1 Year |
| Weight: | 1.2kg | Working Temperature: | -20℃~+40℃ |
| Highlight |
12 awg cable pv junction box,fireproof pv junction box,12 awg cable weatherproof db box |
||
Product Description
2 in 1 out:
Hightlights:

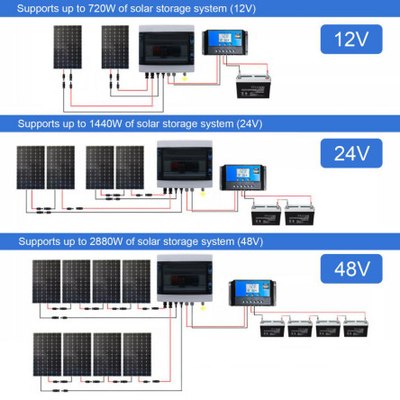

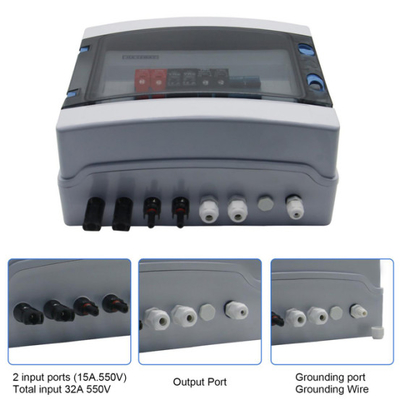

【Parameter】 2-strand PV junction box (current and voltage per pin of junction box up to 15A/550V DC. 12V system up to 720W; 24V system up to 1440W; 48V system up to 2880W)
【Safe and Reliable】12AWG cable, 2 x 15A fuse, 40KA-DC 600V surge dissipator, 32A DC 550V circuit breaker, IP65 box (It is recommended that the current of each string should not exceed 80% of the maximum current (12A).

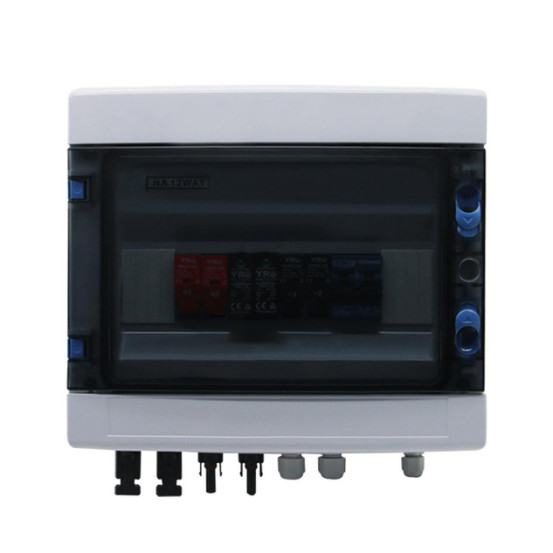

IP65 waterproof and fireproof: with the transparent cover, you can check the main switch and the deflector. If the diverter indicator light is red, this means that a flash impact has taken place and the lightning protection module must be replaced in time.

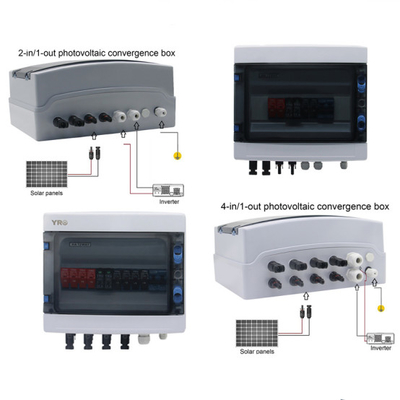

Application: the photovoltaic combination box is suitable for mains-connected and off-grid power generation systems with photovoltaics. Perfect solution for multiple solar panel outputs.

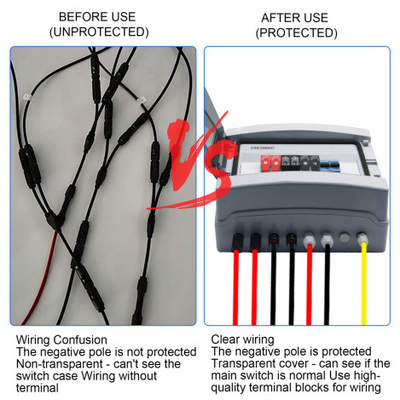

Easy to install: Plug and play and pre-connected cables provide an easy solution for connecting solar panels, and manual wiring saves at least 1-2 hours. The box PV combiner can be installed on any normal surface. Compatible with all brands of solar panels with solar connectors
Specification:
Operating voltage: DC12V-550V
String: 2
Box waterproof rating: IP65
Connector: 12AMG cable gland
Operating temperature: -20°C o +65°C
Lightning protection: 8/20 μs 40 kA secondary lightning protection
Maximum current: 32 A
Maximum voltage: 550 V
DC 600V surge protection
Maximum voltage: 600 V
Maximum discharge current 40 kA
Secondary lightning protection 20μs
4 in 1 out:
Hightlights:
【Parameters: PV connection box with 4 strings (current and voltage per pin of the junction box up to 15 A/550V DC. 12V system up to 720W; 24V system up to 1440W; 48V system up to 2880W)
Safe and reliable: 12 AWG cable; 4 x 15 amp fuse, 40 kA DC600 V surge dissipator, 63 A DC 550 V circuit breaker, IP65 box (it is recommended that the current of each srtings should not exceed 80 % of the maximum current (12 A).
IP65 waterproof and fireproof: with the transparent cover, you can check the main switch and the deflector. If the diverter indicator light is red, this means that a flash impact has taken place and the lightning protection module must be replaced in time.
Application: the photovoltaic combination box is suitable for mains-connected and off-grid power generation systems with photovoltaics. Perfect solution for multiple solar panel outputs.
Easy to install: Plug and play and pre-connected cables provide an easy solution for connecting solar panels, and manual wiring saves at least 1-2 hours. The box PV combiner can be installed on any normal surface. Compatible with all brands of solar panels with solar connectors
Parameters:
| Operating voltage: | DC12V-550V |
| String: | 2 |
| Box waterproof rating: | IP65 |
| Connector: | 12AMG cable gland |
| Operating temperature: | -20°C o +65°C |
| Lightning protection: | 8/20 μs 40 kA secondary lightning protection |
| Maximum current: | 32 A |
| Maximum voltage: | 550 V |
| DC 600V surge protection | |
| Maximum voltage: | 600 V |
| Maximum discharge current 40 kA | |
| Secondary lightning protection 20μs | |
Product detail presentation
Product Highlights
