M20 Plastic Waterproof Outdoor Junction Box Enclosure With Hinged Transparent Cover
Product Details
| Cable Entry: | Top & Bottom | Cable Gland Size: | M20 |
|---|---|---|---|
| Color: | White | Dimensions: | 200 X 200 X 100mm |
| IP Rating: | IP65 | Material: | Plastic |
| Max Current: | 32A | Max Voltage: | 400V |
| Mounting Type: | Wall Mounted | Number Of Terminals: | 4 |
| Size: | Large | Terminal Size: | M4 |
| Terminal Type: | Screw | Weight: | 1.2kg |
| Highlight |
plastic waterproof outdoor junction box,M20 waterproof outdoor junction box,hinged transparent cover weatherproof db box |
||
Product Description
The waterproof plastic enclosure features a hinged transparent cover for easy viewing and a sturdy 3.5mm thick construction with stainless steel latches.
With a wall-mounted design, silicone plugs for added water resistance, and versatile applications, it provides a secure and flexible solution for a range of electrical projects.
Waterproof Plastic Enclosure Outdoor Junction Box Details

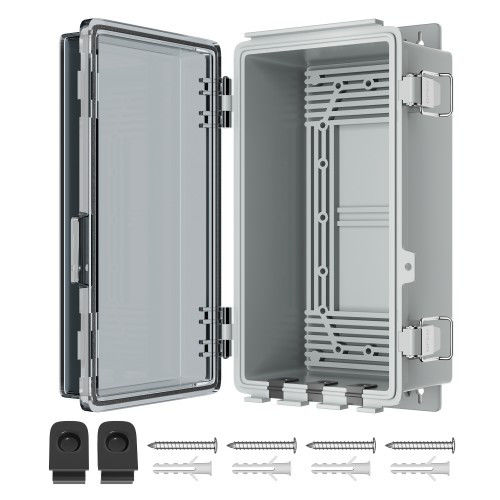

· Convenient Viewing Access

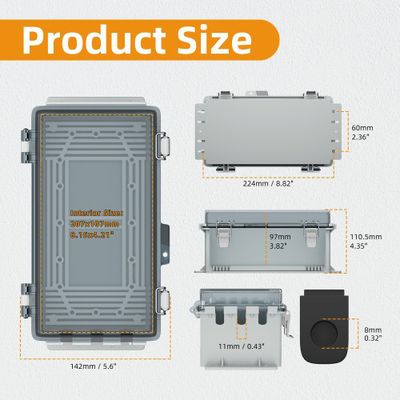

The transparent cover, hinged for easy access, offers a clear view of the internal electronics’ status. The dimensions of the enclosure are 8.1″x4.2″x3.8″, providing ample space for various devices.
· Robust Plastic Construction

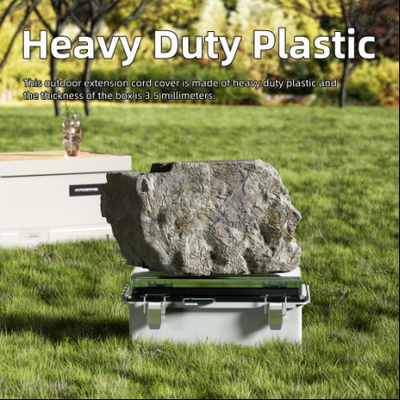

With a sturdy 3.5mm thickness, this waterproof outdoor box is more solid compared to thin-walled alternatives. The latch, constructed from stainless steel, adds an extra layer of durability to the outdoor electrical enclosure.
· Secured Equipment Placement
Equipped with a fixed bracket, this outdoor extension cord cover ensures secure placement of equipment within the waterproof box. Silicone plugs further enhance protection against water ingress, making it suitable for humid environments.
· Versatile Wall-Mounted Design

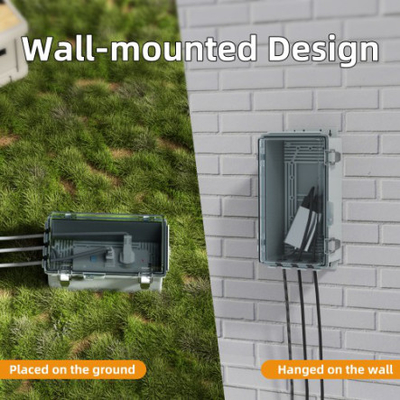

The wall-mounted design of this waterproof extension cord cover allows for flexible installation. It can be placed flat on the ground or hung on trees or walls, and the package includes 4 screws and 4 expansion tubes for easy installation.
· Wide Application
This waterproof plug protector accommodates a broad spectrum of indoor and outdoor applications, including power strips, Christmas lights, garden power tools, pump controllers, security cameras, fences, patio heaters, and more.
Waterproof Plastic Enclosure Outdoor Junction Box Datasheet
| Material | ABS plastic |
| Protection Grade | IP54 |
| Color | Clear |
| Dimensions LxWxH | 8.82″ x 5.6″ x 4.35″ |
| Inner Size | 8.15″ x 4.21″ x 3.82″ |
| Finish Type | Polished |
Product Highlights
The waterproof plastic enclosure features a hinged transparent cover for easy viewing and a sturdy 3.5mm thick construction with stainless steel latches. With a wall-mounted design, silicone plugs for added water resistance, and versatile applications, it provides a secure and flexible solution for ...
