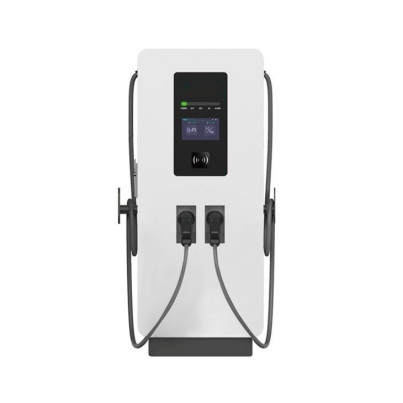

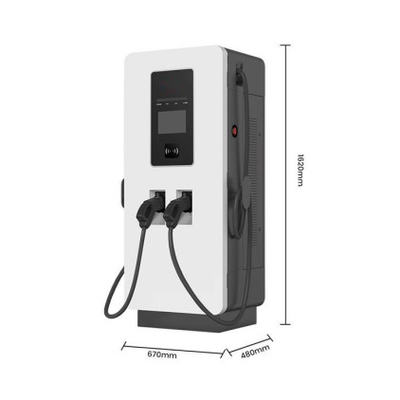

60KW OCPP DC Fast Charger Station LCD Display CCS+CHADEMO+AC CE Certified

60KW OCPP DC Fast Charger Station LCD Display CCS+CHADEMO+AC CE Certified

  • 60KW OCPP DC Fast Charger Station LCD Display CCS+CHADEMO+AC CE Certified
  • 60KW OCPP DC Fast Charger Station LCD Display CCS+CHADEMO+AC CE Certified
60KW OCPP DC Fast Charger Station LCD Display CCS+CHADEMO+AC CE Certified
Product Details:
Place of Origin: china
Brand Name: Fenigal
Certification: CE
Model Number: Fenigal
Payment & Shipping Terms:
Delivery Time: 5-8 working days or bulk order
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Application: AC Home Charging Certifications: CE, RoHS
Charge Method: Normal Charge Charging Standards: Type1, Type 2
Charging Time: 6-8 Hours Customization: Available
Interface Standard: TYPE2 Ip Grade: IP 54
Location: Private Use And Public Use Operating Temperature: -20-55℃
Output Current: 30A Output Voltage: 220-240V
Rated Output Power: 7kW Specification: Indoor & Outdoor Use
Warranty: 2 Years
High Light:

LCD Display dc fast charger station

,

CE Certified dc fast charger station

,

60KW dc fast charger station

60KW OCPP DC Fast Charger Station LCD Display CCS+CHADEMO+AC CE Certified 0






Product Overview



Fenigal 60KW OCPP DC Fast Charger Station is a basic DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports CCS+CHADEMO+AC Charging Station,Passed CE certification, supports European standard and Japanese standard charging protocol, has ocpp cloud platform, can be easily managed. The charger can optionally equip with a column support installed outdoors.





Product Specifications

Specification
Model

FN-EDC60AA

FN-EDC60AA/AC43

FN-EDC90AA

FN-EDC90AA/AC43

FN-EDC120AA

FN-EDC120AA/AC43

Electrical Properties
AC Input Input Rating AC400V(±15%)3ph
AC Input Connection 3P+N+PE
Rate Input Current 3Φ100A 3Φ150A 3Φ200A
Frequency 50/60Hz
Power Factor ≥0.99
Efficiency ≥95%
DC Output Output Voltage Range 200V-1000V
Max Output Current 200A(system) 300A(system) 400A(system)
Max Output Power DC60kW DC90kW DC120kW
Voltage Accuracy ≤±0.5%
Current Accuracy ≤±1%
User Interface & Control
Display 10.1"touch screen
Screen Material LCD
Push Buttons Operation buttors /Emergency buttons
User Authentication RFID,OCPP,QR code,Password Application
Support language English (Other languages available upon request)
Communication
External Ethernet,WIFI,3G/4G
Intemal CAN,RS485,RS232
Environmental
Operating Temperature -30℃-+50℃
Humidity <95% relative humidity,non-condensing
Altitude ≤2000m(6000 feet)
Mechanical
Ingress protection IP55
Enclosure Protection IK10
Cooling Air forced
Installation Method Wall-mount
Protection
Protection Over current, Under voltage,Over voltage,Residual current,
Surge protection,Short circuit,Over temperature,Ground fault
Regulation
Certificate CE/CB
Standard EN IEC 61851-1:2019;EN 61851-23:2014;EN 61851-24:2014;
EN IEC 61851-21-2:2021



Product Features

*CCS CHARGER&CHADEMO CHARGER

Our products are developed without any unstable factors with high stability, protection level IP55 and OCPP cloud management platform.

*CCS&CHADEMO&AC

Multi-Standards&Cost-Effective Electric Vehicle Charging Pile Solution

*VEHICLE-TO-GRID

We have already overcome the v2g technology and have implemented it

*PCR-OCPP

Based on the OCPP protocol, an operation and maintenance system was set up.

*IP55&TUV

Meeting the requirements of the International leading safety standards.






Technical Characteristics

The rate power of AC/DC combo EVSE controller (CCS and CHAdeMO standard) is 60KW, and it can be used for rapid charging of electric vehicles. The functions include power conversion, charging control, PLC communication, energy measurement, charging billing. The intelligent multi-charge can provide dynamic distribution and allow several standards of electric vehicles to charge. It has the function of constant current or voltage charging, which is suitable for high voltage lithium system. With dustproof and waterproof functions (protection grade: IP55), it is suitable for outdoor operation. It can be set in parking lots, tram stations, service areas of expressways and supermarkets.
