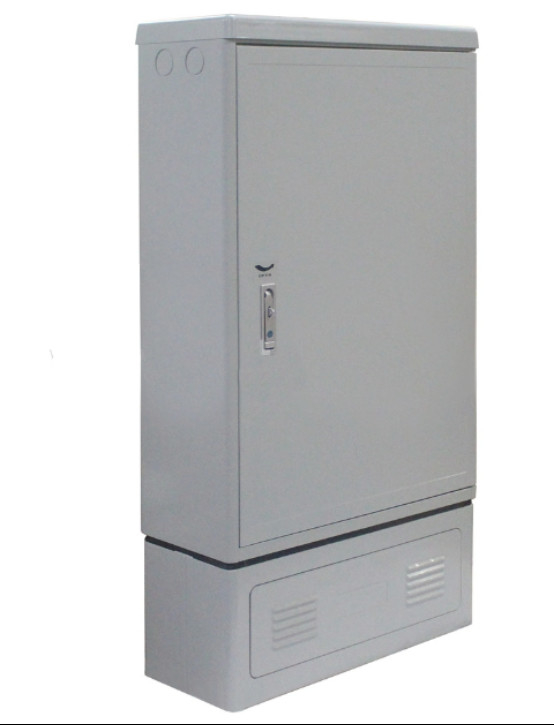

Weatherproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet

Weatherproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet

  • Weatherproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet
  • Weatherproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet
  • Weatherproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet
Weatherproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet
Product Details:
Place of Origin: china
Brand Name: Fenigal
Certification: CE,CCC
Model Number: Fenigal
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or negotiation for bulk orders
Payment Terms: T/T
Contact Now
Detailed Product Description
Features: Weatherproof, UV Resistant Application: Outdoor/Indoor Use
Color: Gray External Size: 600x500x230mm
Feature: High Strength Flame Retardant: Yes
Installation: Wall Mount Length: Customized Length
Material: ABS Plastic Protection Degree: IP54 IK8
Shell Protection Grade: IP44 Size: Customizable
Specification: Different Size Temperature Resistance: -40℃ To 120℃
Type: Electrical Box Uv Resistance: Yes

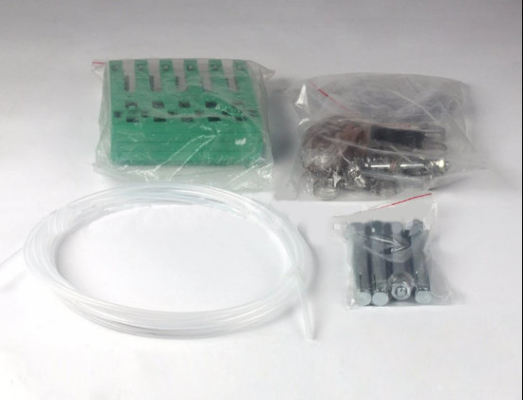

Accessories: Screws, Gaskets, Etc. Colour: Black, Grey, White
Decoration Type: Painted Function: Waterproof Dustproof
Impact Resistance: IK08 Lock Type: Padlockable
Max Current: 32A Number Of Circuits: 8
Structure: Integral Terminal Size: M4
Warranty: 1 Year
High Light:

IP65 Cross Connect Cabinet

,

288 Cores Cross Connect Cabinet

,

Weatherproof Cross Connect Cabinet

Weatherproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet 0

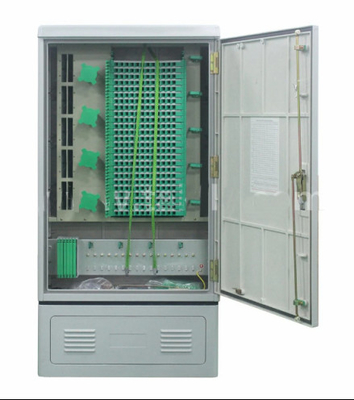

Waterproof IP65 288 Cores SMC Fiber Optic Cross Connect Cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access net work.



Technical Parameters:

1. Nominal work wave-length: 850nm, 1310nm, 1550nm

2. Protection level: IP65

3. Work Temperature: -45ºC-+85ºC

4. Relative humidity: 85%(+30ºC)

5. Atmospheric pressure: 70~106 KPa

6. Insertion loss: 0.2dB

7. Return loss:45dB (PC),55dB(UPC),60dB(APC)

8.Isolation resistance(between frame and protection grounding):>1000 MΩ/500V(DC)



Material:
SMC, Cold-rolled steel or stainless steel



Features:
High intensity and anti-erosion performance
Able to counter abrupt climate change and extreme environment
Capacity can be flexibly customized as required
Installation is quick and convenient
Built-in direct splice unit is capable for providing direct connection function.
Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
With secure and reliable fastening and grounding protection devices for the optic fiber
Applicable to strap-shaped and non-strap shaped fibers

Application:Telecommunications subscriber loop Fiber to the home (FTTH)LAN/WANCATV
More ODF From Takfly

For Further Information about our 288 cores Outdoor Cabinet Fiber Optic Cross Frame,please don't hesitate to leave me inquiry!




Dimensions:

FK-ODF-OC576 1450mm x 750mm x 540mm
FK-ODF-OC288 1450mm x 750mm x 320mm
FK-ODF-OC144 1035mm x 525mm x 320mm
FK-ODF-OC96 770mm x 450mm x 260mm
