Ultra Pure Water Reverse Osmosis EDI Modules 97% Recovery
Product Details
| Applicable Industries: | Power, Semiconductor, Chemical, Metallurgical | Resistivity: | > 16 MOhm-cm |
|---|---|---|---|
| Sodium: | < 3 Ppb | Silica (SiO2) Removal: | Up To 99% / < 5 Ppb |
| Boron Removal: | > 95% | Recovery: | Up To 97% |
| Highlight |
Ultra Pure Water EDI Modules,Reverse Osmosis EDI Modules,97% Recovery EDI Modules |
||
Product Description

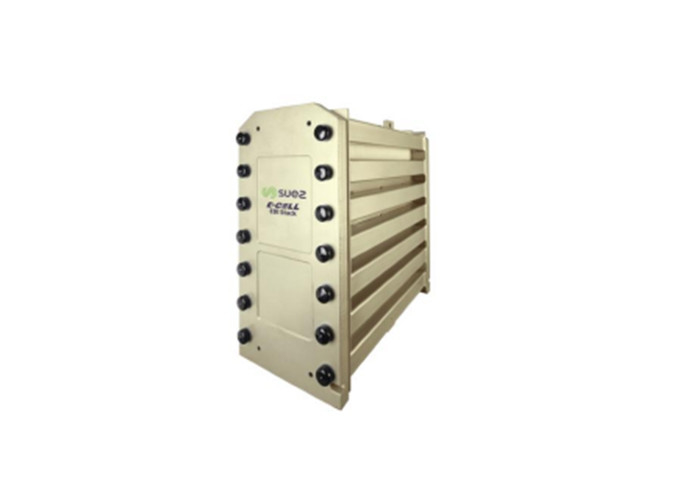

Ultra Pure Water Reverse Osmosis EDI Membrane Stack Electro-Deionization (EDI/CEDI) EDI stack MK-7
MK-7 is designed to
• Provide ultrapure water for industrial applications including power and general industry.
• Produce mixed bed quality water on a continuous basis.
• Require no caustic or acid for regeneration of ion exchange resin within the stack.
• Be leak free, guaranteed.
• Eliminate brine injection and concentrate recirculation, simplifying system design.
description and use
MK-7 are high flow electrodeionization (EDI) stacks which use electrical current to deionize and polish reverse osmosis (RO) permeate water. MK-7 product water is at an ultrapure level required in today’s most demanding applications.
typical applications
• Power Generation (NOx, Boiler Feed)
• General Industry
quality assurance
• CE, RoSH & CSA marked
• Manufactured in an ISO 9001 and ISO 14001 facility
| Stack Specifications | ||
| Flow | 4.2 - 7.8 m3 /hr | 8 - 34 gpm |
| Maxmium flow | 7.8 m3 /hr | 34 gpm |
| Nominal flow | 6.0 m3 /hr | 26 gpm |
| Shipping weight | 137 kg | 300 lb |
|
Dimensions (width x length x height) |
31cm x 61cm x66cm | 12’’ x 24” x 26” |
| Typical Performance | ||
| Product Quality | ||
| Resistivity | > 16 MOhm-cm | |
| Sodium | < 3 ppb | |
| Silica (SiO2) Removal | Up to 99% / < 5 ppb | |
| Boron Removal | > 95% | |
| Operation Parameters | ||
| Recovery | Up to 97% | |
| Concentrate Flow (vs. Product Flow) | Countercurrent, hardness ≥0.10 ppm as CaCO3 Cocurrent, hardness | |
| Voltage | 0 - 400 VDC | |
| Amperage | 0 - 5.2 ADC | |
| Inlet Pressure Cocurrent | 3.1 - 6.9 bar | 45 - 100 psi |
| Inlet Pressure Countercurr | 4.1 - 6.9 bar | 60 - 100 psi |
| Pressure Drop | .0 - 3.8 bar | 15 - 55 psi |
| Maximum Feed Water Specifications | ||
| Feed Water - Total Exchangeable Anions (TEA as CaCO3) | < 25 mg/l | < 25 ppm |
| Feed Water – Conductivity, NaHCO3 equivalent | < 43 μS/cm | < 43 μS/cm |
| Temperature | 5 - 40˚C | 41 - 104˚F |
| Total Hardness (as CaCO3) | < 1.0 mg/l | < 1.0 ppm |
| Silica (SiO2) | < 1.0 mg/l | < 1.0 ppm |
| Total Organic Carbon (TOC as C) | < 0.5 mg/l | < 0.5 ppm |
| Total Chlorine | < 0.05 mg/l | < 0.05 ppm |
