Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE |
Model Number: | Ellipse Hybrid |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiate |
Packaging Details: | Standard Export Carton / Waterproof Transport Case |
Delivery Time: | 15~45 Working Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50 Units/Month |
Light Source: | HMI, LED, Tungsten Halogen | Balloon Material: | Nylon Fabric Treated + Compound |
---|---|---|---|
Balloon Shape: | Ellipse, Sphere | Power: | 575W ~ 12kW |
Size: | Customized | Use: | Film And Television Shooting |
Highlight: | 3600W LED Inflatable Balloon Lighting,3600W LED Sphere Inflatable Balloon Lighting,2500W LED Sphere Inflatable Balloon Lighting |
Our daylight range lighting balloons are built in such a way that they could work with your Arri electronic ballasts to form a set light wanted. Our veam connector receptable box gives it a convenience for different comnbinations of power.

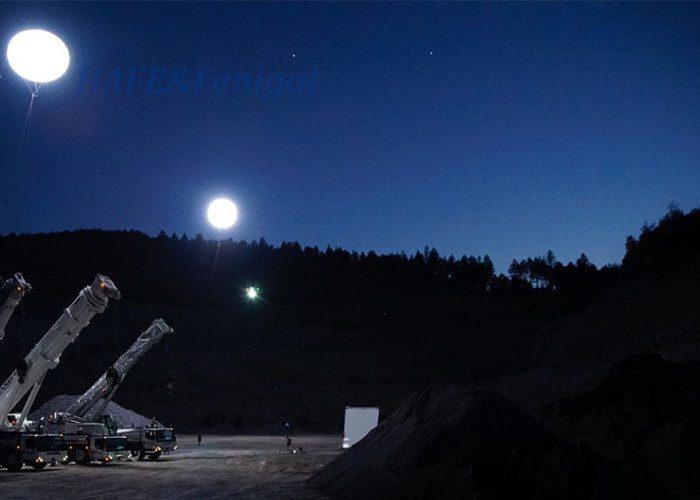

Balloon lights (also called lighting balloons) are a specialized type of luminaire used primarily for lighting in the motion picture industry, night highway construction, incident management, and public security applications such as police checkpoints.
The lighting balloons are widely used in set lighting (fill or main) as a high quality softened light source with its high pwer high output and unmatchable performance. The lighting balloons are able to create amazing lighting that a conventional lighting could unsatisfactorily to deliver.
At a location where rigging is not possible or practical, a large area of diffused man-made soft light needed, lighting balloons may be a better choice.
EB pictures at the courtesy of ARR:575/1200W 1200/1800W 2.5/4kW
POWER GEMS Also compatible to Power Gems electronic ballast from 575 till 4000w
matress
lighting data
Light source newest generation LED
Colour temperature from 2,700 K to 6,500 K
Average efficiency at 4,400 K 93 lm/W
Nominal power 850 W/1000WLED/2500W/3600WLED
Regulation type constant current
Diffusion angle 120° (chart 1.)
CRI - colour rendering index > 95 (chart 2.)
Flicker free 31 kHz
Potentiometer - colour temperature – intensity
Set up time 15 min
Inflation type external pump *
power supply Max. entry power 1000 W
Balloon to power supply cable length 10 m I 30 ft
Connector to power supply cable length 2 m I 6 ft
Noise level (remote power supply) 23 dB
Input voltage 90-260 V AC
Input frequency 50-60 Hz
dimensions and packaging

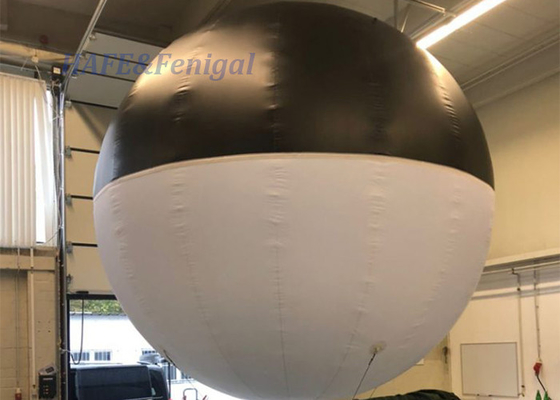

Balloon shape sphere
Balloon dimensions 160 cm I 5 ft in diameter
Weight of the balloon 12 kg I 27 lbs
Sphere - Ellipse: HMI | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
1,150 W HMI | Sphere | Ellipse | 2x 575 W / G22 | 6.5’ | 6.5’x8’ | 35’ | 1 | 1 | 30 min | 45’ | 10 mph |
2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 8’ | 8’x10’ | 35’ | 2 | 1 | 35 min | 55’ | 15 mph |
2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 35 min | 55’ | 15 mph |
4.8 KW HMI | Sphere | Ellipse | 4x 1.2 KW / G38 | 12’ | 12’x14’ | 65’ | 5 | 1 | 45 min | 100’ | 20 mph |
5 KW HMI | Ellipse | 2x 2.5 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
8 KW HMI | Ellipse | 2x 4 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
10 KW HMI | Sphere | 4x 2.5 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
16 KW HMI | Sphere | 4x 4 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
ACCESSORIES: | |||||||||
Skirts | |||||||||
Reflectors | |||||||||
Sphere - Ellipse: Tungsten | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 6.5’ | 6’x8’ | 40’ | 1 | 1 | 30 min | 45’ | 10 mph |
4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 8’ | 8’x10’ | 45’ | 2 | 1 | 30 min | 45’ | 15 mph |
5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 8’ | 8’x10’ | 40’ | 2 | 1 | 30 min | 45’ | 15 mph |
5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 30 min | 45’ | 15 mph |
8 KW Tungsten | Sphere | Ellipse | 8x 1 KW / G6.35 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
10 KW Tungsten | Sphere | Ellipse | 2x 5 KW / G38 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
15 KW Tungsten | Sphere | Ellipse | 2x 5 KW | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
+ 2x 2.5 KW / G38 | |||||||||
20 KW Tungsten | Sphere | Ellipse | 4x 5 KW / G38 | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
Sphere - Ellipse: Hybrid | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 8’ | 8’x10’ | 35’ | 2 | 1 | 40 min | 45’ | 15 mph |
Hybrid | + 1x 1.2 KW G38 | ||||||||
3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 10’ | 10’x12’ | 45’ | 3 | 1 | 40 min | 45’ | 15 mph |
Hybrid | + 1x 1.2 KW G38 | ||||||||
7.4 KW | Sphere | Ellipse | 2x 2.5 KW | 12’ | 12’x14’ | 60’ | 5 | 1 | 55 min | 100’ | 20 mph |
Hybrid | + 2x 1.2 KW G38 | ||||||||
8.4 KW | Ellipse | 6x 1 KW | 8.8’x12’ | 40’ | 4 | 1 | 40 min | 55’ | 15 mph |
Hybrid | + 2 x 1.2 KW G6.35 + G38 | ||||||||
9.6 KW | Ellipse | 6x 1 KW | 12’x14’ | 50’ | 5 | 1 | 55 min | 100’ | 20 mph |
Hybrid | + 3x 1.2 KW G6.35 + G38 | ||||||||
18 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 3x 4 KW G6.35 + G38 | ||||||||
18 KW | Sphere | 2x 5 KW | 16.5’ | 80’ | 10 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 2x 4 KW G38 | ||||||||
19 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 1x 5 KW | ||||||||
+ 2x 4 KW / | |||||||||
G6.35 + G38 | |||||||||
20 KW | Ellipse | 8x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 3x 4 KW | ||||||||
G6.35 + G38 | |||||||||
Sphere - Ellipse: Sodium / Mercury | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
4 KW | Sphere | 4x 1 KW / | 14’ | 60’ | 5 | 1 | 65 min | 100’ | 15 mph |
Sodium / Mercury | Mogul E39 |
