Electrodeionization EDI Modules EDI Stacks for Ultrapure and High Purity Water Systems
Product Details
| Weight (KG): | 95 Kg | Size: | 95*95*75cm |
|---|---|---|---|
| Power: | 2kw | Resistivity: | >16 Mohm-cm |
| PH For Treatedd Water: | 6.5~8.0 | Silica (SiO2) Removal: | UP To 99% Or<5ppb |
| Highlight |
edi module water treatment,electrodeionization module,water treatment edi modules |
||
Product Description
Electrodeionization EDI Modules EDI Stacks for Ultrapure and High Purity Water Systems

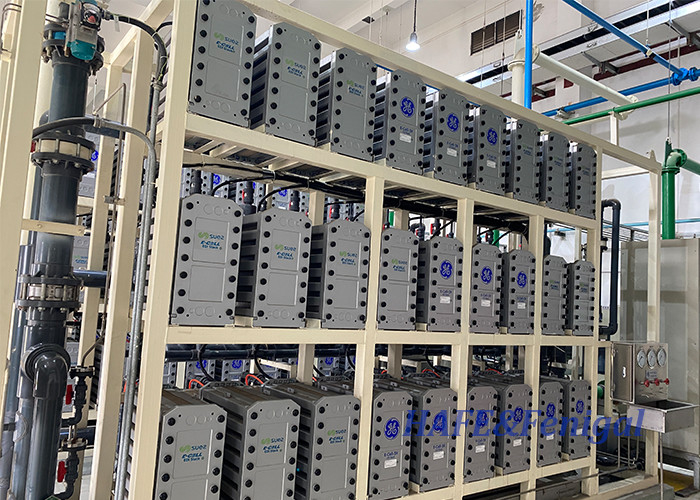

Application of EDI module E-CELL-3X and MK-3 in high purity water production equipment:
1. It provides ultra pure water for power, semiconductor, chemical, metallurgical and general industries
2. Continuous production of ultra pure water with water quality of mixed bed
3. There is no need to regenerate the mixed bed resin in the module
4. There is no water leakage
5. There is no need for brine injection and concentrated water circulation, which simplifies the design

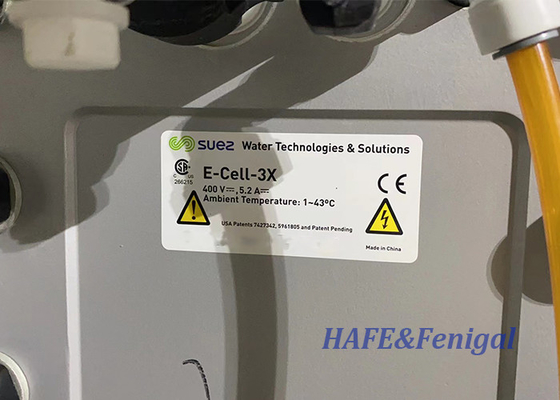

| Model | E-CELL-3X | MK-3 | |
| Size | Shipping weight | 135kg | 92kg |
| Weight | Dimensions | 31cm*61cm*66cm | 30cm*61cm*48cm |
Influent Water Quality |
Total exchangeable anions (PPM calculated by CaCO3 |
<25 | <25 |
| conductivity | <43us/cm | <43us/cm | |
| pH | 4~11 | 4~11 | |
| Temperature | 5~40 ° C | 5~40 ° C | |
| Hardness (ppm in CaCO3) | <1.0 | <1.0 | |
| Silica (ppm based on SiO2) | <1.0 | <1.0 | |
| TOC(ppm) | <0.5 | <0.5 | |
| Turbidity (NTU) | <1.0 | <1.0 | |
| Chromaticity (APhA) | 5 | 5 | |
| Residual chlorine (PPM) | <0.05 | <0.05 | |
| Fe,Mn,H2S(ppm) | <0.01 | <0.01 | |
| Oxidant | not detected | not detected | |
| Grease | not detected | not detected | |
| SDI (15min) | <1.0 | <1.0 | |
| Effluent Quality | Resistivity | >16MOhm.cm | >16MOhm.cm |
| pH | 6.5-8 | 6.5-8 | |
| Silica removal rate | Up to 99% or less than 5ppb | ||
| Boron removal rate | >98% | >98% | |
| Working Parameters | Maximum water yield(m3/H) | 6.4 | 4.5 |
| Water production range(m3/H) | 2.3~6.4 | 1.7~4.5 | |
| rate of recovery | 87-97% | 87-97% | |
| Voltage(VDC) | 0~400 | 0~300 | |
| Current(ADC) | 0~5.2 | 0~5.2 | |
| Inlet pressure (bar) | 4.1-6.9 | 4.1-6.9 | |
| Standard pressure drop (bar) | 1.4~2.8 | 1.4~2.8 | |
| Differential pressure (bar) | 0.34 | 0.34 | |
Application:
The MK-3 and E-CELL-3X series of e-celledi module is ge-edi module of electrodeionization, which uses current to deionize and polish the produced water of reverse osmosis. The water produced by mk-3 and E-CELL-3X of edi module is ultra pure water, which is suitable for the industries with more stringent water quality requirements.
