Ultra Pure Water Reverse Osmosis EDI Membrane Stack Electro-Deionization (EDI/CEDI) Water Filtration Systems
Product Details
| Weight (KG): | 95 Kg | Resistivity: | >16 Mohm-cm |
|---|---|---|---|
| PH For Treated Water: | 6.5-8.0 | Sodium: | <3 Ppb |
| Boron Removal: | >95% | Silica (SiO2) Removal: | Up To 99% Or <5ppb |
| Highlight |
edi module water treatment,electrodeionization module,water treatment edi modules |
||
Product Description
Ultra Pure Water Reverse Osmosis EDI Membrane Stack Electro-Deionization (EDI/CEDI) Water Filtration Systems

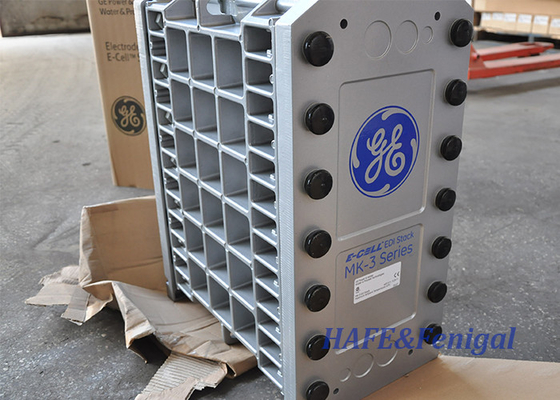

E-Cell MK-3 is designed to:
• Provide Ultrapure Water for industrial applications including Power, Semiconductor, and General Industry.
• Produce Mixed Bed quality water on a continuous basis.
• Require no caustic or acid for regeneration of ion exchange resin within the stack.
• Be leak free, guaranteed.
• Eliminate brine injection and concentrate re-circulation, simplifying system design.
Description and Use

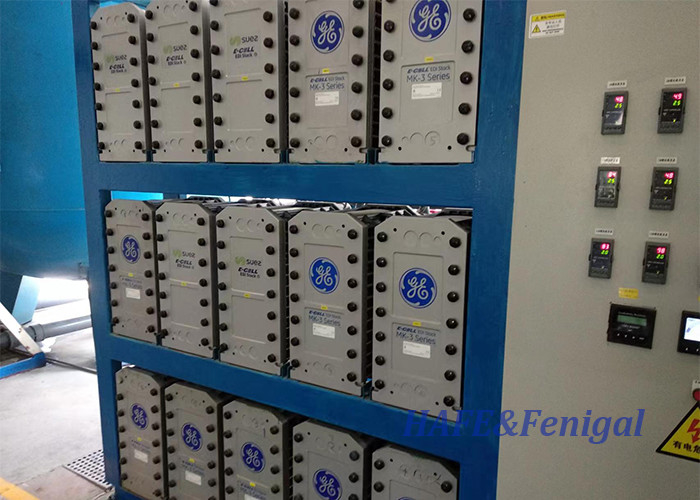

E-Cell MK-3 stacks are electro deionization (EDI) stacks which use electrical current to deionize and polish reverse osmosis (RO) permeate water. The product water for the MK-3 is at an Ultrapure level required in today’s most demanding applications.
Typical Applications
• Microelectronics
• Power Generation
• General Industry
| Model | E-CELL-3X | MK-3 | |
| Size | Shipping weight | 135kg | 92kg |
| Weight | Dimensions | 31cm*61cm*66cm | 30cm*61cm*48cm |
Influent Water Quality |
Total exchangeable anions (PPM calculated by CaCO3 |
<25 | <25 |
| conductivity | <43us/cm | <43us/cm | |
| pH | 4~11 | 4~11 | |
| Temperature | 5~40 ° C | 5~40 ° C | |
| Hardness (ppm in CaCO3) | <1.0 | <1.0 | |
| Silica (ppm based on SiO2) | <1.0 | <1.0 | |
| TOC(ppm) | <0.5 | <0.5 | |
| Turbidity (NTU) | <1.0 | <1.0 | |
| Chromaticity (APhA) | 5 | 5 | |
| Residual chlorine (PPM) | <0.05 | <0.05 | |
| Fe,Mn,H2S(ppm) | <0.01 | <0.01 | |
| Oxidant | not detected | not detected | |
| Grease | not detected | not detected | |
| SDI (15min) | <1.0 | <1.0 | |
| Effluent Quality | Resistivity | >16MOhm.cm | >16MOhm.cm |
| pH | 6.5-8 | 6.5-8 | |
| Silica removal rate | Up to 99% or less than 5ppb | ||
| Boron removal rate | >98% | >98% | |
| Working Parameters | Maximum water yield(m3/H) | 6.4 | 4.5 |
| Water production range(m3/H) | 2.3~6.4 | 1.7~4.5 | |
| rate of recovery | 87-97% | 87-97% | |
| Voltage(VDC) | 0~400 | 0~300 | |
| Current(ADC) | 0~5.2 | 0~5.2 | |
| Inlet pressure (bar) | 4.1-6.9 | 4.1-6.9 | |
| Standard pressure drop (bar) | 1.4~2.8 | 1.4~2.8 | |
| Differential pressure (bar) | 0.34 | 0.34 | |
Application:
The MK-3 and E-CELL-3X series of e-celledi module is ge-edi module of electrodeionization, which uses current to deionize and polish the produced water of reverse osmosis. The water produced by mk-3 and E-CELL-3X of edi module is ultra pure water, which is suitable for the industries with more stringent water quality requirements.
Product Highlights
Ultra Pure Water Reverse Osmosis EDI Membrane Stack Electro-Deionization (EDI/CEDI) Water Filtration Systems E-Cell MK-3 is designed to: • Provide Ultrapure Water for industrial applications including Power, Semiconductor, and General Industry. • Produce Mixed Bed quality water on a continuous basis...
