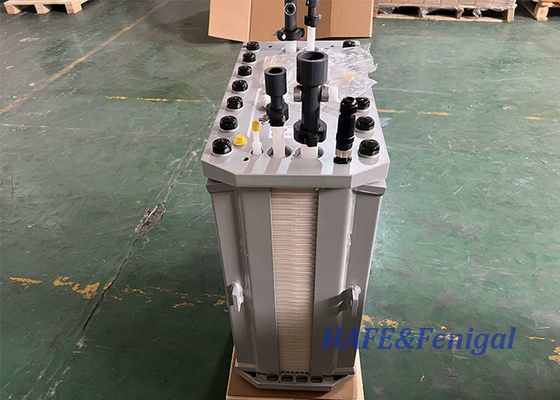

VEOLIA EDI MK-7 Module Continuous Electrodeionization EDI Stack
Product Details
| Weight (KG): | 95 Kg | Pressure Drop Note 3: | 2.4–3.4 Bar (35–50 Psi) |
|---|---|---|---|
| Inlet Pressure Note 2d Water: | ≤ 6.9 Bar (100 Psi) | Recovery: | Up To 97% |
| Nominal Flow: | 7.0 M³/h (31 Gpm) | Flow Rate Range: | 4.2 – 7.8 M3 /h (18 – 34 Gpm) |
| Highlight |
edi module water treatment,electrodeionization module,water treatment edi modules |
||
Product Description
VEOLIA EDI MK-7 Module Continuous Electrodeionization EDI Stack
General Description
As part of the E-Cell electrodeionization product line, the E-Cell MK-7 Stack is designed to:
• Use electrical current to provide ultrapure water for power generation, solar panel production, green hydrogen generation and many other heavy industries.
• Deliver premium performance including both the highest levels of product water quality and the lowest energy consumption.
• Minimize cleaning requirements at higher feed water hardness levels using counter-current operation.
• Be leak free, guaranteed with standard 3-year prorated warranty.
• Operate continuously and require no caustic or acid for regeneration of ion exchange resin within the stack.
• Require no brine injection or concentrate recirculation.
Features:
(1) Higher and stable quality water product;
(2)No need for acid-base regeneration;
(3)Continuous running,simple peration;
(4)Less requirements and cost in installation;
(5)Modular system,more flexible,easy to expand;
(6)No generation chemical waste;
(7)Reduced facility requirements;
(8)Low cost in running and maintenance;
(9)Easy to integrate into existing water systems;
(10)No recirculation-increased reliability.
Typical Applications

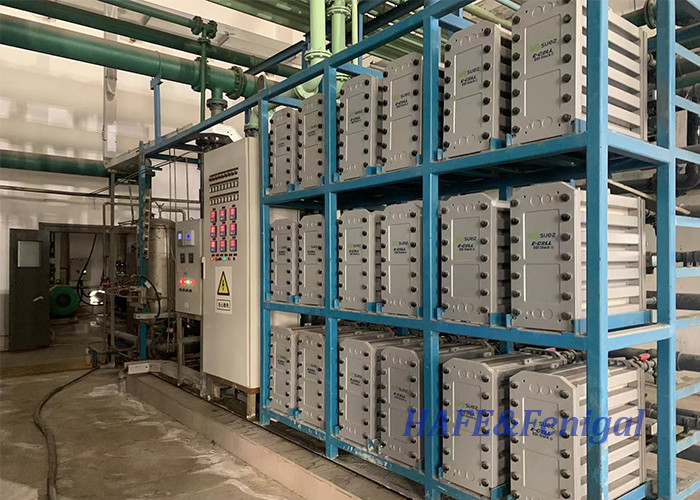

The product water from the E-Cell MK-7 can be relied upon to meet today’s most demanding ultrapure water applications including:
• Demineralized boiler feed water for high pressure boilers found in power plants and other heavy industrial sites
• Ultrapure water for rinsing of solar panels and other microelectronics
• Ultrapure water for electrolyzer green hydrogen generation
For ease of design and additional confidence in your EDI application, E-Cell performance projections and guarantees are available in the Winflows* software or by contacting Veolia.
Quality Assurance
• CE, RoHS, CSA and EAC marked
• Manufactured in an ISO 9001 and ISO 14001 facility
• Certified with UKCA
• E-Cell MK-7 Stacks are Halal certified by the Islamic Food and Nutrition Council of America (IFANCA®)
| E-Cell MK-7 Stack Specifications | |
| Nominal Flow | 7.0 m³/h (31 gpm) |
| Flow Rate Range | 4.2 – 7.8 ³/h (18 – 34 gpm) |
| Shipping Weight 165 kg | (364 lbs) |
| Dimensions (width x height x depth) |
30 cm x 61 cm x 74 cm 12’’ x 24” x 30” |
