Industrial Electrodeionization (EDI) Stacks Ultra Pure Water EDI Reverse Osmosis Water Treatment

Product Details:

Place of Origin:	China
Brand Name:	VEOLIA
Certification:	CE
Model Number:	E-Cell-3X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	standard export packing
Delivery Time:	5- 8 work days
Supply Ability:	60000 Unit/Units per Month

Contact Now

All Products

Lighting Distribution Box (33)

Electrical Distribution Box (33)

Weatherproof Distribution Box (48)

Fiberglass Enclosure Box (60)

ATS Automatic Transfer Switch (68)

EDI Modules (160)

Ultrafiltration Membrane Modules (72)

Industrial Circuit Breaker (85)

Solar PV System (72)

Electric EV Charging Station (21)

Modular Timing Relays (12)

Automation Control Relays (64)

Voltage Regulator Transformer (16)

Film Lighting Balloons (144)

Moon Balloon Light (145)

Tripod LED Balloons (122)

Inflatable Light Tower (76)

Terminal Block Accessories (6)

Detailed Product Description

Nominal Flow:	3.4 M3 /h (15 Gpm)	Sodium:	≤ 3 Ppb
Silica (SiO2):	As Low As 5 Ppb	Boron:	As Low As 0.08 Ppb
Voltage:	0–300 VDC	Amperage:	0–5.2 ADC
Highlight:	edi module water treatment , electrodeionization module , water treatment edi modules

Industrial Electrodeionization (EDI) Stacks Ultra Pure Water EDI Reverse Osmosis Water Treatment

General Description

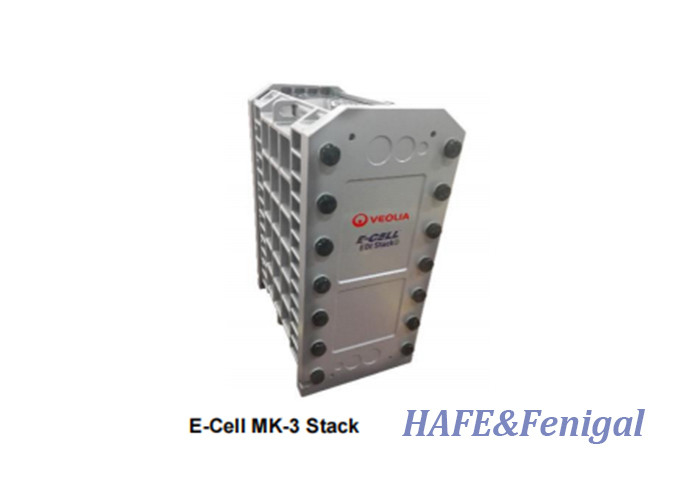

As part of the E-Cell* electrodeionization product line,the E-Cell MK-3 Stack is designed to:

•Use electrical current to provide ultrapure water for semiconductor fabrication, power generation, solar panel production, and many other heavy industries.

•Deliver premium performance including both the highest levels of product water quality and the lowest energy consumption.

•Minimize cleaning requirements at higher feed water hardness levels using counter-current operation.

•Be leak free, guaranteed, with standard 3-year prorated warranty.

•Operate continuously and require no caustic or acid for regeneration of ion exchange resin within the stack.

•Require no brine injection or concentrate recirculation.

Typical Applications

The product water from the E-Cell MK-3 can be relied upon to meet today’s most demanding ultrapure water applications including:

•Ultrapure water for rinsing of semiconductor chips, solar panels, and other microelectronics

•Demineralized boiler feed water for high pressure boilers found in power plants and other heavy industrial sites

For ease of design and additional confidence in your EDI application, E-Cell performance projections and guarantees are available in the Winflows* software or by contacting Veolia.

Quality Assurance

• CE, RoHS, CSA and EAC marked

• Manufactured in an ISO 9001 and ISO 14001 Facility

• Certified with UKCA

• E-Cell MK-3 Stacks are Halal certified by the Islamic Food and Nutrition Council of America (IFANCA®)

MK-3 Stack Specifications
Nominal Flow	3.4 m3 /h (15 gpm)
Flow Rate Range	1.6 – 4.5 m3 /h (7.0 – 20 gpm)
Shipping Weight	100 kg (220 lbs)
Dimensions (width x height x depth)	30 cm x 61 cm x 54 cm 12’’ x 24” x 22

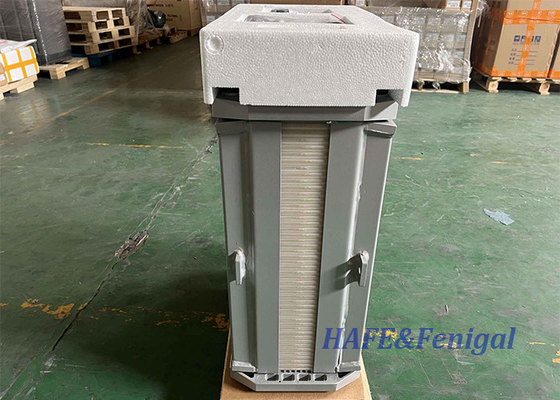

Industrial Electrodeionization (EDI) Stacks Ultra Pure Water EDI Reverse Osmosis Water Treatment 1

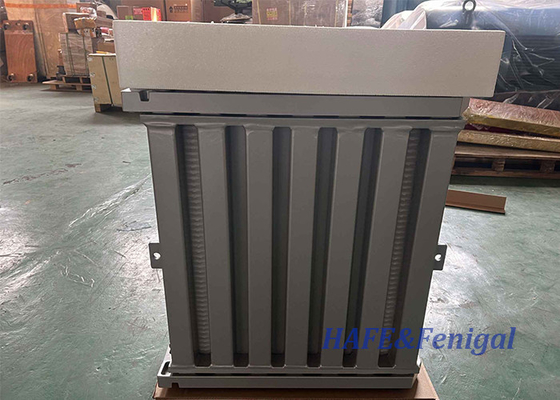

Industrial Electrodeionization (EDI) Stacks Ultra Pure Water EDI Reverse Osmosis Water Treatment 2

Industrial Electrodeionization (EDI) Stacks Ultra Pure Water EDI Reverse Osmosis Water Treatment 3

Tag:

Contact Person: Mr. Harry

Tel: +86-13646187144

Other Products

Veolia E-Cell MK-3 MiniHT EDI module for pharmaceutical ultrapure water production

MiniHT Flow Rate Range of this mdoel: 0.5–1.6 m3 /h (2.2–7.0 gpm)

MiniHT Shipping Weight of this model: 57 kg (126 lbs)

MiniHT Dimensions of this model (width x height x depth): 30 cm x 61 cm x 29 cm

MiniHT Resistivity: ≥ 10 (Pharmaceutical) or ≥ 16 MOhm-cm (Industrial

Veolia MK-3PharmHT Hot Water Sterilization EDI Module For Grade Ultrapure Water Preparation

EDI Stack Resistivity: ≥ 10 MOhm-cm

EDI Stack Sodium: ≥ 99.9% removal

EDI Stack Silica (SiO2): Up to 99% removal

EDI Stack Hot Water Sanitization Cycles: 160

Veolia E-Cell MK-3 EDI Stack for Continuous High-Purity Water Production

Standard Maximum water production (m3 /hr): 4.5

Standard Minimum water production (m3 /hr): 1.6

Standard Recovery: up to 96%

Standard Shipping Weight of this stack: 100 kg (220 lbs)

Veolia MK-5 EDI Module (Previously E-CELL-3X) For Semiconductor Industries

MK-5 Minimum pressure difference between dilute outlet and concentrate inlet (bar): 0.34

MK-5 inlet/outlet standard pressure drop (bar): 1.4-2.8

MK-5 Inlet pressure (bar): Counter-current: 4.1-6.9 Co-current: 3.1-6.9

MK-5 Amperage (ADC): 0-5.2

Veolia E-Cell MK-9 EDI Module For High-Flow And Robust Design

MK-9 Stack Dimensions (cm as width x height x depth): 30 x 61 x 74

MK-9 Stack Total exchangeable anions (ppm as CaCO3 ): <13

MK-9 Stack Conductivity (μS/cm): <22

MK-9 Stack pH: 4-11
