Upgrade EDI Modules For Advanced And Environmentally Friendly Solution
Product Details
| Material: | Nylon Or PVC | Product Dimension: | 420mm X 460mm X 680mm |
|---|---|---|---|
| Lamp Base: | G38 | Usage: | Decoration |
| Size: | Various Sizes Available | Input Power: | 300w Constant |
| Gas: | Filled By Helium | Type: | Advertising Lighting Balloon |
| Scene: | Indoor Or Outdoor | Remote Mode: | DMX512, 2.4GHz Remote Controller, APP |
| Power: | Various Wattages Available | Electronic Ballast: | 1200w, 50-60Hz |
| Outside Dimension: | 33x39x15cm | Shape: | Round Or Square |
| Scenes: | Film And Television Shooting Lighting | ||
| Highlight |
Upgrade EDI Modules,Advanced EDI Modules,Environmentally Friendly EDI Modules |
||
Product Description

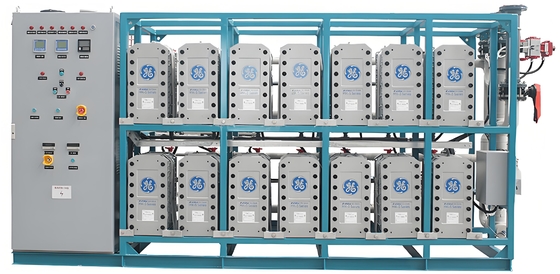

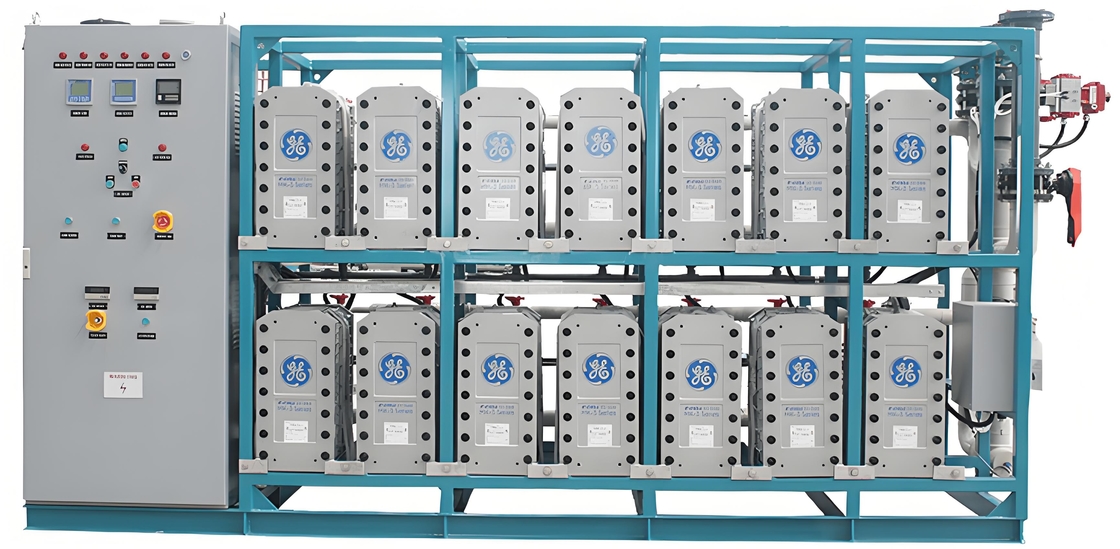

The advantages of Electrodeionization (EDI) compared to Mixed Bed systems are numerous. EDI offers a more advanced technology, eliminating the need for regeneration chemicals or neutralization systems. This results in significantly lower operating costs and a more environmentally friendly solution. Additionally, EDI systems offer continuous and simplified operation, leading to improved process efficiency. Furthermore, with a smaller footprint and reduced building height requirement, EDI systems are easier to integrate into existing industrial facilities. Overall, EDI technology offers a cost-effective, environmentally friendly, and efficient alternative to Mixed Bed systems.
parameter data
Stack Name |
MK-3PharmHT |
MK-3MiniHT |
|
|
Weight Dimensions |
Shipping weight (kg) |
92 |
52 |
|
Dimensions |
30 x 61 x 54 |
30 x 61 x 29 |
|
|
Feed Water Quality |
Total exchangeable anions (ppm as CaCO3) |
< 25 |
< 25 |
|
Conductivity (μS/cm) |
< 43 |
< 43 |
|
|
pH |
4-11 |
4-11 |
|
|
Temperature (°C) |
4.4-40 |
4.4-40 |
|
|
Hardness (ppm as CaCO3) |
< 1.0 |
< 1.0 |
|
|
Silica (ppm as SiO2) |
< 1.0 |
< 1.0 |
|
|
TOC (ppm) |
< 0.5 |
< 0.5 |
|
|
Turbidity (NTU) |
< 1.0 |
< 1.0 |
|
|
Color (APHA) |
< 5 |
< 5 |
|
|
Chlorine (ppm) |
< 0.05 |
< 0.05 |
|
|
Fe, Mn, H2S (ppm) |
< 0.01 |
< 0.01 |
|
|
Oxidant |
Not detected |
Not detected |
|
|
Oil and grease |
Not detected |
Not detected |
|
|
SDI15 |
< 1.0 |
< 1.0 |
|
|
Product Water Quality |
Resistivity (MOhm-cm) |
> 10 |
> 10 |
|
TOC (ppb) |
< 500 |
< 500 |
|
|
Operating Parameters |
Maximum water production (m3/hr) |
4.5 |
1.5 |
|
Minimum water production (m3/hr) |
1.6 |
0.5 |
|
|
Typical designed water production (m3/hr) |
2.0-4.5 |
0.5-1.5 |
|
|
Recovery |
Up to 96% |
Up to 93% |
|
|
Voltage (VDC) |
0-300 |
0-150 |
|
|
Amperage (ADC) |
0-5.2 |
0-5.2 |
|
|
Inlet pressure (bar) |
Counter-current: 4.1-6.9 |
Counter-current: 4.1-6.9 |
|
|
Dilute inlet/outlet standard pressure drop (bar) |
1.4-2.8 |
1.4-2.8 |
|
|
Minimum pressure difference between dilute outlet and concentrate inlet (bar) |
0.34 |
0.34 |
|
|
Number of 1 hour sanitization cycles |
160 |
160 |
|
|
Maximum sanitization temperature (°C) |
85 |
85 |
|
Product Highlights
The advantages of Electrodeionization (EDI) compared to Mixed Bed systems are numerous. EDI offers a more advanced technology, eliminating the need for regeneration chemicals or neutralization systems. This results in significantly lower operating costs and a more environmentally friendly solution. ...
