Industrial EDI Osmotic Module Reverse Osmosis Ultra-pure Water Treatment Equipment System Machine E-Cell-3X

Industrial EDI Osmotic Module Reverse Osmosis Ultra-pure Water Treatment Equipment System Machine  E-Cell-3X

EDI utilizes both traditional ion exchange resin and ion exchange membrane to remove contaminants, including those that are uncharged or lightly charged in the feed water such as silica and boron. The biggest advantage lies in the fact that EDI technology employs direct current to drive contaminants out of the feed water and through the ion exchange membranes into the concentrate channels. The direct current also splits water into hydrogen and hydroxyl ions which act as continuous regenerating agents so that contaminants do not accumulate on the ion exchange resin. Therefore, EDI can continuously and predictably produce high-purity and ultrapure water with equal or better quality than mixed bed ion exchange.

E-Cell*-3X is designed to:

l Provide Ultrapure Water for industrial applications including Power, Semiconductor, and General Industry.

l Produce Mixed Bed quality water on a continuous basis.

l Require no caustic or acid for regeneration of ion exchange resin within the stack.

l Be leak free, guaranteed.

l Eliminate brine injection and concentrate recirculation, simplifying system design.

Typical Applications

l Microelectronics

l Power Generation (NOx, Boiler Feed)

l General Industry

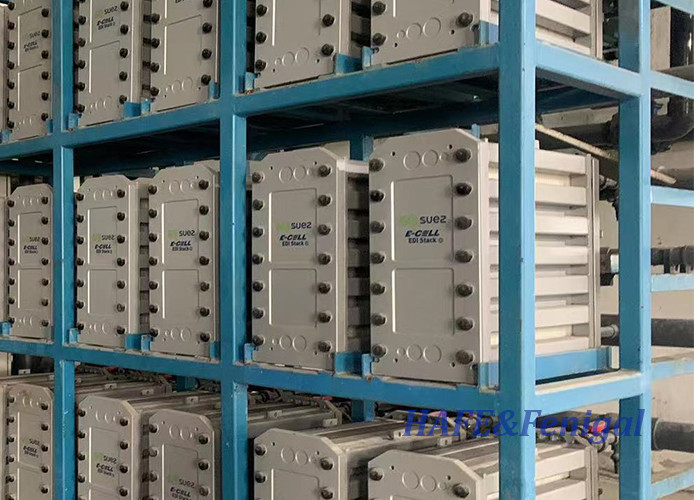

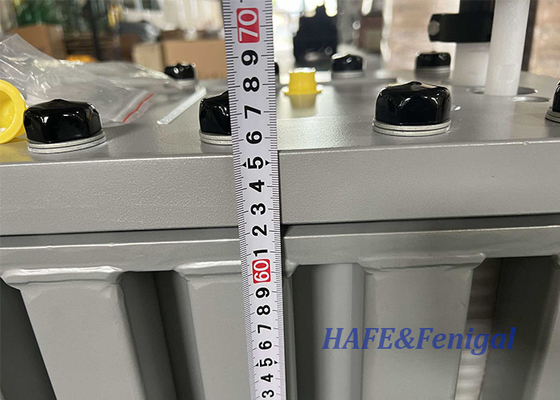

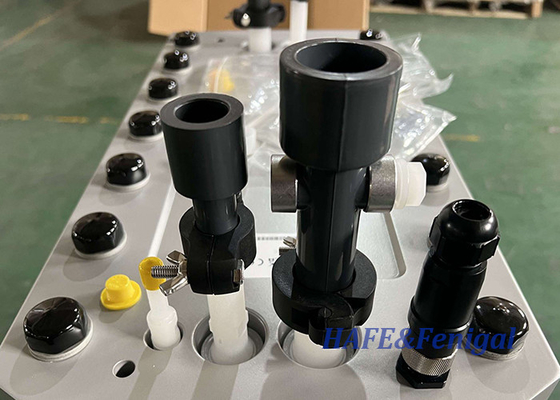

E-Cell*-3X, 1 to 12 Stacks

Base System Features

l ECell3X Systems with 1 to 12 stacks for flow range of 15 – 336gpm (3.4 - 76.3 m3/h)

l Rectifier compatible with 400VAC & 50Hz or 460VAC & 60Hz

l Individual stack current monitoring

l Flow & pressure transmitters, ability to connect to SCADA system

System Options

l Allen Bradley Micrologix PLC with Ethernet

n Includes Veolia 6” Color QuickPanel View HMI

l NEMA 4 Terminal Box - removal of PLC & HMI and all wiring terminated at terminal box

l Standard Instrumentation

n Burkert Paddlewheel flow sensors on Dilute, Concentrate, and Electrode Outlet

n Burkert pressure transmitters on all streams

n Burkert conductivity analyzer and sensor on Dilute Outlet

l Premium Instrumentation

n Rosemount vortex flow transmitters on Dilute and Concentrate Outlet

n Burkert Paddlewheel flow sensor on Electrode Outlet

n Burkert pressure transmitters on all streams

n Rosemount conductivity analyzer and sensor on Dilute Outlet

l Inlet Divert Valve

n Standard Instrumentation: Burkert

n Premium Instrumentation: Rosemount

l ANSI to DIN conversion kits

Notes:
1. Actual performance may vary depending on site conditions. Reference Winflows projection software to verify expected product water quality as well as the resistivity, sodium, and silica performance guarantees that are offered for the design conditions. To obtain boron or other guarantees, contact Veolia.
2. Inlet pressure is determined by the downstream pressure requirements for the product and concentrate streams,the choice of counter-current or co-current operation, and stack pressure drop.
3. At nominal flow and 25°C. Reference Winflows projection software to verify for design conditions.
4. Reference the Winflows projection software and the E-Cell Stack Owner’s Manual to verify feed water specifications for the design conditions.
5. TEA (ppm as CaCO3) - Total Exchangeable Anion, this represents the concentration of all of the anions present in the feed water including contributions from OH-, CO2 and SiO2. Winflows must be used to confirm the feed water TEA is acceptable at the specific applications’ operating conditions. Table value is at minimum flow and maximum temperature.
6. 1.0 ppm as CaCO3 feed water hardness limit applies to standard counter-current flow operation only. Allowable feed water hardness decreases to 0.1 ppm as CaCO3 in co-current flow operation.
7. Allowable silica limit decreases above nominal flow. Allowable silica limit decreases to 0.5 ppm with feedwater hardness above 0.5 ppm as CaCO3.
8. The boron feed level is limited to 0.3 ppm as B whenever there is a silica guarantee requirement or resistivity guarantee requirement above 10 MOhm-cm, as higher boron levels could impact performance. Without these requirements the limit is 1.0 ppm boron.
9. Reverse Osmosis (RO) or equivalent feed water: RO provides EDI feed water that is substantially free of particulate matter, colloidal material and high molecular weight organic substances, which can foul ion exchange media. RO permeate quality is specified since EDI stacks contain packed beds of ion exchange medium that cannot be backwashed/fluidized to remove particulate matter.Systems with an open system between a RO system (or other source) and E-Cell (ex. tank, decarbonator) must be fitted with filters immediately preceding the E-Cell, to protect the E-Cell against contamination with particulate matter. Generally, a 5 µm absolute or 1 µm nominal filterwill be acceptable.
10. APHA - color standard/scale named for the American Public Health Association and defined by ASTM D1209.Veolia Water Technologies
