Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE |
Model Number: | F0045 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiate |
Packaging Details: | Standard Export Carton / Waterproof Transport Case |
Delivery Time: | 15~45 Working Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50 Units/Month |
Light Source: | HMI/Customized | Balloon Material: | Nylon Fabric Treated + Compound |
---|---|---|---|
Balloon Shape: | Ellipse, Sphere, Tube, Cube/Diamond, Cloud, Pad Etc. | Power: | 1000W |
Size: | Customized | Material: | PVC |
Highlight: | 1000W Inflatable Balloon,Customized Inflatable Balloon,RGBT Inflatable Balloon |
Inflatable movie lights are lightweight and portable lighting equipment, usually made of soft materials such as polyvinyl chloride (PVC), which can be inflated internally to allow them to expand into a fixed shape.
Inflatable movie lights are widely used in outdoor, field shooting, party activities and lighting in unconventional places. Due to their lightweight and easy-to-carry nature, inflatable movie lights are often used to provide lighting in outdoor activities. Due to their soft appearance and material, inflatable movie lights are also often used in creatively designed lighting decorations to add interest and uniqueness to venues.
lighting data
Potentiometer - colour temperature – intensity
Set up time 15 min
Inflation type external pump *
power supply Max. entry power 1000 W
Balloon to power supply cable length 10 m I 30 ft
Connector to power supply cable length 2 m I 6 ft
Noise level (remote power supply) 23 dB
Input voltage 90-260 V AC
Input frequency 50-60 Hz
Light source newest generation LED
Colour temperature from 2,700 K to 6,500 K
Output voltage 48 V DC
Temperature range for optimal use -5°C / +40°C
dimensions and packaging
Balloon shape sphere
Balloon dimensions 160 cm I 5 ft in diameter
Weight of the balloon 12 kg I 27 lbs
Average efficiency at 4,400 K 93 lm/W
Nominal power 850 W/1000WLED
Regulation type constant current
Diffusion angle 120° (chart 1.)
CRI - colour rendering index > 95 (chart 2.)
Flicker free 31 kHz
Sphere - Ellipse: HMI | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
1,150 W HMI | Sphere | Ellipse | 2x 575 W / G22 | 6.5’ | 6.5’x8’ | 35’ | 1 | 1 | 30 min | 45’ | 10 mph |
2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 8’ | 8’x10’ | 35’ | 2 | 1 | 35 min | 55’ | 15 mph |
2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 35 min | 55’ | 15 mph |
4.8 KW HMI | Sphere | Ellipse | 4x 1.2 KW / G38 | 12’ | 12’x14’ | 65’ | 5 | 1 | 45 min | 100’ | 20 mph |
5 KW HMI | Ellipse | 2x 2.5 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
8 KW HMI | Ellipse | 2x 4 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
10 KW HMI | Sphere | 4x 2.5 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
16 KW HMI | Sphere | 4x 4 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
ACCESSORIES: | |||||||||
Skirts | |||||||||
Reflectors | |||||||||
Sphere - Ellipse: Tungsten | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 6.5’ | 6’x8’ | 40’ | 1 | 1 | 30 min | 45’ | 10 mph |
4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 8’ | 8’x10’ | 45’ | 2 | 1 | 30 min | 45’ | 15 mph |
5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 8’ | 8’x10’ | 40’ | 2 | 1 | 30 min | 45’ | 15 mph |
5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 30 min | 45’ | 15 mph |
8 KW Tungsten | Sphere | Ellipse | 8x 1 KW / G6.35 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
10 KW Tungsten | Sphere | Ellipse | 2x 5 KW / G38 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
15 KW Tungsten | Sphere | Ellipse | 2x 5 KW | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
+ 2x 2.5 KW / G38 | |||||||||
20 KW Tungsten | Sphere | Ellipse | 4x 5 KW / G38 | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
Sphere - Ellipse: Hybrid | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 8’ | 8’x10’ | 35’ | 2 | 1 | 40 min | 45’ | 15 mph |
Hybrid | + 1x 1.2 KW G38 | ||||||||
3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 10’ | 10’x12’ | 45’ | 3 | 1 | 40 min | 45’ | 15 mph |
Hybrid | + 1x 1.2 KW G38 | ||||||||
7.4 KW | Sphere | Ellipse | 2x 2.5 KW | 12’ | 12’x14’ | 60’ | 5 | 1 | 55 min | 100’ | 20 mph |
Hybrid | + 2x 1.2 KW G38 | ||||||||
8.4 KW | Ellipse | 6x 1 KW | 8.8’x12’ | 40’ | 4 | 1 | 40 min | 55’ | 15 mph |
Hybrid | + 2 x 1.2 KW G6.35 + G38 | ||||||||
9.6 KW | Ellipse | 6x 1 KW | 12’x14’ | 50’ | 5 | 1 | 55 min | 100’ | 20 mph |
Hybrid | + 3x 1.2 KW G6.35 + G38 | ||||||||
18 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 3x 4 KW G6.35 + G38 | ||||||||
18 KW | Sphere | 2x 5 KW | 16.5’ | 80’ | 10 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 2x 4 KW G38 | ||||||||
19 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 1x 5 KW | ||||||||
+ 2x 4 KW / | |||||||||
G6.35 + G38 | |||||||||
20 KW | Ellipse | 8x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
Hybrid | + 3x 4 KW | ||||||||
G6.35 + G38 | |||||||||
Sphere - Ellipse: Sodium / Mercury | |||||||||
Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
tanks | |||||||||
(291 cft) | |||||||||
4 KW | Sphere | 4x 1 KW / | 14’ | 60’ | 5 | 1 | 65 min | 100’ | 15 mph |
Sodium / Mercury | Mogul E39 |

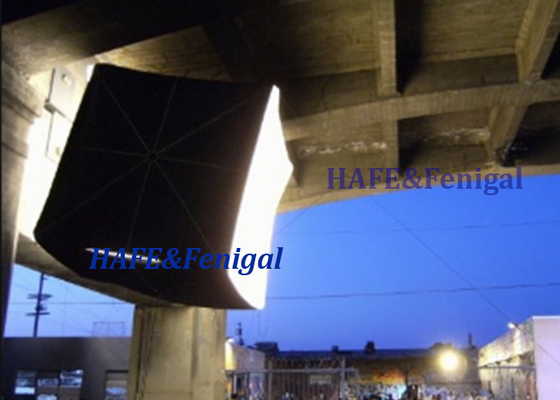

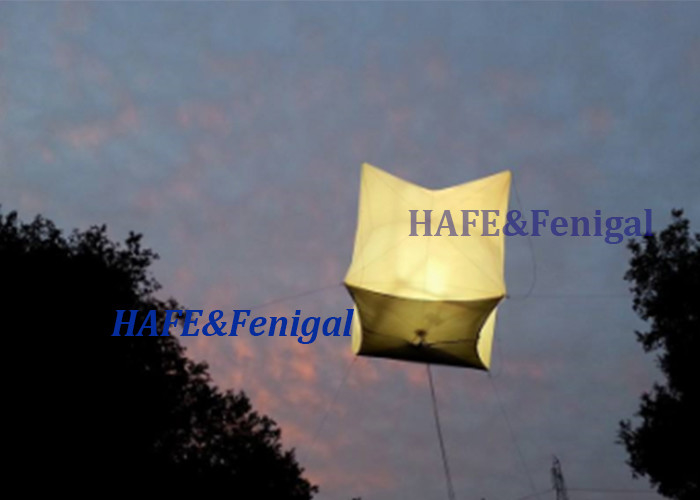

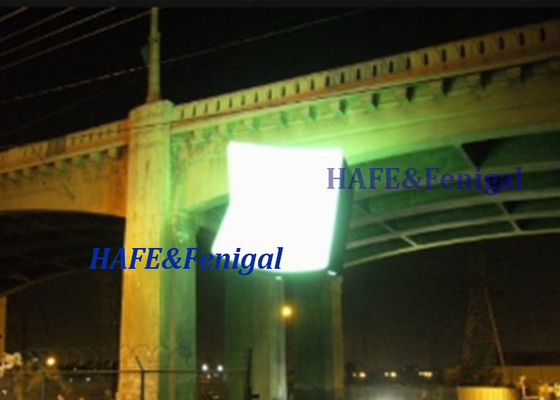

Balloon lights (also called lighting balloons) are a specialized type of luminaire used primarily for lighting in the motion picture industry, night highway construction, incident management, and public security applications such as police checkpoints.
The lighting balloons are widely used in set lighting (fill or main) as a high quality softened light source with its high pwer high output and unmatchable performance. The lighting balloons are able to create amazing lighting that a conventional lighting could unsatisfactorily to deliver.
At a location where rigging is not possible or practical, a large area of diffused man-made soft light needed, lighting balloons may be a better choice.
And we started these lighting balloons for film and tv industy from 2017. And we hope our lighting balloons could bring you joys and successes.
Daylight ranges are compatible with international brand electronic ballasts. Economic flicke-free EBs are also available.
EB pictures at the courtesy of ARR:575/1200W 1200/1800W 2.5/4kW
Our daylight range lighting balloons are built in such a way that they could work with your Arri electronic ballasts to form a set light wanted. Our veam connector receptable box gives it a convenience for different comnbinations of power.
POWER GEMS Also compatible to Power Gems electronic ballast from 575 till 4000w matress
