Ultrafiltration (UF) is a pressure-driven membrane separation process that efficiently removes suspended solids and solutes of high molecular weight, retaining them in the retentate. The hollow-fiber PVDF membranes employed in UF Modules excel in performance, mechanical strength, and membrane area, while minimizing energy and chemical consumption. With an enhanced permeability of up to 35% compared to previous generations, these modules offer unparalleled productivity. Specifically, the UF membranes reject particulates larger than 0.03 microns, enabling high removal rates of bacteria, viruses, colloids, silt, and other contaminants.
OTHER ATTRIBUTES
| Applicable Industries |
Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Other, Textile, Water Treatment |
| Showroom Location |
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Romania, Bangladesh, South Africa, Kazakhstan, Nigeria, Japan, Malaysia, Australia, Shanghai |
| Video outgoing-inspection |
Provided |
| Machinery Test Report |
Provided |
| Marketing Type |
New Product 2021 |
| Warranty of core components |
1 Year |
| Core Components |
Membrane, Housing |
| Place of Origin |
Shanghai, China |
| Warranty |
1 Year |
| Productivity |
100L/Hour |
| Weight (KG) |
45 kg |
| Condition |
New |
| Brand Name |
Dupont |
| Material |
Polymer |
| Weight |
Depends on capacity |
| Size |
Depends on capacity |
| Power |
0.5~5.5 |
| Usage |
Wastewater Treatment |
| Type |
UF Membrane |
| Size |
Custom |
| Brand |
Dupont |
| Product name |
SFP-2660 |
| Function |
Filtration System |
| Material |
Polymer |
| Application |
Water Purification |
| Keywords |
UF Water Filtration |
| After Warranty Service |
Online Video Technical Support |
Please see below for detailed parameters
PACKAGING AND DELIVERY
| Packaging Details |
Cardboard box packaging. |
| Port |
Shanghai |
| Selling Units: |
Single item |
| Single package size: |
190X30X30 cm |
| Single gross weight: |
50.000 kg |
Lead Time
| Quantity (units) |
1 - 100 |
> 100 |
| Lead time (days) |
15 |
To be negotiated |
Application Scenario
UF Membranes are the ideal choice for removing suspended solids from liquids, providing superior reduction of silt, sand, dirt, and other sediments. These membranes can be easily integrated into various equipment used for wastewater treatment, making them versatile and adaptable. Common applications for UF Membranes span across industries like chemical and pharmaceutical manufacturing, food and beverage processing, as well as waste water treatment, demonstrating their widespread utility and reliability.
For application cases, please click:https://www.fgwater.com/Industries/

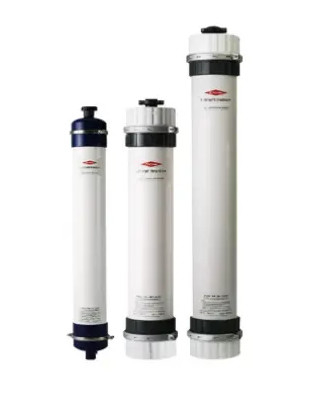

Figure 1: SFP and SFD 2660 (6-inch diameter)
Figure 2
| Properties |
|
Length |
|
|
Diameter |
Width |
|
| Units |
L |
L1 |
L2 |
L3 |
D |
W1 |
W2 |
| SI (mm) |
1860 |
1500 |
1610 |
1710 |
165 |
125 |
250 |
For detailed parameters, please visit:
