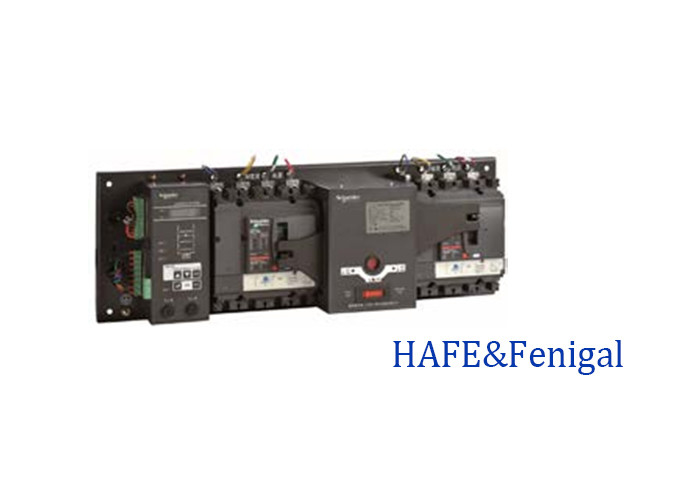

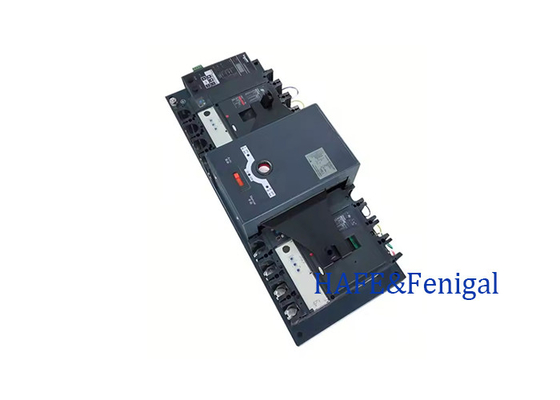

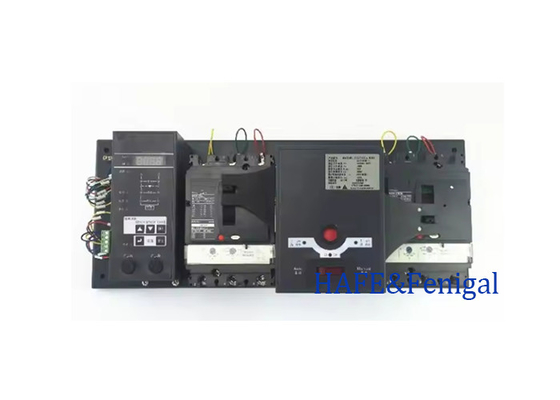

Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A

Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A

  • Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A
  • Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A
  • Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A
Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A
Product Details:
Place of Origin: china
Brand Name: Fenigal
Certification: CE
Model Number: Fenigal
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: standard export packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 60000 Unit/Units per Month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (160)
Ultrafiltration Membrane Modules (72)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (144)
Moon Balloon Light (145)
Tripod LED Balloons (122)
Inflatable Light Tower (76)
Terminal Block Accessories (6)
Detailed Product Description
Rated Insulation Voltage (V): 440 Rated Impulse Withstand Voltage (kV): 6
Rated Operation Voltage ( ): 50HZ Number Of Poles: 3/4
Electrical Endurance (*): AC50Hz 440V-In Operation Mode: Intermittent Operation
Highlight:

Class PC Automatic Transfer Switch

,

Overcurrent Release Automatic Transfer Switch

,

100-630A Automatic Transfer Switch

Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A



Selection notes
Class PC WATSN series products are mainly used to carry and withstand short-circuit
current.

Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A 0



Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A 1Model and specification Electrical characteristics determined according to IEC 60947-6-1 & GB 14048.11 WATSN-100 WATSN-160 WATSN-250 WATSN-400 WATSN-630
Number of poles 3, 4 3, 4 3, 4 3, 4 3, 4
Controller
Type A ■ ■ ■
Type B ■ ■ ■ ■ ■
Type D ■ ■ ■ ■ ■
Actuation component       NSX-NA
Conventional thermal current (A) Ie 60℃   100 160 250 400 630
Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A 2 Rated insulation voltage (V) Ui     690 690 690 690 690
Rated impulse withstand voltage (kV) Uimp     8 8 8 8 8
Rated operation voltage (V) Ue AC50Hz   400 400 400 400 400
Making capacity Icm (kA peak)     17 17 17 52.5 52.5
Rated short-time withstand current Icw (kA effective) 30mS   10 10 10 - -
    60ms   - - - 25 25
With elf-protection function (*)     Yes Yes Yes Yes Yes
Isolation function       ■ ■ ■ ■ ■
Pollution degree       Ⅲ Ⅲ Ⅲ Ⅲ Ⅲ
Real closing indication       Yes Yes Yes Yes Yes
Mechanical endurance (**)     12000 12000 12000 12000 12000
Electrical endurance (**) AC50Hz 440V-In 6000 6000 6000 6000 6000
Operation mode Intermittent operation     ■ ■ ■ ■ ■
Control characteristics
Minimum contact transfer time S     1.5 1.5 1.5 2 2
lnstallation and connection accessories
Fixation/panel front connection       ■ ■ ■ ■ ■
Circuit breaker phase partition (***)     Optional Optional Optional Optional Optional
Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A 3Monitoring and indication auxiliary device
Position feedback signal       Optional Optional Optional Optional Optional
Fire protection linkage function       Optional Optional Optional Optional Optional

Notes: (*) Trip under surge of high short-circuit current (**) Maximum expected value with proper maintenance (***) Safety accessories, non-standard configuration








Notes:
Controller types include: A - End type; B - Basic Type; D- Smart type
Conventional thermal current: 32, 40, 63, 80, 100, 160, 250, 400, 630
Selectable number of poles: 3, 4 (all series)
Electric device Class: PC - without short-circuit and overload protection
Operation modes: R - Automatic change and automatic recovery; S - Automatic  change without automatic recovery; I - Mutual standby
Additional functions: X- Fire protection linkage; F- Feedback signal (position  feedback signal); I - Current monitoring module (only available for Type D controller)
*: For INT series actuators, there is no need to add the text marked by "*" and the following ".".
**: Two installation methods can be provided: Device-mounted and panel-mounted.
Please add a note if panel installation is required.
