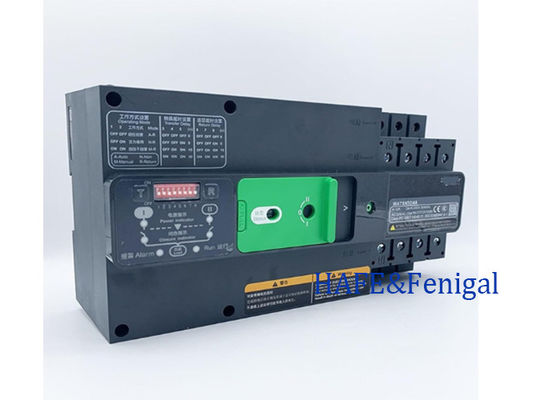

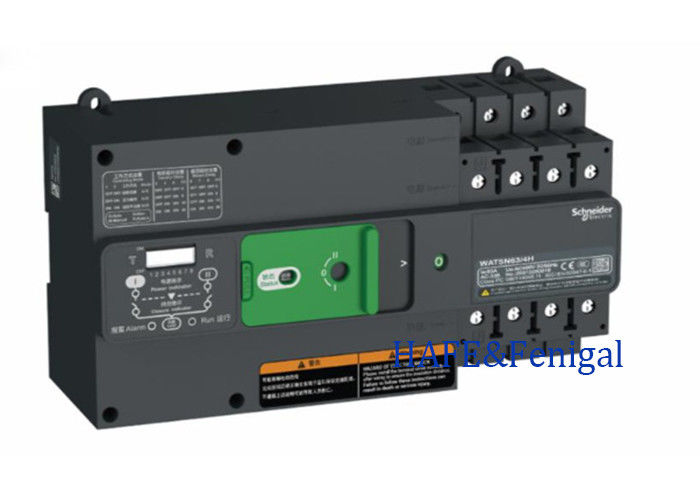

50/60Hz Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A
Product Details
| Rated Insulation Voltage (V): | 440 | Rated Impulse Withstand Voltage (kV): | 6 |
|---|---|---|---|
| Rated Operation Voltage ( ): | 50HZ | Number Of Poles: | 3/4 |
| Electrical Endurance (*): | AC50Hz 440V-In | Operation Mode: | Intermittent Operation |
| Highlight |
Overcurrent Release PC Automatic Transfer Switch,100-630A PC Automatic Transfer Switch,50/60Hz PC Automatic Transfer Switch |
||
Product Description
50/60Hz Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A
| Frame | 100 | 160 | 250 | 630 | |
| Rated operating current (A) Ie AC-33B | 63 | 160 | 250 | 630 | |
| Number of poles | 2,3,4 | 2,3,4 | 2,3,4 | 3,4 | |
| Operating positions | 3 | 3 | 3 | 3 | |
| Control types | A,R | A,R | A,R | A,R | |
| Electrical features determined by GB/T 14048.11 (IEC 60947-6-1) | |||||
| Rated insulation voltage (V) | Ui | 690 | 800 | 800 | 800 |
| Rated impulse withstand voltage (V) | Uimp | 6000 | 8000 | 8000 | 8000 |
| Rated operating voltage (V) | Ue AC50/60Hz | 2P:220-240V3P, 4P:380-415V | 2P:220-240V3P, 4P:380-415V | 2P:220-240V3P, 4P:380-415V | 380-415V |
| Rated operating frequency (Hz) | f | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated short-time withstand current (kA/60ms) | Icw | 5 | 10 | 10 | 12.6 |
| Rated short-circuit making capacity (kA) | Icm | 7.65 | 17 | 17.24 | 25.55 |
| Peak Current (kA) | Ipeak | 16.24 | 20.84 | 20.04 | 33.91 |
| Mechanical durability | 8000 | 10000 | 10000 | 10000 | |
| Electrical durability | 6000 | 6000 | 6000 | 6000 | |
| Installation and connection | |||||
| Installation method | Rail/base plate | Rail/base plate | Base plate | Base plate | |
| Wiring method | Cable | Flat-fading bars | Flat-fading bars | Flat-fading bars | |
| Auxiliary device | |||||
| Off padlock | ■ | ■ | ■ | ■ | |
| Position feedback | □ | □ | ■ | ■ | |
| Terminal cover | □ | □ | - | - | |
| Rail buckle | □ | □ | - | - | |
| Terminal insulation cover | ■ | ■ | - | - | |
| Interphase insulating screen | - | - | □ | □ | |
Notes: ■ Standard □ Optional(1) default 230V/400V
Product Highlights
50/60Hz Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A Class PC • Transfer switch equipment based on mechanical switching devices, that do not need electrical power to hold the main contacts open or closed and capable of making, carrying, and breaking currents ...
