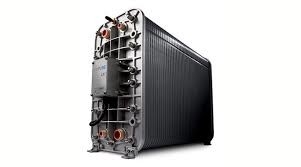

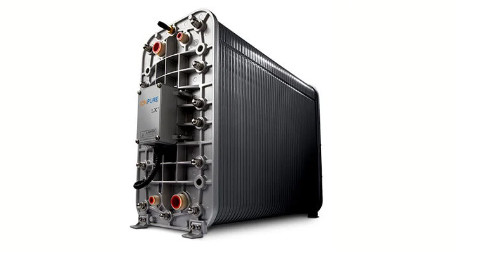

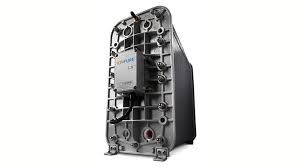

The Ionpure LX-Z-5 modules, featuring enhanced chlorine tolerance, are meticulously designed for an extensive spectrum of industrial deionized water applications and markets. These include boiler makeup water for power plants, pharmaceutical pure water, water for hydrocarbon and chemical processing (HPI/CPI), and other high-purity requirements.
IONPURE CEDI modules supply a continuous stream of high-purity water, eliminating the need for downtime or chemical regeneration as in conventional deionization approaches.
LX-Z Series Characteristics:
• Exhibit significantly lower operating costs compared to conventional ion exchange.
• Generate mixed-bed quality deionized water without the employment of chemicals.
• Offer continuous production rather than batch production, maintaining consistent quality.
• A double O-ring seal ensures leak-proof operation.
• Do not require acid/caustic, neutralization systems, or exchangeable DI tanks.
• Feature resin-filled concentrate for optimal performance and ease of operation.
• Enable continuous operation.
• Accept up to 0.05 ppm (total CI2) feed.
• Provide a wide range of flow, ranging from 0.22 m3/h (1 gpm) to 7.67 m3/h (33.8 gpm) per module.
• The wetted materials of construction conform to NSF 14 and NSF 61 requirements.
SPECIFICATIONS
| Manufacturer |
Ionpure |
| Series |
LX-Z |
| Model Number |
IP-LXM45Z-5 |
| Part Number |
W3T17314 |
| Description |
Ordering Part Number - W3T17314
Model Number - IP-LXM45Z-5
Product Flow min. gpm - 2.57 gpm
Product Design Flow Rate gpm - 5.1-7.67 gpm |
| Shipping Weight |
205 lbs |
QUALITY ASSURANCE STANDARDS
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.
IONPURE LX-Z module has the following significant advantages:
* Wide flow range, single module flow rate from 0.22 cubic meters/hour (1 gallon/minute) to 10 cubic meters/hour (44 gallons/minute), meeting the needs of various application scenarios.
* Significantly lower operating costs compared to traditional ion exchange methods.
* No need to use chemicals to generate mixed-bed quality deionized water.
* Achieve continuous production rather than batch processing to ensure stable and reliable water quality.
* Adopt double O-ring sealing design to ensure leak-free operation.
* No acid, base, neutralization system or replaceable deionized water tank required.
* Filled with premium resin for optimal performance and ease of operation.
* Support continuous operation to ensure uninterrupted water supply.
* Can handle incoming water up to 0.05ppm (total chloride ion content).
* The material of wet parts complies with NSF® 14 and NSF® 61 standards, which is safe and reliable.
About the operating environment of the IONPURE LX-Z module:
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.
| TYPICAL MODULE PERFORMANCE |
| Operating Parameters |
|
| Recovery |
90–95% |
| DC Voltage |
0–400 |
| DC Amperage |
1.0–6.0 |
| Product Water Quality |
|
| Product Resistivity |
Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal |
90–99%, depending on feed conditions |
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.
| FEED WATER SPECIFICATIONS |
| Feed Water Conductivity Equivalent, including CO2 and Silica |
< 40 μS/cm |
| Feed Water Source |
RO permeate |
| Temperature |
5–45˚C (41–113˚F) |
| Inlet Pressure |
1.4–6.9 bar (20–100 psig) |
| Maximum Total Chlorine (as Cl2) |
< 0.05 ppm |
| Iron (as Fe) |
< 0.01 ppm |
| Manganese (as Mn) |
< 0.01 ppm |
| Sulfide (S2-) |
< 0.01 ppm |
| pH |
4–11 |
| Total Hardness (as CaCO3) |
< 1.0 ppm |
| Dissolved Organics (TOC as C) |
< 0.5 ppm |
| Silica (SiO2) |
< 1.0 ppm |
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
