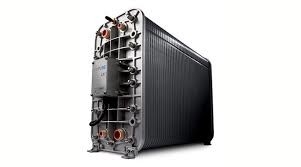

The VNX module was developed to lower the cost associated with constructing high flow rate CEDI systems and to simplify the selection of a clean, environmentally harmonious technology instead of chemically regenerated mixed bed ion exchange systems. Higher flow rate CEDI modules make piping and system assembly more effortless by reducing the quantity of modules necessary.
The VNX modules feature a built-in support system. This enables intelligent skid design and ensures minimum skid cost.

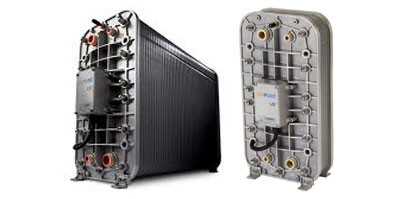

The Ionpure LX modules are precisely designed for industrial applications. Ionpure modules consistently offer maximum reliability and exceptional performance for power, HPI/CPI, general electronics, food and beverage, and laboratory applications, with no regeneration downtime.
The Ionpure MX Series CEDI modules provide superior performance for laboratory and lower flow process applications. MX modules are an ideal addition for light industrial, commercial, and laboratory RO systems that are wall-mounted or housed in a cabinet.
| Specifications |
| Brand |
Evoqua |
| Replaced by |
IP-LXM45X-4 |
| Type |
CEDI |
| Feed Water Conductivity µS/cm |
40 |
| Product Resistivity MΩ/cm |
16 |
| Total Hardness ppm |
1.0 |
| Inlet Pressure bar |
7 |
| Inlet Pressure psi |
100 |
| Max Temperature °C |
45 |
| Max Temperature °F |
113 |
| pH range |
4-11 |
| Flow m3/h |
5.1 |
| Flow rate gpm/ft2 |
22.5 |

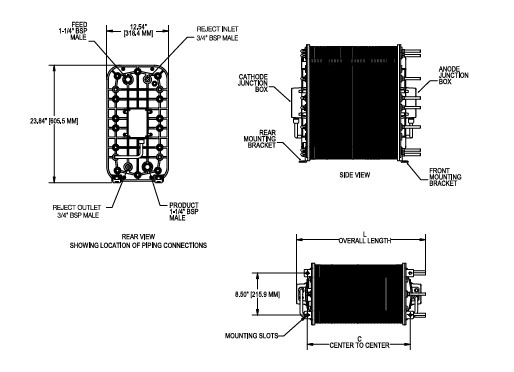

Dimensions / Weights |
| Length in inch |
35.72 |
| Length in cm |
90.7 |
| Shipping Weight kg |
145 |
| Shipping Weight lbs |
320 |
| Application |
Industrial / Power |
QUALITY ASSURANCE STANDARDS
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.

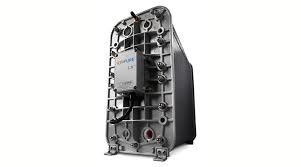

IONPURE LX-Z module has the following significant advantages:
* Wide flow range, single module flow rate from 0.22 cubic meters/hour (1 gallon/minute) to 10 cubic meters/hour (44 gallons/minute), meeting the needs of various application scenarios.
* Significantly lower operating costs compared to traditional ion exchange methods.
* No need to use chemicals to generate mixed-bed quality deionized water.
* Achieve continuous production rather than batch processing to ensure stable and reliable water quality.
* Adopt double O-ring sealing design to ensure leak-free operation.
* No acid, base, neutralization system or replaceable deionized water tank required.
* Filled with premium resin for optimal performance and ease of operation.
* Support continuous operation to ensure uninterrupted water supply.
* Can handle incoming water up to 0.05ppm (total chloride ion content).
* The material of wet parts complies with NSF® 14 and NSF® 61 standards, which is safe and reliable.
About the operating environment of the IONPURE LX-Z module:
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.
| TYPICAL MODULE PERFORMANCE |
| Operating Parameters |
|
| Recovery |
90–95% |
| DC Voltage |
0–400 |
| DC Amperage |
1.0–6.0 |
| Product Water Quality |
|
| Product Resistivity |
Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal |
90–99%, depending on feed conditions |
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.
| FEED WATER SPECIFICATIONS |
| Feed Water Conductivity Equivalent, including CO2 and Silica |
< 40 μS/cm |
| Feed Water Source |
RO permeate |
| Temperature |
5–45˚C (41–113˚F) |
| Inlet Pressure |
1.4–6.9 bar (20–100 psig) |
| Maximum Total Chlorine (as Cl2) |
< 0.05 ppm |
| Iron (as Fe) |
< 0.01 ppm |
| Manganese (as Mn) |
< 0.01 ppm |
| Sulfide (S2-) |
< 0.01 ppm |
| pH |
4–11 |
| Total Hardness (as CaCO3) |
< 1.0 ppm |
| Dissolved Organics (TOC as C) |
< 0.5 ppm |
| Silica (SiO2) |
< 1.0 ppm |
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
